| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ASTM, SGS, EN, ISO, GB, CE, BV |
| Model Number: | 55×6 |
| Minimum Order Quantity: | 2000 Square Meters |
| Price: | USD 2.35-4.5Square Meter |
| Packaging Details: | standard packed in woven bag and tight belt, rolling size, width: 1-6m, length: 20-55m |
| Delivery Time: | 7 Days |
| Payment Terms: | D/P, Paypal, T/T, Western Union, L/C, D/A, MoneyGram |
| Supply Ability: | 34900 Square Meters per Day |
| Material: | High Quality Geotextile, Bentonite And HDPE (geomembrane) | Product Name: | Cut-off Walls Waterproof Geotextile Clay Liner Seepage Control 55×6 GCL |
|---|---|---|---|
| Function: | Antiseepage, Strengthen, Isolation, PROTECTION | Size: | 55m*6m |
| Application: | Recreational Ponds,cut Off Wall, Golf Course Ponds, Stormwater Management Ponds., Anhydrous Ammonia Tank, Artificial Landscape Engineering, Artificial Water Features Project, | MOQ: | 1000 Square Meters |
| Color: | Black And White | Package: | Woven Bag, Waterproof Film |
| High Light: | HDPE Geotextile Clay Liner,Waterproof Geotextile Clay Liner,Geotextile Clay Liner Seepage Control |
||

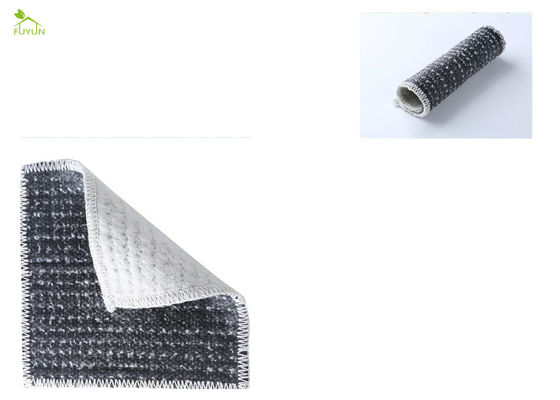

Cut-off Walls Waterproof Geotextile Clay Liner Seepage Control 55×6 GCL
Quick Detail:
component: geotextile, sodium bentonite and HDPE (geomembrane)
size: 55*6m
function: antiseepage, strengthen, isolation
application: cut off wall, anhydrous ammonia tank, artificial landscape engineering, artificial water features project
Product Description:
The GeosyntheticClayLiner is a high-tech, green, composite waterproof material. It is made of two layers of geosynthetics sandwiched between two layers of high quality natrium-based bentonite granules by special needling method. Sodium bentonite granule is in the middle, which is made of natural clay mineral inorganic materials, has high expansibility and high water absorption capacity, low water permeability during wetting (vertical permeability coefficient is no more than ax10-9cm/s), and mainly plays the role of anti-seepage. The product also has other titles, such as bentonite waterproof pad, bentonite anti-seepage blanket, bentonite waterproof felt, bentonite anti-leakage pad, bentonite blanket, bentonite pad.
The material is typically anchored in a trench around the perimeter of a containment basin to provide the required pullout resistance. Bentoliner GCL should be placed in the trench extending down the inside wall face and along the entire trench floor, secured by the controlled placement and compaction of backfill into the trench prior to placing cover soil on the slopes. GCL is ideal for containment applications and provides a cost-effective engineered solution for clients and consultants. It is well proven to save money against natural clay liner options.
FUYUN GCL can be constructed under the negative temperature (-20℃), while the traditional waterproof material cannot, because bentonite is inorganic material having better durability than that of organic waterproof material.
Technical Parameter:
| No. | Item | Technical Index | |||
| GCL-NP | GCL-OF | GCL-AH | |||
| 1 | GCL (g/㎡) | ≥4000 and not less than the specified value | ≥4000 and not less than the specified value | ≥4000 and not less than the specified value | |
| 2 | Swelling Index of Bentonite (ml/2g) | ≥24 | ≥24 | ≥24 | |
| 3 | Absorption of Blue ( g/100g) | ≥30 | ≥30 | ≥30 | |
| 4 | Tensile Strength (N/100mm) | ≥600 | ≥700 | ≥600 | |
| 5 | Elongation at Maximum Load % | ≥10 | ≥10 | ≥8 | |
| 6 | Peel Strength(N/100mm) | Non Woven and Woven Fabrics | ≥40 | ≥40 | / |
| PE Film and Non Woven Fabrics | / | ≥30 | / | ||
| 7 | Permeability Coefficient (m/s) | ≤ 5.0x10^-11 | ≤ 5.0x10^-12 | ≤ 1.0x10^-12 | |
| 8 | Hydrostatic Pressure Resistance | 0.4MPa, 1h, no seepage | 0.6MPa, 1h, no seepage | 0.6MPa, 1h, no seepage | |
| 9 | Filtration Loss (ml) | ≤ 18 | ≤ 18 | ≤ 18 | |
| 10 | Durability of Bentonite | ≥20 | ≥20 | ≥20 | |
Application:
Installing Note:
1, Before GCL construction, foundation should be inspected, the foundation should be rammed flat, no potholes or water, no gravel or roots or other sharp objects.
2, In the process of handling and construction, GCL should be to avoid vibration and impact, to avoid large degree of bending.
3. After installing and acceptance of GCL, backfill shall be carried out as soon as possible. If it is in conjunction with the use of HDPE geomemes, geomemes shall be installed and welded in time to prevent them from being wet or broken by rain.
Advantage:
(1) A permanent waterproof performance, and excellent water seepage performance, impermeability hydrostatic pressure up to 1.0MPa above, permeability coefficient 5 *10-9cm / s.
(2) Has all the characteristics of geotextile material, such as separation, reinforcement, protection, filtration, simple construction and unrestricted construction environment temperature below 0 0 C also be construction.
(3) Easy to repair; Even after water (seepage) end of construction, such as waterproof layer accident damage, as long as the site of the damage to be a simple fix, can ever regain perfect waterproof performance.
(4)green: Bentonite is a natural inorganic material, harmless, non-toxic,no particular impact on the environment, with good environmental performance.
(5) simple construction period is short: and other waterproof materials, the construction is relatively simple, does not require heating and paste.
(6) Integrated waterproof materials and objects: When sodium bentonite water, with 20-28 times the capacity expansion, even if the concrete structure vibration and settlement, bentonite GCL can repair cracks in the concrete surface less than 2mm.
Package:
products will be well woven and belt packed, and we gurantee the product good before the customer receive. Besides, products can be packed as customer's special requirement.
Delivery:
Product will be loaded carefully to make sure it can be well received.
Supply Ability:
25 tons per 8hrs.
