| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | SONCAP, ISO, BV, ASTM, SASO, GB |
| Model Number: | 500/0.6 |
| Minimum Order Quantity: | 3000 Square Meters |
| Price: | USD 1.28-4.0 Square Meter |
| Packaging Details: | Packed as Rolls in Woven Bag, Width 2-6m, Length 50-150m |
| Delivery Time: | 5 days |
| Payment Terms: | Western Union, L/C, T/T, D/A, D/P, MoneyGram, Paypal |
| Supply Ability: | 26 Tons per Day |
| Length: | 2000m | Width: | 6m |
|---|---|---|---|
| Product Name: | Dock Engineering Impermeable 0.2mm Composite Geotextile Membrane Liners | Roll Length: | 100m |
| Weight: | 1200g/m2 | Thickness: | 0.2mm |
| High Light: | Dock Engineering Composite Geomembrane,Impermeable Geotextile Membrane,Composite Geotextile Membrane |
||

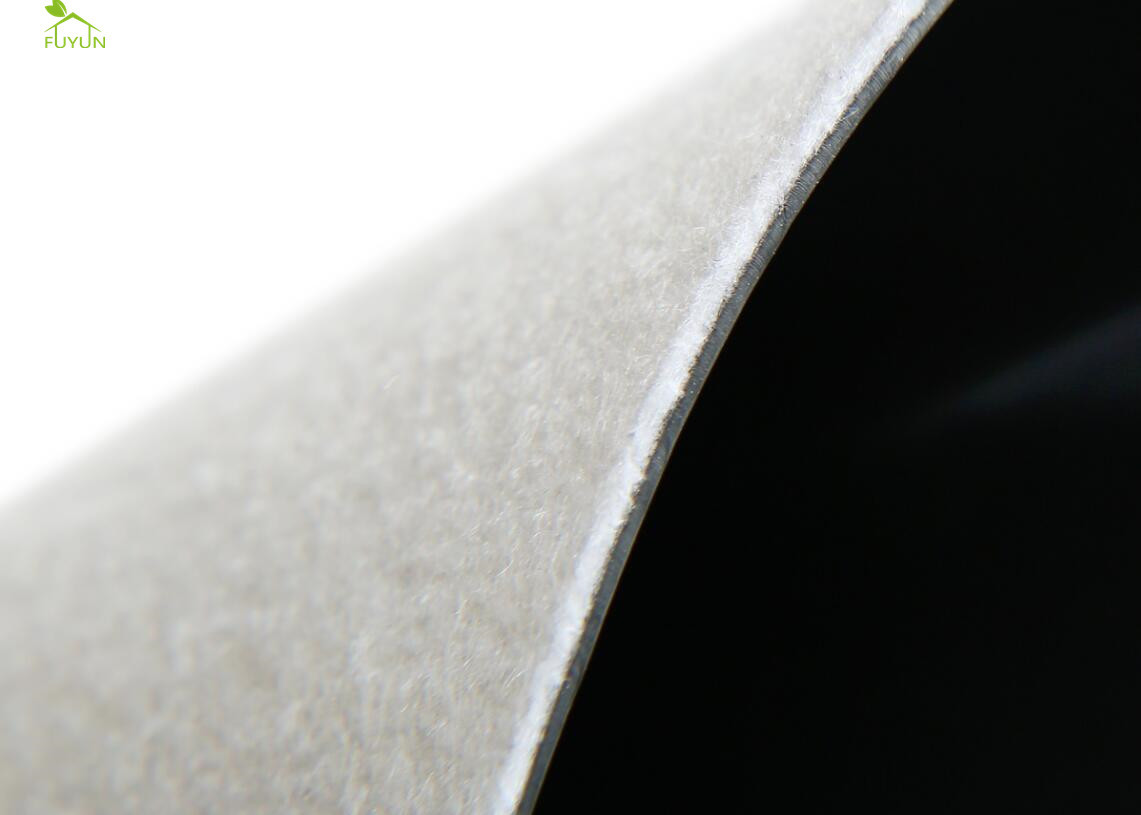

Dock Engineering Impermeable 0.2mm Composite Geotextile Membrane Liners
Quick Detail:
material: PE non woven fabric, HDPE, PVC
weight: 1200g/㎡
thickness: 0.2mm
function: waterproof, anti-seepage, water drainage, isolation, filtering, protect, impermeable
advantage: anti-aging, high tensile strength, corrosion resistance, long life
Product Description:
Composite geomembrane includes: non woven geotextiles and geomembrane impermeable material, which is generally includes
The first one is the lower and upside sides of geomembrane are composite with geotextile, and the second one is that one side (lower or upper side) of geomembrane is composite with geotextile. Because the middle waterproof layer (geomembrane) of composite geomembrane is protected by non woven geotextile, it can meet the requirement of municipal construction, the water conservancy, subway, transportation, tunnel and other civil engineering project needs. Due to the polymer material and production process to add the aging proof layer, it can be used in the extreme temperature environment.
Composite geomembrane can be used for anti-seepage of various underground waterproof project, water conservancy projects, including artificial lake seepage control project, landscape lake seepage prevention project, river seepage prevention project, dike seepage prevention project, river treatment project, canal seepage prevention project etc.
Product Specification:
Composite Geomembrane with Nonwoven Geotextile
Specification:
1. One piece of geotextile and one piece of membrane;
Weight of base geotextile: 100-1000g/m2;
Thickness of geomembrane: 0.1-1.5mm.
2. Two piece of geotextiles and one piece of membrane;
Weight of base geotextile: 80-600g/m2
Thickness of geomembrane: 0.2-1.5mm.
3. One piece of geotextile and two pieces of membranes;
Weight of base geotextile: 100-1000g/m2;
Thickness of geomembrane: 0.1-0.8mm.
4. Multi-layers:Weight of base geotextile: 100-1000g/m2;
Thickness of geomembrane: 0.1-0.8mm.
Technical Parameter:
| Weight(g/㎡) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |
| PE CG Thickness(mm) | 0.20-0.40 | 0.30-0.65 | ||||||
| Common Specs | 1-geotextile-1-geomembrane(g/㎡) | 150/0.25 | 200/0.3 | 300/0.3 | 300/0.4 | 300/0.5 | 400/0.5 | 400/0.6 |
| 2-geotextile-1-geomembrane(g/㎡) | 100/0.2/100 | 100/0.3/100 | 50/0.3/150 | 200/0.3/200 | 200/0.4/200 | 200/0.5/200 | 50/0.5/250 | |
| Quality Deviation per Unit Area(%)≤ | -10 | |||||||
| Fracture Strength(KN/m) ≧ | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | |
| Break Elongation(%) | 30-100 | |||||||
| Tear Strength(KN) ≧ | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 | |
| CBR Breakout Force(KN) ≧ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 | |
| Vertical Permeability Coefficient(cm/s) ≤ | 10-13 | |||||||
| Hydrostatic Pressure Resistance (Mpa)≧ | 0.4-0.6 | 0.6-1.2 | ||||||
| 1. PE CG Thickness(mm) 0.2-0.85mm | ||||||||
| 2.According to the technical requirements of the demander, the welding edge of composite geomembrane can be reserved or not | ||||||||
Advantage:
1)Geotextile can make the water flow easily, and form a drainage channel in the soil, and then make the liquid and gas out of the soil.
2)Make use of its pulling resistance and deformation resistance that can strength the soil to reinforce the stability of the
construction structure and improve the soil’s quality.
3) Make the focus proliferate, deliver and decompose efficiently and prevent the soil from destruction from outside factor.
4) Prevent the top and bottom layer’s gravel, soil and concrete from mixer.
Package:
well package as rolls with core pipe, 2-layer woven bags and strengthened belt for unloading convenience and protectiong.
Delivery:
Delivery product will be loaded carefully for product protection. 20GP Container can load around 19.5 tons, 40HQ 25.5 tons
Supply Ability:
25 Tons Per 8hrs
Factory Show:
Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
