|Place of Origin:||Hefei,China|
|Certification:||ASTM, SGS, EN, ISO, GB, CE, BV|
|Minimum Order Quantity:||2000 Square Meters|
|Price:||USD 2.35-4.5Square Meter|
|Packaging Details:||standard packed in woven bag and tight belt, rolling size, width: 1-6m, length: 20-55m|
|Delivery Time:||7 Days|
|Payment Terms:||D/P, Paypal, T/T, Western Union, L/C, D/A, MoneyGram|
|Supply Ability:||34900 Square Meters per Day|
|Material:||Geotextile, Bentonite And HDPE (geomembrane)||Product Name:||Rare Metal Ore Engineering Waterproof Isolation Geosynthetic Clay Liner Blanket 55×6 GCL|
|Function:||Antiseepage, Strengthen, Isolation, PROTECTION||Size:||55m*6m|
|Application:||Anhydrous Ammonia Tank, Artificial Landscape Engineering, Artificial Water Features Project,||MOQ:||2000 Square Meters|
Waterproof Geosynthetic Clay Liner,
Isolation Geo Clay Liner,
Anhydrous Ammonia Tank Geo Clay Liner

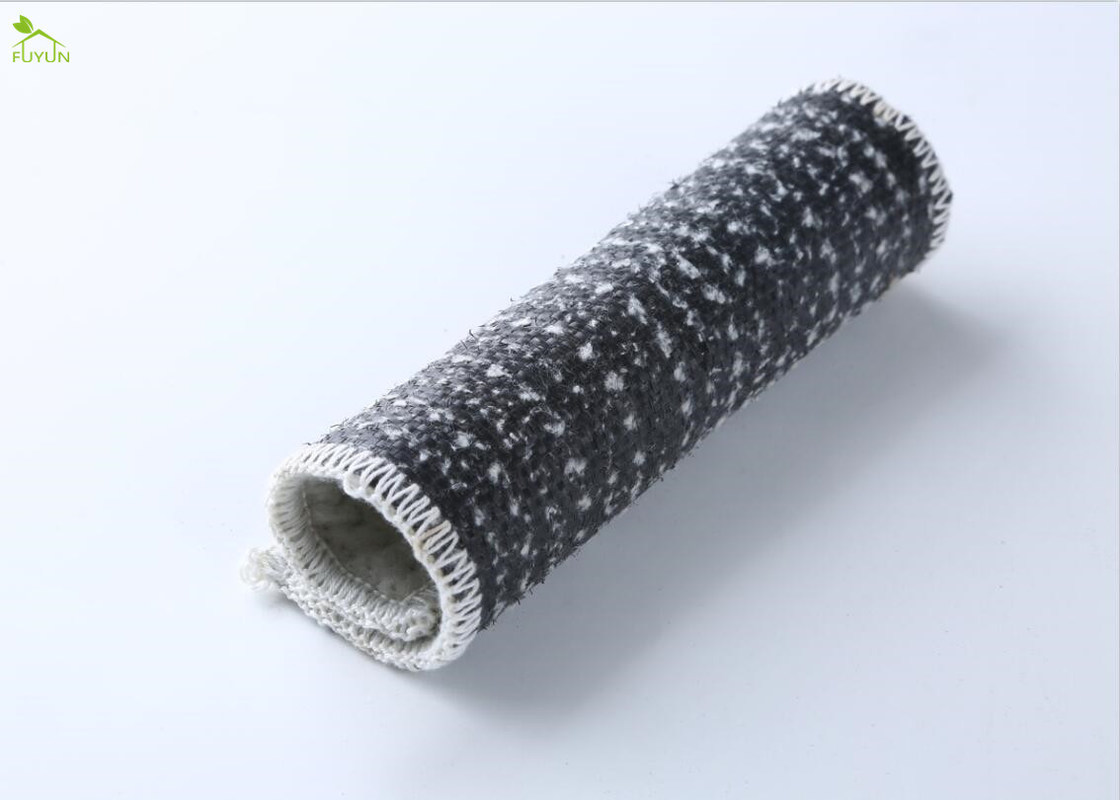

Rare Metal Ore Engineering Waterproof Isolation Geosynthetic Clay Liner Blanket 55×6 GCL
Anhydrous Ammonia Tank Engineering Antiseepage Strengthen Isolation Geosynthetic Clay Liner Blanket 55×6 GCL
component: geotextile, bentonite and HDPE (geomembrane)
function: antiseepage, strengthen, isolation
application: anhydrous ammonia tank, artificial landscape engineering, artificial water features project
The GeosyntheticClayLiner is a high-tech, green, composite waterproof material. It is made of two layers of geosynthetics sandwiched between two layers of high quality natrium-based bentonite granules by special needling method. Sodium bentonite granule is in the middle, which is made of natural clay mineral inorganic materials, has high expansibility and high water absorption capacity, low water permeability during wetting (vertical permeability coefficient is no more than ax10-9cm/s), and mainly plays the role of anti-seepage. The product also has other titles, such as bentonite waterproof pad, bentonite anti-seepage blanket, bentonite waterproof felt, bentonite anti-leakage pad, bentonite blanket, bentonite pad.
FUYUN GCL is filled with high expansion sodium bentonite between special composite geotextile and non-woven fabric. The bentonite anti-seepage pad made by needling method can form many small fiber spaces.The special needling process is to make the coarse fiber pass through the bentonite from the upper geotextile and fix it on the lower geotextile. By combining the four parts, the integrity of the bentonite waterproof blanket is effectively enhanced, and the shear strength and tensile strength of the bentonite waterproof blanket are greatly enhanced, which makes the bentonite waterproof blanket can be used alone, It can also be combined with compacted clay impervious core or geomembrane.The bentonite particles can not flow in one direction, and even high-density colloidal waterproof layer is formed in the cushion when encountering water, which can effectively prevent water from leakage.
FUYUN GCL can be constructed under the negative temperature (-20℃), while the traditional waterproof material cannot, because bentonite is inorganic material having better durability than that of organic waterproof material.
|1||GCL (g/㎡)||≥4000 and not less than the specified value||≥4000 and not less than the specified value||≥4000 and not less than the specified value|
|2||Swelling Index of Bentonite (ml/2g)||≥24||≥24||≥24|
|3||Absorption of Blue ( g/100g)||≥30||≥30||≥30|
|4||Tensile Strength (N/100mm)||≥600||≥700||≥600|
|5||Elongation at Maximum Load %||≥10||≥10||≥8|
|6||Peel Strength(N/100mm)||Non Woven and Woven Fabrics||≥40||≥40||/|
|PE Film and Non Woven Fabrics||/||≥30||/|
|7||Permeability Coefficient (m/s)||≤ 5.0x10^-11||≤ 5.0x10^-12||≤ 1.0x10^-12|
|8||Hydrostatic Pressure Resistance||0.4MPa, 1h, no seepage||0.6MPa, 1h, no seepage||0.6MPa, 1h, no seepage|
|9||Filtration Loss (ml)||≤ 18||≤ 18||≤ 18|
|10||Durability of Bentonite||≥20||≥20||≥20|
artificial lake waterscape engineering
oil depot & storage tank
chemical storage yard
1, Before GCL construction, foundation should be inspected, the foundation should be rammed flat, no potholes or water, no gravel or roots or other sharp objects.
2, In the process of handling and construction, GCL should be to avoid vibration and impact, to avoid large degree of bending.
3. After installing and acceptance of GCL, backfill shall be carried out as soon as possible. If it is in conjunction with the use of HDPE geomemes, geomemes shall be installed and welded in time to prevent them from being wet or broken by rain.
(1) A permanent waterproof performance, and excellent water seepage performance, impermeability hydrostatic pressure up to 1.0MPa above, permeability coefficient 5 *10-9cm / s.
(2) Has all the characteristics of geotextile material, such as separation, reinforcement, protection, filtration, simple construction and unrestricted construction environment temperature below 0 0 C also be construction.
(3) Easy to repair; Even after water (seepage) end of construction, such as waterproof layer accident damage, as long as the site of the damage to be a simple fix, can ever regain perfect waterproof performance.
(4)green: Bentonite is a natural inorganic material, harmless, non-toxic,no particular impact on the environment, with good environmental performance.
(5) simple construction period is short: and other waterproof materials, the construction is relatively simple, does not require heating and paste.
(6) Integrated waterproof materials and objects: When sodium bentonite water, with 20-28 times the capacity expansion, even if the concrete structure vibration and settlement, bentonite GCL can repair cracks in the concrete surface less than 2mm.
products will be well woven and belt packed, and we gurantee the product good before the customer receive. Besides, products can be packed as customer's special requirement.
Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 17.5 tons, 40HQ 24.5 tons. It can be shipped in 7 days.
25 tons per 8hrs.
Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
