| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SASO, SONCAP, ASTM |
| Model Number: | 1600 |
| Minimum Order Quantity: | 1460 Square Meters |
| Price: | USD 3.5-4.15 Square Meter |
| Packaging Details: | packed in roll with woven bags |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 30000 Square Meters per Day |
| Material: | HDPE, HIPS, Plastic, LDPE | Application: | Golf Course Greening, Football Field Greening, Terraces Greening, Garden Engineering, Roof Garden |
|---|---|---|---|
| Function: | Drainage, Ventilation, Waterproof, Green | Product Name: | Ventilation Dimple Height 12mm Drainage Geocomposite Board For Golf Course Greening |
| Dimple Height: | 12mm | Certificate: | ASTM, EN, ISO,GB |
| High Light: | Height 12mm Drainage Geocomposite,Ventilation Dimple Drainage Geocomposite,Golf Course Greening Drainage Geocomposite |
||

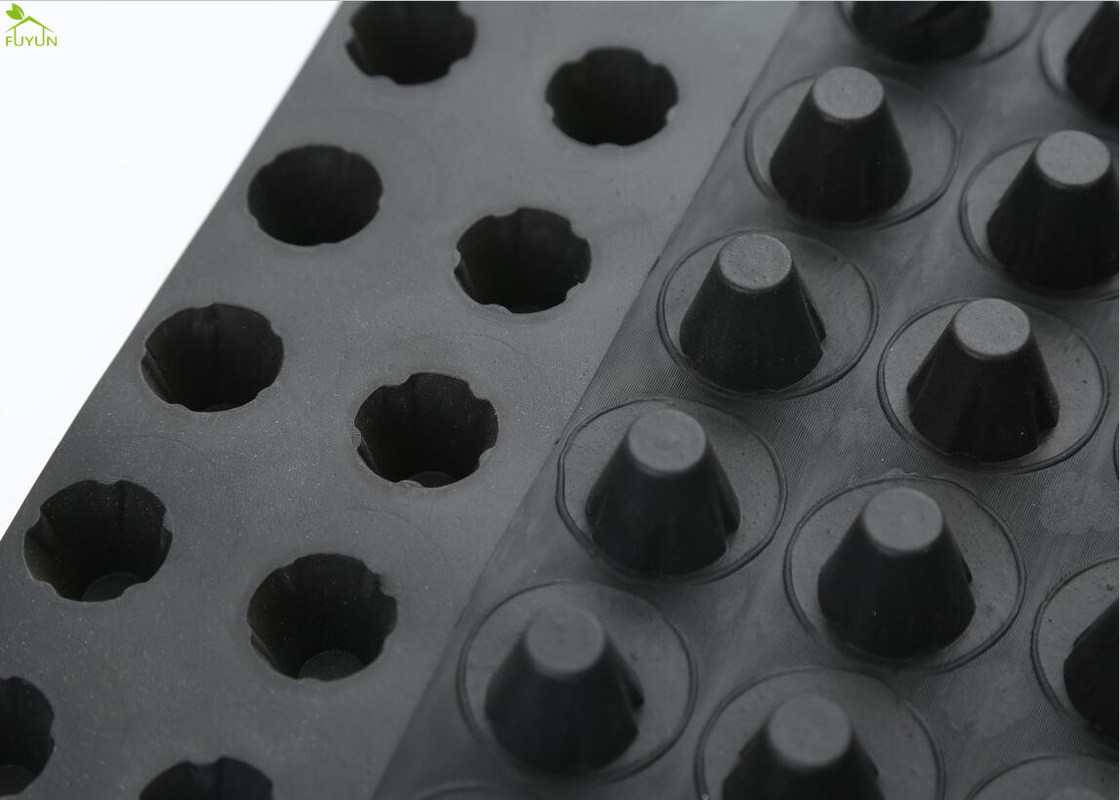

Ventilation Dimple Height 12mm Drainage Geocomposite Board for Golf Course Greening
Material: HDPE, HIPS, plastic, ldpe
Dimple height: 12mm
Width: 3m
Length:10m
function: reinforce, drainage, waterproof, ventilation
application: terrace greening, golf course greening, roof garden engineering, football field greening
Product Description:
Plastic drainage board is made of polystyrene (HIPS) or polyethylene (HDPE) as raw material baseboard, which is made of a conical boss or a reinforced convex point (hollow cylindrical porous) by stamping. The performance has been greatly improved and changed through continuous innovation and R & D. at present, most drainage boards are pressed with PVC as raw material, and the compressive strength and overall flatness have been greatly improved, with width of 1-3m and length of 4-10m or more.
A good drainage system plays an important role in the construction period of civil engineering, the normal use and life of buildings. The drainage board and porous permeable pipe form an effective drainage system, and the cylindrical porous drainage board and geotextile also form a drainage system, thus forming a system with the functions of water seepage, water storage and drainage.
Technical Parameter:
| No. | Item | Unit | Standard Value | ||||
| 1200g | 1400g | 1600g | 1800g | 2000g | |||
| 1 | Mass per unit area of composite | g/m2 | ≥1200 | ≥1400 | ≥1600 | ≥1800 | ≥2000 |
| 2 | Composite thickness | mm | ≥6.0 | ≥7.0 | ≥8.0 | ≥9.0 | ≥10.0 |
| 3 | Longitudinal tensile | kn/m | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 |
| 4 | Composite ydraulic conductivity | m2/s | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 |
| 5 | Peel strength | kn/m | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 |
| 6 | Mesh core thickness | mm | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 |
| 7 | Tensile strength | kn/m | ≥13.0 | ≥15.0 | ≥15.0 | ≥15.0 | ≥15.0 |
| 8 | Mass per unit area | g/m2 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 |
| 9 | Dimple height | mm | 10 | 10 | 11 | 12 | 12 |
Application:
This is a latent many functions materials, the use of this plate can be easily constructed out of the overhead layer, using overhead layer formed drainage, exhaust passage, at the same time to use the overhead layer reaches low noise, vibration isolation function; drainage drain board water permeability in the field of civil construction can be widely used in the overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing system, and interior floor insulation moisture protection, road and rail tunnel drainage water.
Advantage:
1. Dimple drain sheet has the special structure,which can quickly and effectively derived rain.
2. Eliminate the waterproof layer of hydrostatic pressure,also can achieve active waterproof effect by this initiative .
Package:
producrs are packed in roll with woven bags and waterproof file, and we gurantee the product is good when customers receive it.
Delivery:
all products will be delivered on time as customers requirement. generally it can be shiped in 7 days. 20GP, 40GP, 40HQ container is available.
Supply Ability:
25 tons per day.
