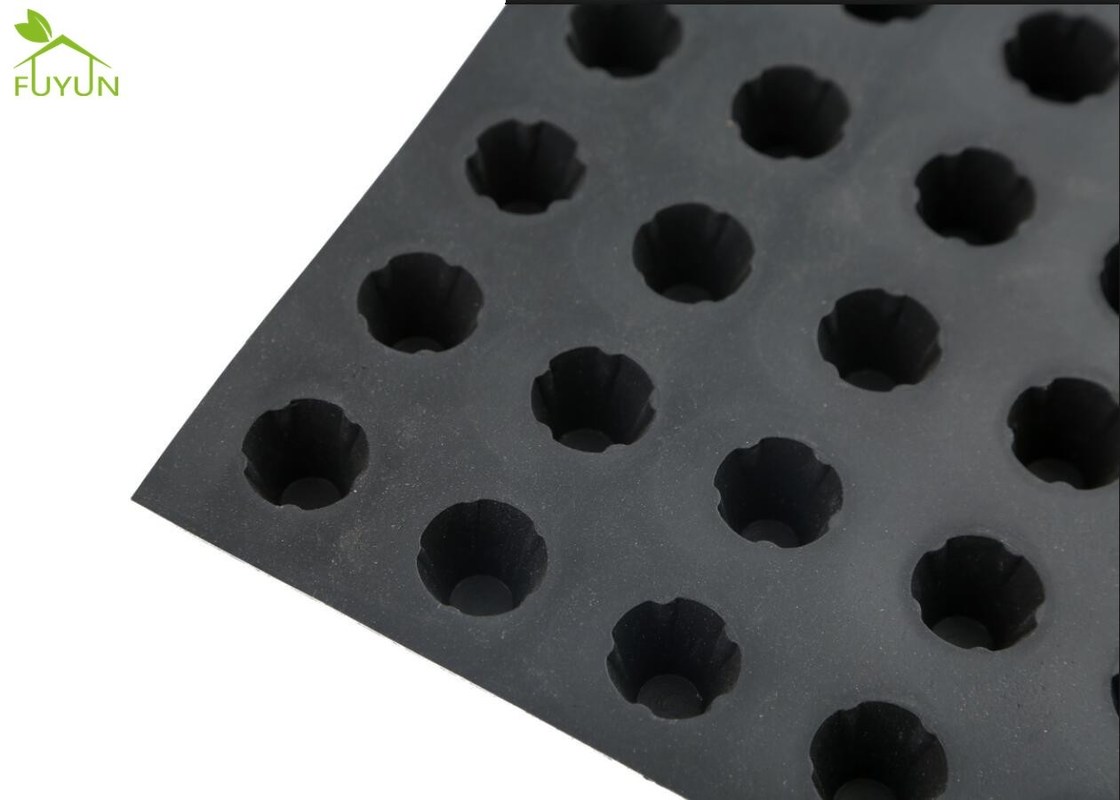

Dimple 1400gsm Geocomposite Drainage Board , HDPE Geocomposite Sheet Drain

Roof Greening Black Reinforce Ventilation HDPE Puncture Resistance Composite Dimple 1400gsm Drainage Board



Quick Detail:



Material: HDPE, HIPS, plastic

Dimple height: 12mm

Width: 3m

Length:10m

function: reinforce, drainage, waterproof, ventilation

application: road embankment, golf course, roof garden engineering





Product Description:



Plastic drainage board is made of polystyrene (HIPS) or polyethylene (HDPE) as raw material baseboard, which is made of a conical boss or a reinforced convex point (hollow cylindrical porous) by stamping. The performance has been greatly improved and changed through continuous innovation and R & D. at present, most drainage boards are pressed with PVC as raw material, and the compressive strength and overall flatness have been greatly improved, with width of 1-3m and length of 4-10m or more.



Drainage board is designed by professional mechanical structure, the thickness of the product boss is uniform, and is accompanied by a rib structure. It has high compressive strength, good flexibility, and non-degradation drainage. After construction through hot-melt welding, it has uniform resistance. Plant puncture, acid and alkali resistance, and aging resistance, form an overall flexible protection for building waterproof, so that the waterproof layer is in a closed space for a long time, and it is not easy to age. The service life of the waterproof layer is greatly extended.



A good drainage system plays an important role in the construction period of civil engineering, the normal use and life of buildings. The drainage board and porous permeable pipe form an effective drainage system, and the cylindrical porous drainage board and geotextile also form a drainage system, thus forming a system with the functions of water seepage, water storage and drainage.





Technical Parameter:



No.	Item	Unit	Standard Value
			1200g	1400g	1600g	1800g	2000g
1	Mass per unit area of composite	g/m2	≥1200	≥1400	≥1600	≥1800	≥2000
2	Composite thickness	mm	≥6.0	≥7.0	≥8.0	≥9.0	≥10.0
3	Longitudinal tensile	kn/m	≥16	≥16	≥16	≥16	≥16
4	Composite ydraulic conductivity	m2/s	≥1.2*10-4	≥1.2*10-4	≥1.2*10-4	≥1.2*10-4	≥1.2*10-4
5	Peel strength	kn/m	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3
6	Mesh core thickness	mm	≥5.0	≥5.0	≥5.0	≥5.0	≥5.0
7	Tensile strength	kn/m	≥13.0	≥15.0	≥15.0	≥15.0	≥15.0
8	Mass per unit area	g/m2	≥200	≥200	≥200	≥200	≥200
9	Dimple height	mm	10	10	11	12	12





Application:

• Greening Project: garage roof greening, roof garden, vertical greening, sloping roof greening, football field, golf course
• Municipal Engineering: airport, road subgrade, subway, tunnel, landfill
• Construction Engineering: upper or lower layer of building foundation, interior and exterior wall, floor and roof of basement, roof anti-seepage and heat insulation layer
• Water Conservancy Project: reservoir seepage prevention, reservoir, artificial lake seepage prevention
• Traffic Engineering: highway, railway subgrade, dam and slope protection layer





Advantage:

• strong resistance to load and durability
• convenient construction, easy maintenance and economy
• waterproof and drainage: water and gas can go through the channel
• sound insulation, vibration isolation
• chemical resistance, plant's root resistance



Package:



producrs are packed in roll with woven bags and waterproof file, and we gurantee the product is good when customers receive it.







Delivery:



all products will be delivered on time as customers requirement. generally it can be shiped in 7 days. 20GP, 40GP, 40HQ container is available.





Supply Ability:



25 tons per day.
