Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | BV, ASTM, CE, ISO, GB, EN, |
Model Number: | EM4 |
Minimum Order Quantity: | 2000 Square Meters |
Price: | USD 0.75-1.35 Square Meter |
Packaging Details: | woven bag, waterproof film |
Delivery Time: | 7 Days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
Supply Ability: | 50000 Square Meters per Day |
Thickness: | 15mm | Weight: | 500g/sqm |
---|---|---|---|
Application: | Highway Construction Project, Road And Railway Construction Project | Function: | Slope Greening, Gravel Reinforcing, Soil Consolidation, Drainage |
Material: | HDPE, Plastic, PP, PET,LLDPE | Product Name: | Railway Project Gravel Reinforce HDPE Erosion Control Soil Consolidate Drainage EM4 Green Geonet Made In China |
High Light: | Soil Consolidation Geomat Erosion Control,Gravel Reinforce Geomat Erosion Control,Railway Project Geomat Erosion Control |

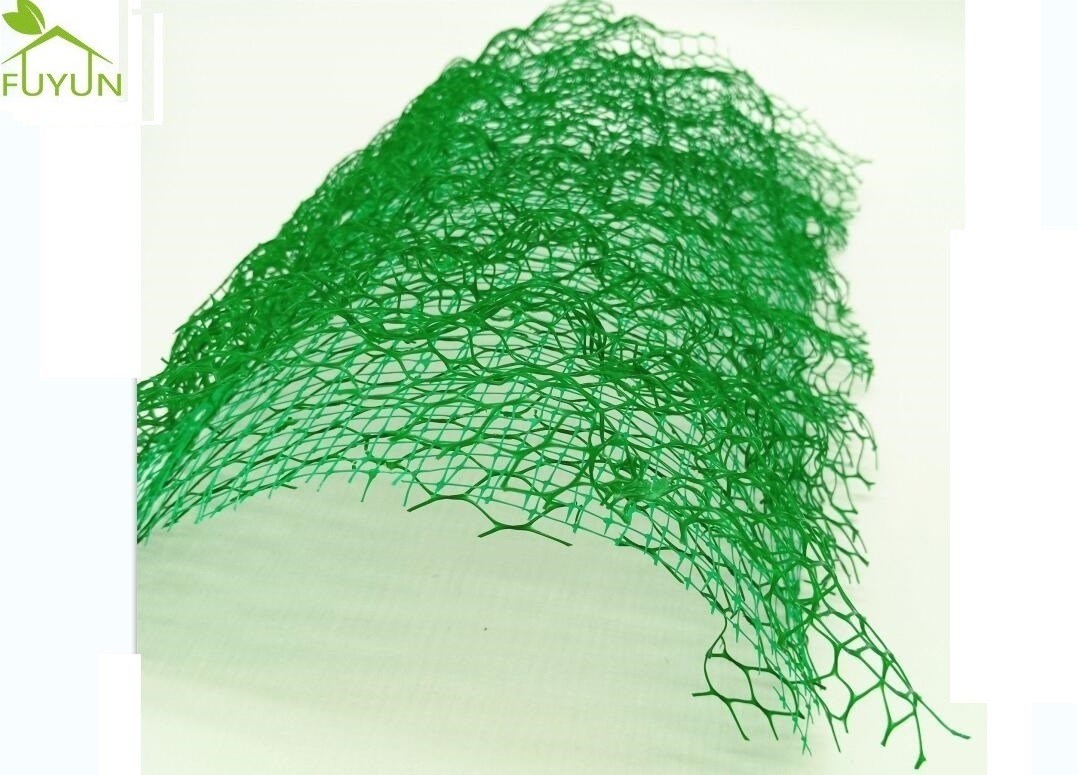

Railway Project Gravel Reinforce HDPE Erosion Control Soil Consolidate Drainage EM4 Green Geonet Made In China
Quick Detail:
material: plastic, polyethylene, HDPE
function: slope greening, gravel reinforce, soil consolidate, drainage
application: highway construction, road contruction, railway construction
Product Description:
Soil erosion control mat is a new type of geosynthetic material with three-dimensional structure suitable for soil and water conservation, which can effectively prevent soil and water loss, increase green area, and improve the ecological environment. Soil erosion control mat is made of synthetic filament materials tangled together to form a highly deform-able which has a very high porosity. Soil erosion control mat is widely used for road, railway, river, dam, hillside and other protection slopes along the banks of canals and river courses to convey drainage in association with geotextiles or geomembranes. Before the turf grows, the land can be protected from wind and rain. The composite protective layer formed after the plants grow can withstand high water level and high flow velocity scouring. Due to the use of polymer materials and UV anti-ultraviolet stabilizers, soil erosion control mat has higher chemical stability and no pollution to the environment.
Geomat is kind of net patch in three dimensional structure for turf extending. Geomat provides thermal protection and holds water for plantings' germination, and accommodates with green vegetated surface. Its structure is designed for plants growing and for gravels solidation. It is loose and flexible with 95% space left for filling soil, grit and fine stones, gravels, and plant root system can pass through it. So that lants can grow soundly within it. It creats an enough space for drainage and ventilation so that pit provides a good environment fro plants. The grown turf will combine itself hard with net patch and earth surface together. Plant root system can go deep into 30-40cm underground, so a solid green compound protective layer will be built.
It can protect the ground surface being corroded before the turf is growing up, and fix the seeds.The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc.
Technical Parameter:
No. | Item | Unit | Standard Value | |||
EM2 | EM3 | EM4 | EM5 | |||
1 | Mass per unit area | g/m2 | ≥220 | ≥260 | ≥350 | ≥430 |
2 | Thickness | mm | ≥10 | ≥12 | ≥14 | ≥16 |
3 | Width deviation | m | +/-0.1 | |||
4 | Length deviation | m | +/-0.1 | |||
5 | Longitudinal tensile strength | kn/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
6 | Transverse tensile strength | kn/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
Advantage:
1. before the grass' growing up ,it can protect the land surface from wind erosion.
2. keep seed uniform and firm on the slope casting surface from the wind and rain rushing away.
3. absorb a lot of heat, increase humidity, promote seed germination,and extend the plant growth.
4. the rough surface keeps the wind, water flow in the nets mat surface,and then produces countless eddy current,to weaken generating function.
5. plants grow up and form compound protection layer.the layer can withstand high water level, the flow velocity flushing.
6. it can replace concrete, asphalt, stone as permanent slope protection materials,and used for highway, railway, river, dams, hillside slope protection
Application:
1). It can save embankment from erosion by wind and rain until the turf is generated.
2). It can keep seed distribution evenly on the slope from the wind and rain to be lost.
3). Mat can absorb large amounts of heat energy to enhance geothermal, and promote the seed germination, extend the growth period of plants.
4). The compound protection layer formed by plants grown together can with stand high water level and washout of flow.
5). It can instead of concrete,asphalt ,stone and so on slope materials. Mainly used in highway, railway, river channel, embankment and other slope surface protection.
Package:
It's packed well with 2 layers woven bags and tight belts for convenient unloading and protecting product.
Delivery:
It's generally in 8 days. All loading procedures are professional for protectingproducts and for quick convenient unloading.
Supply Ability:
25.5 tons per 8 hrs
Factory Show:
Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
