Place of Origin: | Hefei,China |
---|---|
Brand Name: | FUYUN |
Certification: | BV, CE, ISO, GB, EN, ASTM |
Model Number: | EM5 |
Minimum Order Quantity: | 1000 Square Meters |
Price: | USD 0.75-2.53 Square Meter |
Packaging Details: | packed in roll with woven bag, waterproof film |
Delivery Time: | 7 Days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
Supply Ability: | 50000 Square Meters per Day |
Thickness: | 20mm | Weight: | 500g/sqm |
---|---|---|---|
Application: | Vegetation Protect | Function: | Vegetation Protect, Anti Erosion, Soil Consolidate, Drainage, Gravel Reinforcement |
Material: | PP, Plastic, HDPE, PET | Product Name: | Vegetation Protect High Quality Gravel Reinforce Soil Consolidate Anti-Erosion EM5 Green 3 Layers PP PET Geomat |
High Light: | Vegetation Protect Geomat Cushion,Vegetation Protect Geotech Weed Mat,500g/Sqm Geotech Weed Mat |

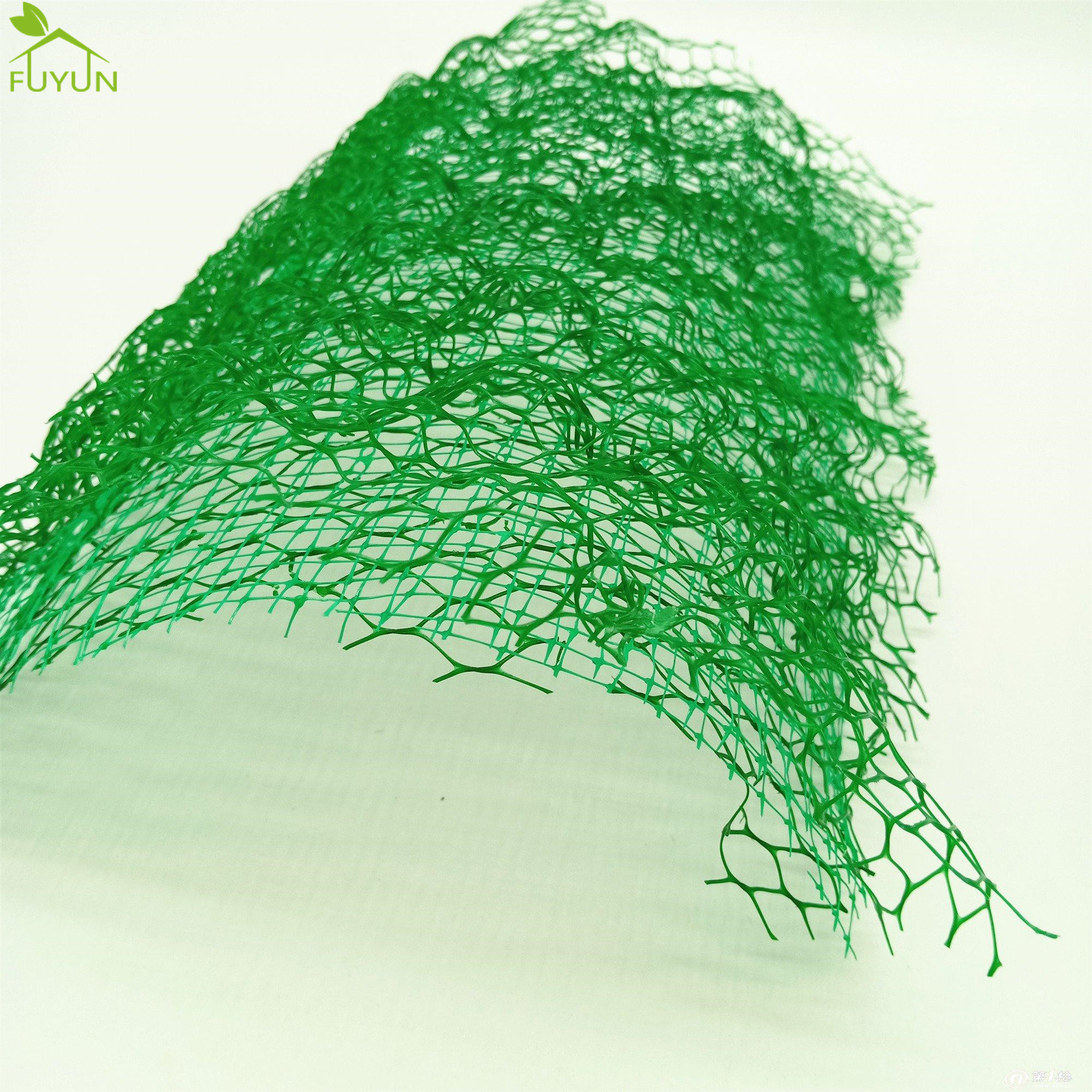

Vegetation Protect High Quality Gravel Reinforce Soil Consolidate Anti-Erosion EM5 Green 3 Layers PP PET Geomat
Quick Detail:
material: plastic, polyethylene, HDPE, PET, PP
function: gravel reinforce, soil consolidate, drainage, anti erosion
application: vegetation protect
Product Description:
Three dimension vegetation net is a new-typed seed planting material with tridimensional structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds.The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc
Three dimension geomat characteristics:
(1)loose and fexible:Used for vegetation in his native of a 3 d structure of the towel gourd network kind of nets mat
(2)A layer of strong green composite protective cover:It left 90% of the space to fill soil, gravel, fine stone, and vegetation can pass through the root system, meanwhile, neatly balanced growth comfortably, after growing grass, the nets pad and soil surface firmly together, because the vegetation can be deeply root below the surface 30-40 cm, formed a layer of strong green composite protective cover.
Technical Parameter:
No. | Item | Unit | Standard Value | |||
EM2 | EM3 | EM4 | EM5 | |||
1 | Mass per unit area | g/m2 | ≥220 | ≥260 | ≥350 | ≥430 |
2 | Thickness | mm | ≥10 | ≥12 | ≥14 | ≥16 |
3 | Width deviation | m | +/-0.1 | |||
4 | Length deviation | m | +/-0.1 | |||
5 | Longitudinal tensile strength | kn/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
6 | Transverse tensile strength | kn/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
Advantage:
1. High strength thermoplastic resin as raw material;
2. Special advanced composite process;
3. Suitable for slope protection of highway, railway, water conservancy, mine and municipal engineering to prevent soil erosion;
4. Preferred materials for landscaping and environmental protection;
5. Convenient construction.
Application:
Package:
It's packed well with 2 layers woven bags and tight belts for convenient unloading and protecting product.
Delivery:
It's generally in 8 days. All loading procedures are professional for protectingproducts and for quick convenient unloading.
Supply Ability:
25.5 tons per 8 hrs
Factory Show:
FAQ:
