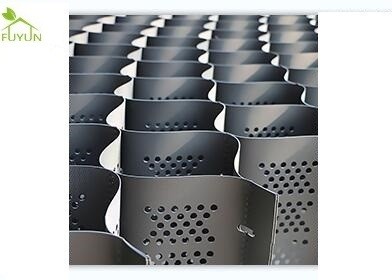

Black Textured Perforated HDPE Geocell For Soil Reinforcement

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, GB, ASTM
Model Number: GS-50-400
Minimum Order Quantity: 1000 Square Meters
Price: USD 1.0-2.0 Square Meter
Packaging Details: packed in strips, wood pallet
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 20000 Square Meters per Day
Detail Information
Material: PP, PET, High-density Polyethylene (HDPE) Product Name: Black Textured Perforated HDPE Geocell For Soil Reinforcement Stablization In Road Construction
Application: Slope, Dam, Road Basement, Highway, Earthwork Function: Reinforce, Stabilize, Protect
Height: 50mm Certificate: ASTM, EN, GB, ISO
High Light:

Black Textured HDPE Geocell

,

Perforated HDPE Geocell

,

Soil Reinforcement HDPE Geocell


Product Description

Black Textured Perforated HDPE Geocell For Soil Reinforcement Stablization In Road Construction







Quick Detail:



material: PP, PET, High-density polyethylene (HDPE)

height: 50mm

function: reinforce, stablize, protection

application: road basement, highway, earthwork





Product Description:



FUYUN geocell is well known that an ideal soil material for use in civil engineering applications is one that compacts well and drains water freely. The problem is that the better draining soils are difficult to confine in place. Our Geo cellular confinement system provides a solution. It is being widely used in construction, such as highway, railway, bridge, dyke, etc.

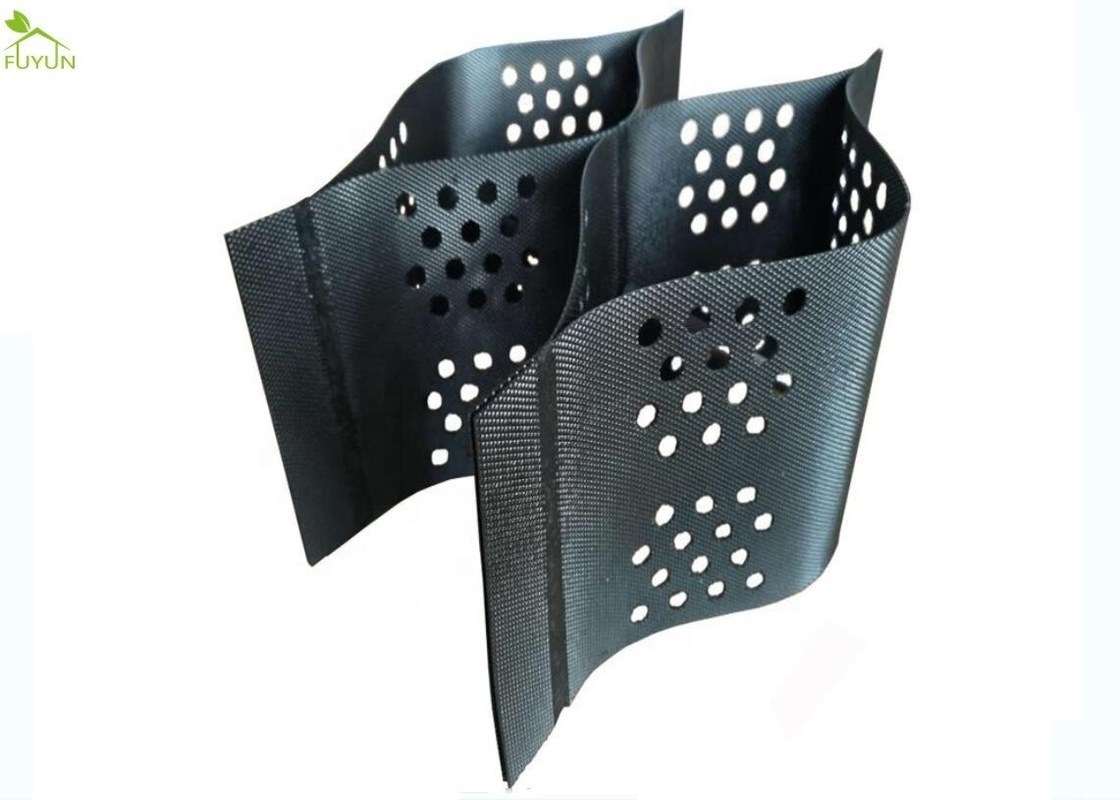

It is manufactured from Virgin, high-density polyethylene. Standard panles contain 58 strips of HDPE ultrasonically welded at different distances depending upon the chosen product configuration wide. Each strip is between 3 to 8 inches (75 to 200mm), depending upon the cell depth, and 142 inches (3.6m) in length. Cells walls are textured and if perforations are required, between 9.5% and 14% of the cell wall is removed.





Technical Parameters:



item GS-50-400 GS-75-400 GS-100-400 GS-150-400 GS-200-400
height(mm) 50 75 100 150 200
thickness of the sheet (mm) ≧1.1 ≧1.1 ≧1.1 ≧1.1 ≧1.1
weld distance (mm) 330≦A<1000 330≦A<1000 330≦A<1000 330≦A<1000 330≦A<1000
tensile strength of weld points (N/cm) ≧100 ≧100 ≧100 ≧100 ≧100
tensile strength of connection of cells (N/cm) ≧120 ≧120 ≧120 ≧120 ≧120
tensile strength at yield of each sheet(N/cm) ≧20 ≧20 ≧20 ≧20 ≧20





Application:



1. stablize road and railway roadbeds.
2.
withstand the load of gravity for the embankment and shallow water channel
3. prevent landslides and load gravity as
hybrid retaining wall
4. When encountering soft foundation, the use of geocells can greatly reduce the construction labor intensity, reduce the thickness of the roadbed, and the construction speed is fast and the performance is good, which greatly reduces the construction cost



Black Textured Perforated HDPE Geocell For Soil Reinforcement 0



Black Textured Perforated HDPE Geocell For Soil Reinforcement 1

Black Textured Perforated HDPE Geocell For Soil Reinforcement 2





Advantage:

  • Being flexible, transport can be folded, construction can be stretched into a network, filled with soil, gravel, concrete and other loose materials, constitute a strong lateral limit and stiffness of the structure.
  • Flexible, small transport volume; The connection is convenient and the construction speed is fast.
  • Light material, wearing resistance, chemical stability, light and oxygen resistance, aging, acid and alkali resistance, suitable for different soil and desert and other soil conditions.
  • Higher lateral restrictions and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and dispersed load.
  • Different engineering needs can be met by changing the height and welding distance of geotechnical chamber.



Package:



the geocell is packed by strips on the wood pallet. it can also be packed by customer's special requirement. we gurantee the product good when customer receive it.

Black Textured Perforated HDPE Geocell For Soil Reinforcement 3

Delivery:



all products are delivered in time according to customer's requirement. we cooperate with international famous logistic company and shipping company to gurantee the safety of product and fast delivery.



Black Textured Perforated HDPE Geocell For Soil Reinforcement 4





Factory Show:



Black Textured Perforated HDPE Geocell For Soil Reinforcement 5

Black Textured Perforated HDPE Geocell For Soil Reinforcement 6





Why Choose US?



Black Textured Perforated HDPE Geocell For Soil Reinforcement 7



FAQ:



Black Textured Perforated HDPE Geocell For Soil Reinforcement 8
