| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, CE, GB |
| Model Number: | GS-75-400 |
| Minimum Order Quantity: | 1260 Square Meters |
| Price: | USD 1.0-2.15 Square Meter |
| Packaging Details: | packed in belts, wood pallet, waterproof film |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 20000 Square Meters per Day |
| Material: | PET, PP, High-density Polyethylene (HDPE) | Product Name: | Black HDPE Geocell Reinforce Soil Prevent Landslide Stabilizer Gravel For Sewer Pipeline Project |
|---|---|---|---|
| Application: | Sewer Pipeline Project | Function: | Reinforce Soil Prevent Landslide Stabilizer Gravel |
| Certificate: | ASTM, EN, ISO, GB | Height: | 75mm |
| High Light: | 75mm Geocell Slope Protection,Geocellular Confinement Systems Prevent Landslide,Geocell Slope Protection Prevent Landslide |
||

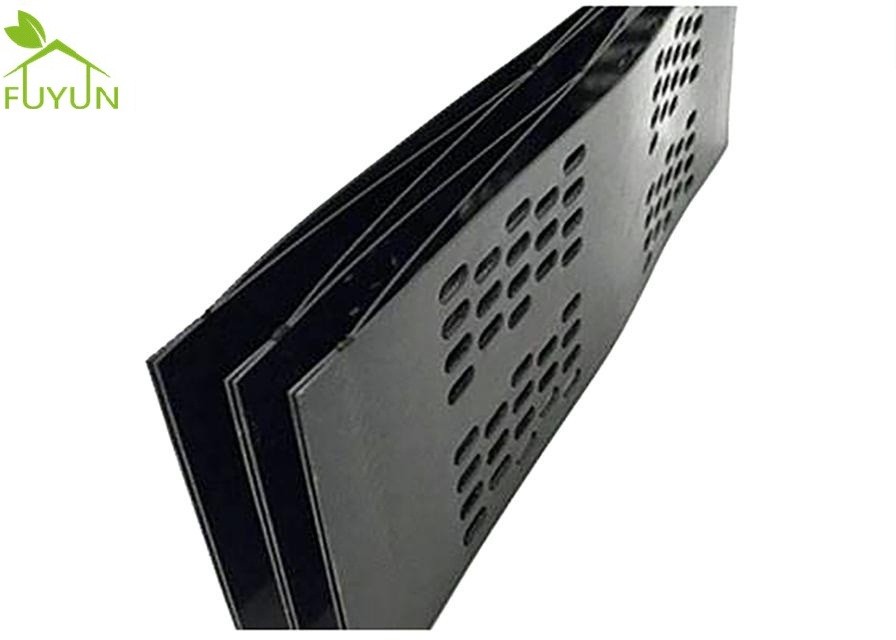

Black HDPE Geocell Reinforce Soil Prevent Landslide Stabilizer Gravel For Sewer Pipeline Project
Quick Detail:
material: PET, PP, High-density polyethylene (HDPE)
height: 75mm
function: reinforce soil, prevent landslide, stabilizer gravel
application: sewer pipeline project
Product Description:
FUYUN geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with ASTM implemenation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction,the geocell can be pull into a network and launched into a three-dimensional honeycomb grid.As it filled in sol,macadam,concrete or other granular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.
It is retractable, and can be folded up in transportation, when the use of the expansion and filling of soil, stone and concrete, with a strong lateral constraints and stiffness of the structure. It can be used as a cushion to increase the bearing capacity of soft foundation, and laid on the slope to form a slope protection structure, and also can be used to build retaining structure.
Technical Parameters:
| item | GS-50-400 | GS-75-400 | GS-100-400 | GS-150-400 | GS-200-400 |
| height(mm) | 50 | 75 | 100 | 150 | 200 |
| thickness of the sheet (mm) | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 |
| weld distance (mm) | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 |
| tensile strength of weld points (N/cm) | ≧100 | ≧100 | ≧100 | ≧100 | ≧100 |
| tensile strength of connection of cells (N/cm) | ≧120 | ≧120 | ≧120 | ≧120 | ≧120 |
| tensile strength at yield of each sheet(N/cm) | ≧20 | ≧20 | ≧20 | ≧20 | ≧20 |
Application:
1. stable the bed of railway and road
2. bear the bed of road
3. bear the loading dykes and walls
4. administer shallow water and river
5. support pipeline and sewer
6. prevent landslide and to be used as compound walls to support loading
7. be used in dependent walls,wharfs and bank and so on
8. govern sand,beach,river bank and riverbed
Advantage:
Package:
all products are packed by belts on the wood pallet. we make sure that customers receive the products well. we also support customer's special package requirement.
Delivery:
all products will be delivered immidiately when finished. we choose international famous logistic company and shipping company to gurantee the safety of product and fast delivery.
