HIPS 3m Width Drainage Geocomposite Protection Board For Golf Course

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, BV, SASO, SONCAP
Model Number: 1400
Minimum Order Quantity: 1250 Square Meters
Price: USD 2.5-4.65 Square Meter
Packaging Details: packed in roll with woven bags
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 30000 Square Meters per Day
Detail Information
Material: HDPE, HIPS, Plastic Application: Golf Course, Garden Engineering, Roof Garden
Function: Ventilation, Drainage, Waterproof, Moisture Proof Product Name: Golf Course Black Waterproof Ventilation HDPE Puncture Resistance Composite Dimple 1400gsm Drainage Board
Weight: 1400gsm Certificate: ASTM, EN, ISO, GB
High Light:

3m Drainage Geocomposite

,

HIPS Drainage Geocomposite

,

3m Drainage Protection Board


Product Description

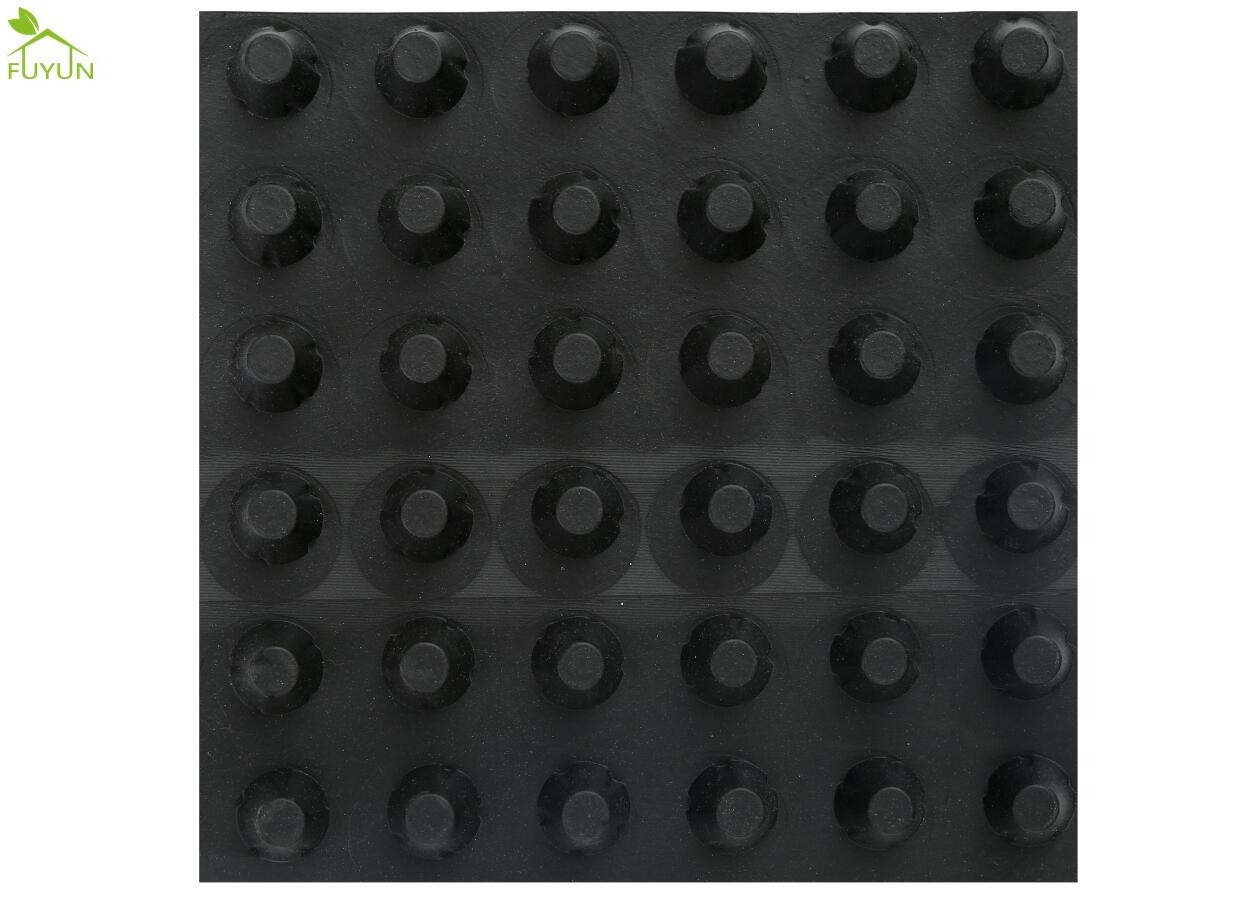

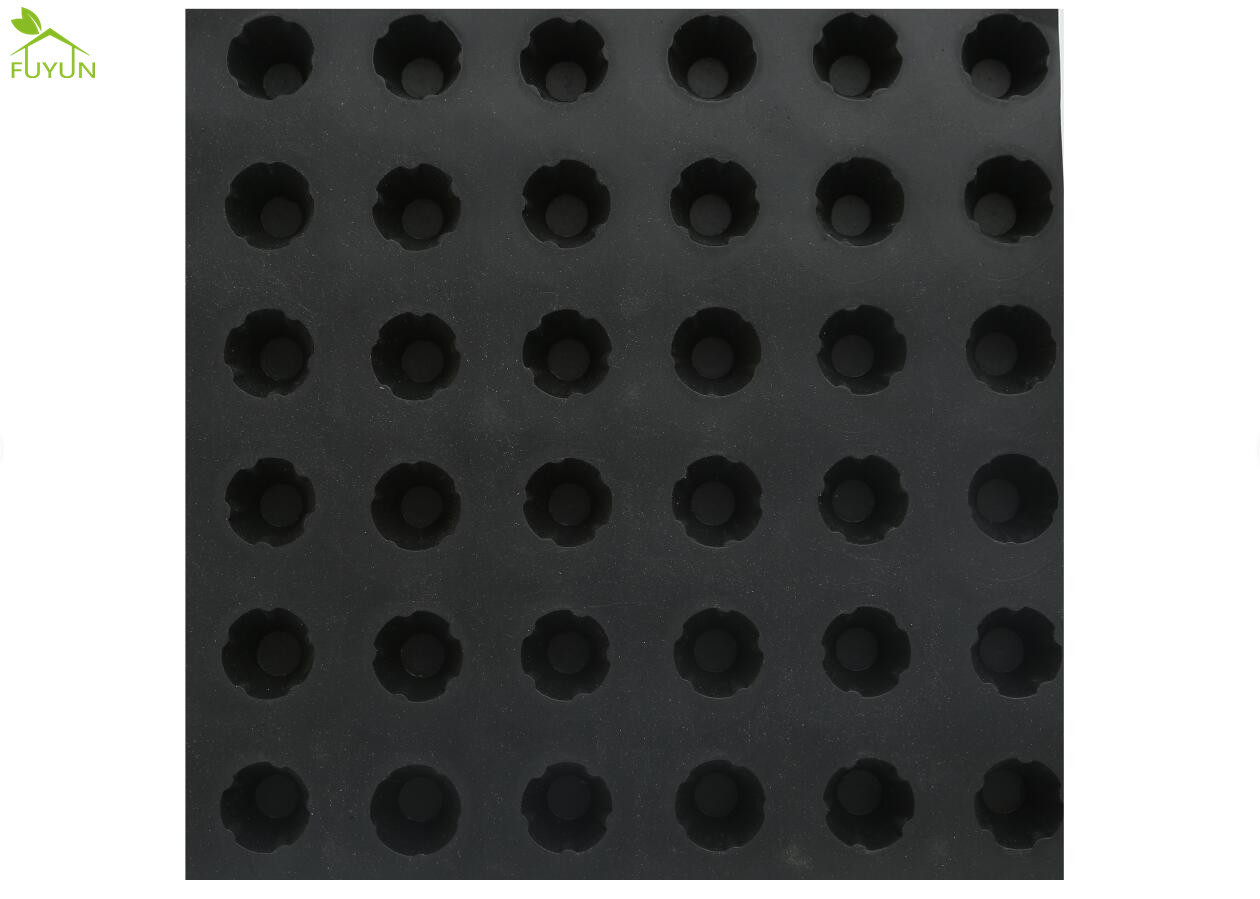

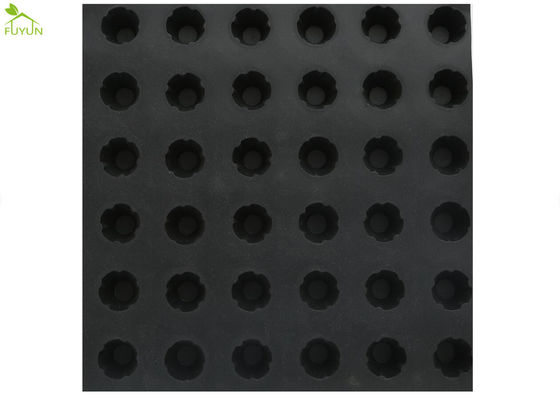

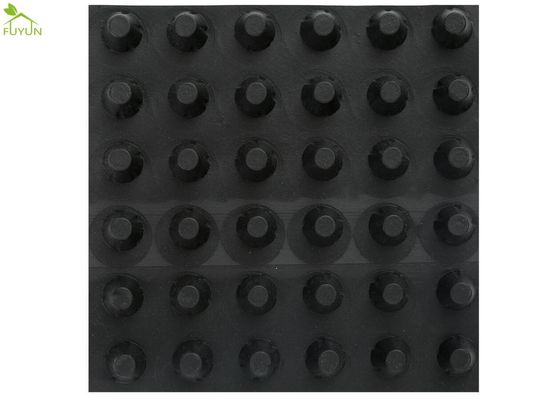

Golf Course Black Waterproof Ventilation HDPE Puncture Resistance Composite Dimple 1400gsm Drainage Board



Quick Detail:



Material: HDPE, HIPS, plastic

Dimple height: 12mm

Width: 3m

Length:10m

function: drainage, waterproof, ventilation

application: golf course, roof garden engineering





Product Description:



Plastic drainage board is made of polystyrene (HIPS) or polyethylene (HDPE) as raw material baseboard, which is made of a conical boss or a reinforced convex point (hollow cylindrical porous) by stamping. The performance has been greatly improved and changed through continuous innovation and R & D. at present, most drainage boards are pressed with PVC as raw material, and the compressive strength and overall flatness have been greatly improved, with width of 1-3m and length of 4-10m or more.



A layer of filter geotextile is glued on the top surface of the cylindrical boss to prevent the soil particles from passing through, so as to avoid the blockage of the drainage channel and make the drainage channel smooth. Traditional drainage method uses brick and tile stones as the guide filter layer, and more pebbles or crushed stones are used as the filter layer to discharge water to the designated place. While the use of drainage board instead of pebble filter layer can save time, energy, reduce investment and reduce the load of buildings.



A good drainage system plays an important role in the construction period of civil engineering, the normal use and life of buildings. The drainage board and porous permeable pipe form an effective drainage system, and the cylindrical porous drainage board and geotextile also form a drainage system, thus forming a system with the functions of water seepage, water storage and drainage.





Technical Parameter:



No. Item Unit Standard Value
1200g 1400g 1600g 1800g 2000g
1 Mass per unit area of composite g/m2 ≥1200 ≥1400 ≥1600 ≥1800 ≥2000
2 Composite thickness mm ≥6.0 ≥7.0 ≥8.0 ≥9.0 ≥10.0
3 Longitudinal tensile kn/m ≥16 ≥16 ≥16 ≥16 ≥16
4 Composite ydraulic conductivity m2/s ≥1.2*10-4 ≥1.2*10-4 ≥1.2*10-4 ≥1.2*10-4 ≥1.2*10-4
5 Peel strength kn/m ≥0.3 ≥0.3 ≥0.3 ≥0.3 ≥0.3
6 Mesh core thickness mm ≥5.0 ≥5.0 ≥5.0 ≥5.0 ≥5.0
7 Tensile strength kn/m ≥13.0 ≥15.0 ≥15.0 ≥15.0 ≥15.0
8 Mass per unit area g/m2 ≥200 ≥200 ≥200 ≥200 ≥200
9 Dimple height mm 10 10 11 12 12





Application:

  • Greening Project: garage roof greening, roof garden, vertical greening, sloping roof greening, football field, golf course
  • Municipal Engineering: airport, road subgrade, subway, tunnel, landfill
  • Construction Engineering: upper or lower layer of building foundation, interior and exterior wall, floor and roof of basement, roof anti-seepage and heat insulation layer
  • Water Conservancy Project: reservoir seepage prevention, reservoir, artificial lake seepage prevention
  • Traffic Engineering: highway, railway subgrade, dam and slope protection layer

HIPS 3m Width Drainage Geocomposite Protection Board For Golf Course 0





Advantage:

  • strong resistance to load and durability
  • convenient construction, easy maintenance and economy
  • waterproof and drainage: water and gas can go through the channel
  • sound insulation, vibration isolation
  • chemical resistance, plant's root resistance



Package:



producrs are packed in roll with woven bags and waterproof file, and we gurantee the product is good when customers receive it.



HIPS 3m Width Drainage Geocomposite Protection Board For Golf Course 1





Delivery:



all products will be delivered on time as customers requirement. generally it can be shiped in 7 days. 20GP, 40GP, 40HQ container is available.





Supply Ability:



25 tons per day.





Factory Show:



HIPS 3m Width Drainage Geocomposite Protection Board For Golf Course 2

HIPS 3m Width Drainage Geocomposite Protection Board For Golf Course 3





Why Choose US:

HIPS 3m Width Drainage Geocomposite Protection Board For Golf Course 4



FAQ:



HIPS 3m Width Drainage Geocomposite Protection Board For Golf Course 5
