| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | GB, EN, CE, ISO, BV |
| Model Number: | 55×6 |
| Minimum Order Quantity: | 1550 Square Meters |
| Price: | USD 1.45-4.5 Square Meter |
| Packaging Details: | packed in roll in pipe core woven bags, pack size width 1-5m, length 20-55m |
| Delivery Time: | 7 Days |
| Payment Terms: | D/P, T/T, Western Union, L/C, D/A, MoneyGram, Paypal |
| Supply Ability: | 33500 Square Meters per Day |
| Application: | Petroleum Petrochemical Oil Tank | Material: | Geotextile (HDPE), Bentonite |
|---|---|---|---|
| Function: | Isolation, Anti-seepage | GCL (g/㎡): | 5500 |
| Product Name: | Petroleum Petrochemical Oil Tank Anti Seepage Isolation 50×5 Bentonite Geosynthetic Clay Liner Blanket GCL | Package: | Packed In Roll In Pipe Core Woven Bags, Pack Size Width 1-5m, Length 20-55m |
| High Light: | 5500g/M2 Clay For Pond Liner,GCL Bentonite Clay For Pond Liner,Geotextile GCL Clay Liner |
||

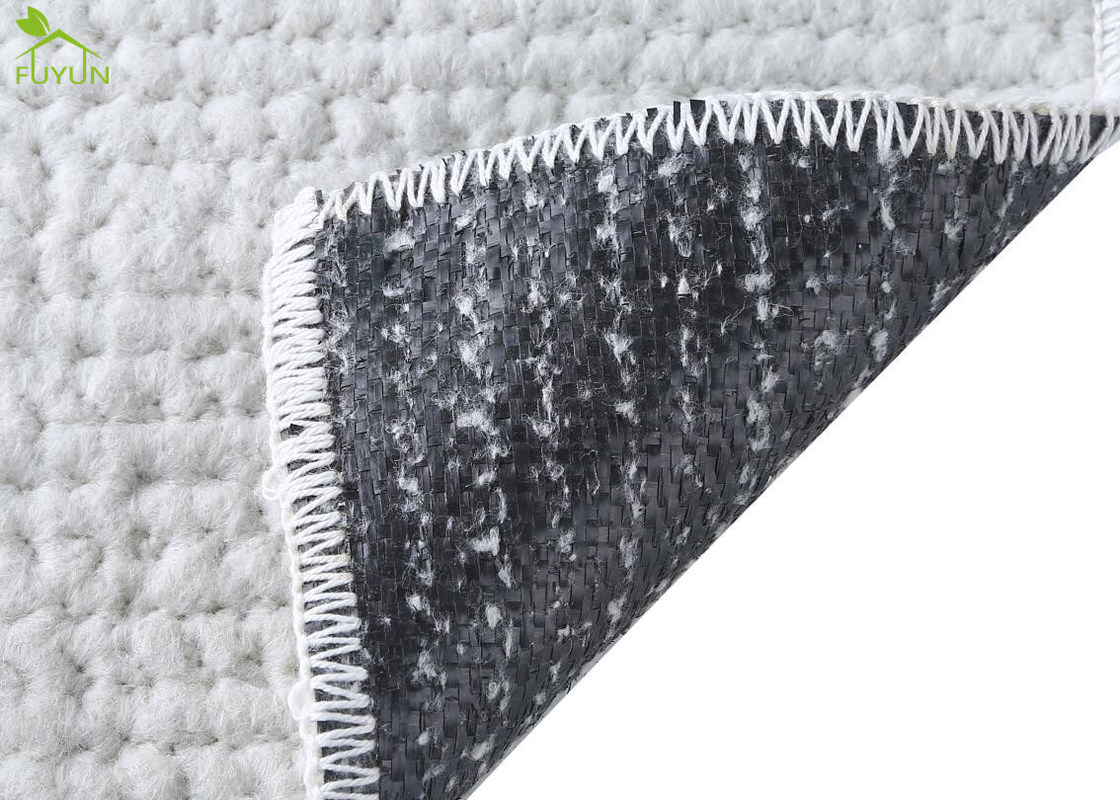

Petroleum Petrochemical Oil Tank Anti Seepage Isolation 55×6 Bentonite Geosynthetic Clay Liner Blanket GCL
Quick Detail:
component: (HDPE) geomembrane, bentonite, geotextile
size: 55*6m
function: isolation, antiseepage
application: petroleum petrochemical oil storage tank
Product Description:
FUYUN produced GCL (bentonite waterproof geosynthetic clay liners) produced also named bentonite composite waterproof blanket or pad. The bentonite waterproof blanket has four layers. The upper and lower layers are geotextiles playing the role of reinforcement and protection, so that it has a certain overall puncture strength and tensile strength; The middle layer is sodium bentonite using natural clay mineral inorganic as materials. Its advantages includes: high water absorption capacity and high expansibility, and low water permeability being wet; The bottom layer is a thin HDPE geomembrane being for anti-seepage.
The bentonite waterproof blanket processed by advanced needling steps. This step can make the coarse fiber pass through the bentonite from the upper geotextile and fix it on the lower geotextile. By combining the four parts, the integrity of the bentonite waterproof blanket is greatly improved, and the shear strength and tensile strength of the bentonite waterproof blanket are guranteed, which makes the bentonite waterproof blanket be applied alone, It can also be combined with compacted clay impervious core or geomembrane.
Because bentonite is inorganic material, its durability is better than that of organic waterproof material, our bentonite waterproof blanket can be applied under extreme low temperature (-20℃), but the traditional waterproof material cannot be constructed under that temperature.
Installing Notes:
1, bentonite waterproof geosynthetic clay liners construction, foundation should be checked and inspected, the foundation should be rammed flat, no potholes and water, no gravels, no roots and other sharp objects.
2, bentonite waterproof geosynthetic clay liners in the process of handling and construction should be to avoid vibration and impact, to avoid the blanket body having a large degree of bending.
3. After the installing and acceptance of GCL, backfill shall be carried out as soon as possible. If it is in conjunction with the use of HDPE geomembrane, which shall be installed and welded in time to prevent it from being wet or broken by rain.
Technical Parameter:
| No. | Item | Technical Index | |||
| GCL-NP | GCL-OF | GCL-AH | |||
| 1 | GCL (g/㎡) | ≥4000 and not less than the specified value | ≥4000 and not less than the specified value | ≥4000 and not less than the specified value | |
| 2 | Swelling Index of Bentonite (ml/2g) | ≥24 | ≥24 | ≥24 | |
| 3 | Absorption of Blue ( g/100g) | ≥30 | ≥30 | ≥30 | |
| 4 | Tensile Strength (N/100mm) | ≥600 | ≥700 | ≥600 | |
| 5 | Elongation at Maximum Load % | ≥10 | ≥10 | ≥8 | |
| 6 | Peel Strength(N/100mm) | Non Woven and Woven Fabrics | ≥40 | ≥40 | / |
| PE Film and Non Woven Fabrics | / | ≥30 | / | ||
| 7 | Permeability Coefficient (m/s) | ≤ 5.0x10^-11 | ≤ 5.0x10^-12 | ≤ 1.0x10^-12 | |
| 8 | Hydrostatic Pressure Resistance | 0.4MPa, 1h, no seepage | 0.6MPa, 1h, no seepage | 0.6MPa, 1h, no seepage | |
| 9 | Filtration Loss (ml) | ≤ 18 | ≤ 18 | ≤ 18 | |
| 10 | Durability of Bentonite | ≥20 | ≥20 | ≥20 | |
Application:
Advantage:
Package:
we will pack all products well as customers' requirement, we gurantee the customer will receive good product. Generally, products are packed in woven bags and tight belts.
Delivery:
all products will be delivered in time according to customer's requirement, generally shipped in 7 days, we can also deliver in weekeds and some holidays..
Supply Ability:
25.5 tons per day.
