| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SASO, SONCAP |
| Model Number: | 150/0.25 |
| Minimum Order Quantity: | 2000 Square Meters |
| Price: | USD 1.35-4.5 Square Meter |
| Packaging Details: | Rolling in Woven Bag, Width 2-6m, Length 50-100m |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Material: | PP, HDPE, PET, Polyester | Length: | 100m |
|---|---|---|---|
| Width: | 5m | Product Name: | 0.30-0.60mm Reinforce Composite Geomembrane Non Woven Fabric Geotextile |
| Application: | Sewage Plant, Chemical Industry | Function: | Reinforce, Drainage, Filter |
| Roll Length: | 50m | ||
| High Light: | sewage plant Composite Geomembrane,Reinforce Composite Geomembrane,sewage plant Non Woven Fabric Geotextile |
||

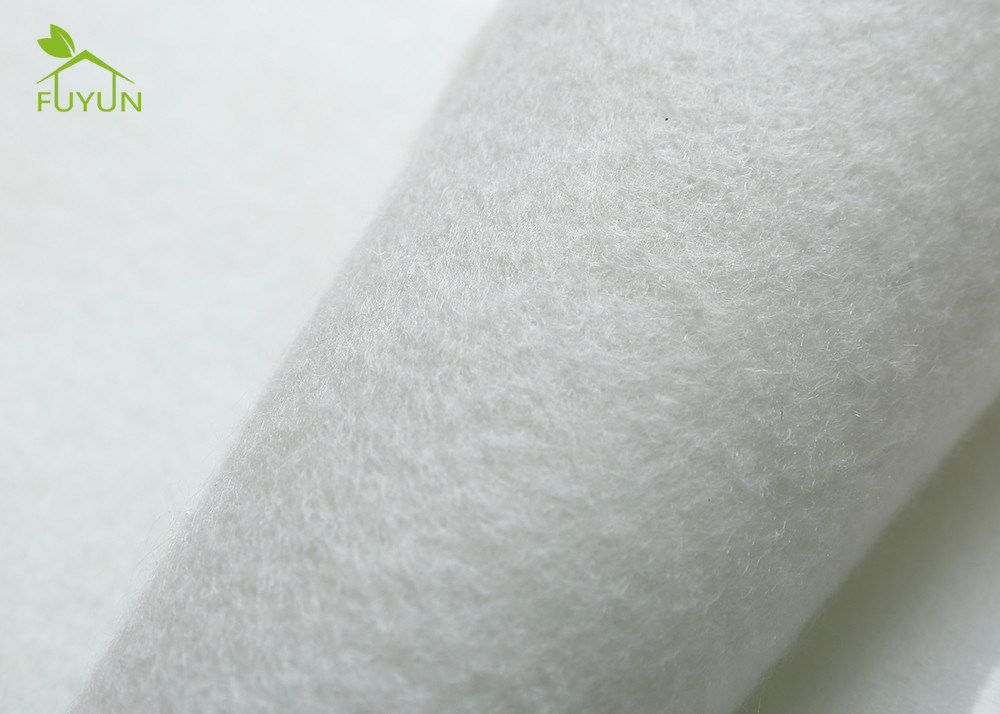

0.30-0.60mm Reinforce Composite Geomembrane Non Woven Fabric Geotextile
Quick Detail:
weight: 400-1000g/㎡
thickness: 0.2-0.8mm
function: Isolation, Drainage, Anti-seepage, Guard, Reinforce, filtering
application: sewage plant, chemical industry
Product Description:
Composite geomembrane is a kind of composite product, which is generally divided into 2-cloth-1-film and 1-cloth-1-film. 2-cloth-1-film refers to that the upper and lower sides of geomembrane are composite with geotextile, and 1-cloth-1-film refers to that one side (upper or lower side) of geomembrane is composite with geotextile. Because the middle waterproof layer (geomembrane) of composite geomembrane is protected by geotextile, it can be used in field anti-seepage engineering with complex construction environment.
Composite geomembrane can be used for seepage control of various water conservancy projects, such as river seepage prevention project, river treatment project, artificial lake seepage control project, landscape lake seepage prevention project, dike seepage prevention project, canal seepage prevention project etc.
Product Specification:
Technical Parameter:
| Weight(g/㎡) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |
| PE CG Thickness(mm) | 0.20-0.35 | 0.30-0.60 | ||||||
| Common Specs | 1-cloth-1-film(g/㎡) | 150/0.25 | 200/0.3 | 300/0.3 | 300/0.4 | 300/0.5 | 400/0.5 | 400/0.6 |
| 2-cloth-1-film(g/㎡) | 100/0.2/100 | 100/0.3/100 | 50/0.3/150 | 200/0.3/200 | 200/0.4/200 | 200/0.5/200 | 50/0.5/250 | |
| Quality Deviation per Unit Area(%)≤ | -10 | |||||||
| Fracture Strength(KN/m) ≧ | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | |
| Break Elongation(%) | 30-100 | |||||||
| Tear Strength(KN) ≧ | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 | |
| CBR Breakout Force(KN) ≧ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 | |
| Vertical Permeability Coefficient(cm/s) ≤ | 10-12 | |||||||
| Hydrostatic Pressure Resistance (Mpa)≧ | 0.4-0.6 | 0.6-1.2 | ||||||
| 1. PE CG Thickness(mm) 0.2-0.8mm | ||||||||
| 2.According to the technical requirements of the demander, the welding edge of composite geomembrane can be reserved or not | ||||||||
Advantage:
Application:
It is mainly used for environmental sanitation, water conservancy, municipal engineering, garden, landscape, petrochemical, mining, salt industry, agriculture, aquaculture waterproof and anti leakage.
It is also applicable in the building basement, underground warehouse, underground garage moisture proof, membrane pile cofferdam, reclamation project and docks engineering.
Package:
Rolling with pipe in core, Double layer woven Bags with strengthened belt for unloading convenience and protecting.
Delivery:
Delivery product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons
Supply Ability:
25 Tons Per Day
