0.5-8m/Min Pvc Fabric Welding Machine

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB
Model Number: SWT-NSGM1
Minimum Order Quantity: 1 Set
Price: USD 1000-2000 set
Packaging Details: waterproof box
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 50 Sets per Day
Detail Information
Frequency: 50/60Hz Application: Geomembrane Plastic HDPE LDPE PVC
Warranty: 2 Years Product Name: High Quality 50/60Hz Geomembrane Plastic HDPE LDPE PVC Hot Wedge Welding Machine SWT-NSGM1
Welding Speed: 0.5-8 M/min Voltage: 220 V ± 5%
High Light:

8m/min Pvc Fabric Welding Machin


LDPE EVA plastic welding machine


8m/min plastic welding machine

Product Description

High Quality 50/60Hz Geomembrane Plastic HDPE LDPE PVC Hot Wedge Welding Machine SWT-NSGM1



Quick Detail:


machine size: 350*267*267mm

weight: 7.5kg

frequency: 50/60Hz

voltage: 220 V ± 5%

power: 1200w

welding speed: 0.5-8 m/min



Product Description:


Geomembrane Hot Wedge Welding Machines are also called Hot Air Welding, Hot wedge welders,Membrane Hot Wedge Welder. SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.


The welding machine has excellent performance, easy operation, fast welding speed and good welding quality. Widely used in highways, railways, tunnels, Bridges, reservoirs, buildings, artificial lakes, Bridges, swimming pools, aquaculture ponds, landfills and other waterproof engineering. The automatic welding machine is designed to weld film/membrane, including HDPE LDPE, PVC, EVA Geomembrane, Composite Geomembrane. Small light, easy to operate. it can be adjusted to accommodate the different thickness to make the welding stronger, avoid leakage. This machine is more suited to fast welding of large areas, such as landfill, pond liner, mining dam bottom liner welder.



Technical Parameters:


Item no.: SWT-NSGM1
Size 350*267*267mm
Weight 7.5KG
Voltage: 220V
Frequency: 50/60HZ
power 1200W
Welding Speed 0.5-8 m/min
Thickness of material 0.2-2.0 mm
Welding width 15 mm *2, interior cavity 20 mm
Overlap width 120 mm
Welding temperature
Seam Strength ≥85% base material ( tensile resistant in shear direction)





Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.

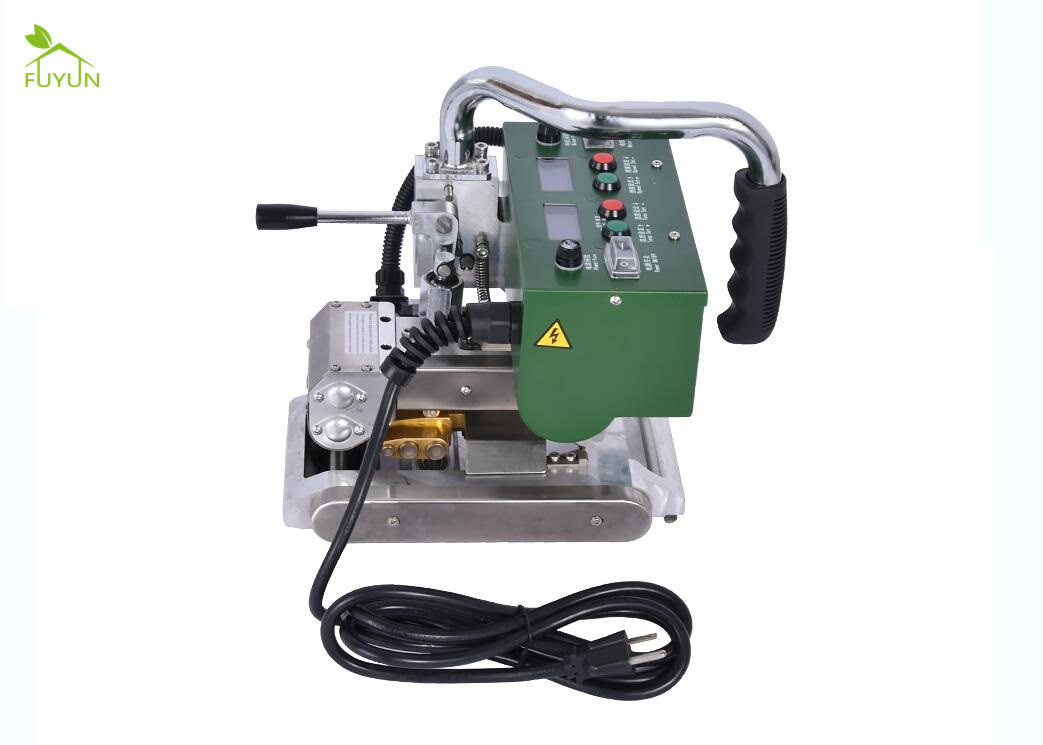

0.5-8m/Min Pvc Fabric Welding Machine 0



  • excellent performance
  • easy operation
  • good welding quality
  • available for welding different thickness


Package & Delivery:


The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.


0.5-8m/Min Pvc Fabric Welding Machine 1



Why choose us?


0.5-8m/Min Pvc Fabric Welding Machine 2




0.5-8m/Min Pvc Fabric Welding Machine 3
