| Place of Origin: | Hefei,China |
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SASO, SONCAP |
| Model Number: | 150/0.25 |
| Minimum Order Quantity: | 2000 Square Meters |
|---|---|
| Price: | USD 0.25-4.55 Square Meter |
| Packaging Details: | Rolling in Woven Bag, Width 2-6m, Length 50-100m |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Material: | Polypropylene, PP, Polyester, HDPE, PET | Length: | 50m |
|---|---|---|---|
| Width: | 6m | Product Name: | 1mm Thickness Composite Geomembrane 6m Width Soil Stabilization Fabric |
| Application: | Drainage, Waterproof, Reinforce | Function: | Protection,Waterproofing,anti-seepage,isolation |
| Weight: | 500g/m2 | ||
| High Light: | Subway Construction Composite Geomembrane,6m Composite Geomembrane,6m Soil Stabilization Fabric |
||

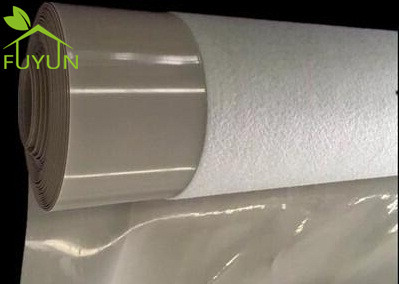

1mm Thickness Composite Geomembrane 6m Width Soil Stabilization Fabric
Quick Detail:
weight: 500g/㎡
thickness: 0.25mm
function: Isolation, Drainage, Anti-seepage, Guard, Reinforce
application: road foundation, subway construction
Product Description:
Composite geomembrane is a kind of composite product, which is generally divided into 2-cloth-1-film and 1-cloth-1-film. 2-cloth-1-film refers to that the upper and lower sides of geomembrane are composite with geotextile, and 1-cloth-1-film refers to that one side (upper or lower side) of geomembrane is composite with geotextile. Because the middle waterproof layer (geomembrane) of composite geomembrane is protected by geotextile, it can be used in field anti-seepage engineering with complex construction environment.
It can meet the needs of anti-seepage, isolation, reinforcement, crack prevention and reinforcement in water conservancy, municipal engineering, construction, transportation, subway, tunnel and engineering construction. It is commonly used for seepage control of dykes and drainage ditches, as well as anti pollution treatment of waste dump.
Product Specification:
Technical Parameter:
| Weight(g/㎡) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |
| PE CG Thickness(mm) | 0.20-0.35 | 0.30-0.60 | ||||||
| Common Specs | 1-cloth-1-film(g/㎡) | 150/0.25 | 200/0.3 | 300/0.3 | 300/0.4 | 300/0.5 | 400/0.5 | 400/0.6 |
| 2-cloth-1-film(g/㎡) | 100/0.2/100 | 100/0.3/100 | 50/0.3/150 | 200/0.3/200 | 200/0.4/200 | 200/0.5/200 | 50/0.5/250 | |
| Quality Deviation per Unit Area(%)≤ | -10 | |||||||
| Fracture Strength(KN/m) ≧ | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | |
| Break Elongation(%) | 30-100 | |||||||
| Tear Strength(KN) ≧ | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 | |
| CBR Breakout Force(KN) ≧ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 | |
| Vertical Permeability Coefficient(cm/s) ≤ | 10-12 | |||||||
| Hydrostatic Pressure Resistance (Mpa)≧ | 0.4-0.6 | 0.6-1.2 | ||||||
| 1. PE CG Thickness(mm) 0.2-0.8mm | ||||||||
| 2.According to the technical requirements of the demander, the welding edge of composite geomembrane can be reserved or not | ||||||||
Advantage:
Application:
Package:
Rolling with pipe in core, Double layer woven Bags with strengthened belt for unloading convenience and protecting.
Delivery:
Delivery product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons
Supply Ability:
25 Tons Per Day
Factory Show:
FAQ:
