Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control

Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control

  • Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control
  • Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control
  • Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control
  • Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control
Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control
Product Details:
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, CE,BV, EN
Model Number: 30-150KN
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Square Meters
Price: USD 0.45-1.0 Square Meter
Packaging Details: Woven Bags, 50-100m/roll, Width 1-6m, Customized
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000 Square Meters per Day
Contact Now
Detailed Product Description
Color: Black Length: 50-100m/roll, Customized
Width: 1-6m, Customized Scalation Rate: Less Than 4%
Temperature Resistance: From -100 To 280 ℃ Package: Pp Bag, Customized
Tensile Strength: 30-150KN/m Feature: Temperature Resistance, Anti-static, Light Weight, Long Life
Certification: SGS,EN,CE, ISO, GB Material: High Molecular Polymer
High Light:

30KN Geogrid Fabric For Retaining Walls

,

Geogrid Fabric For Retaining Walls

,

Geogrid Erosion Control

Steel Plastic Compound 30-150KN Biaxial Bi Directional Strengthening Ground Controlling Soil Geogrid





Quick Detail:



material: high molecular polymer

function:  reinforce, strengthen road, prevent road cracks

advantage: high temperature resistance, low cold resistance, anti-aging and corrosion resistance



Product Description:

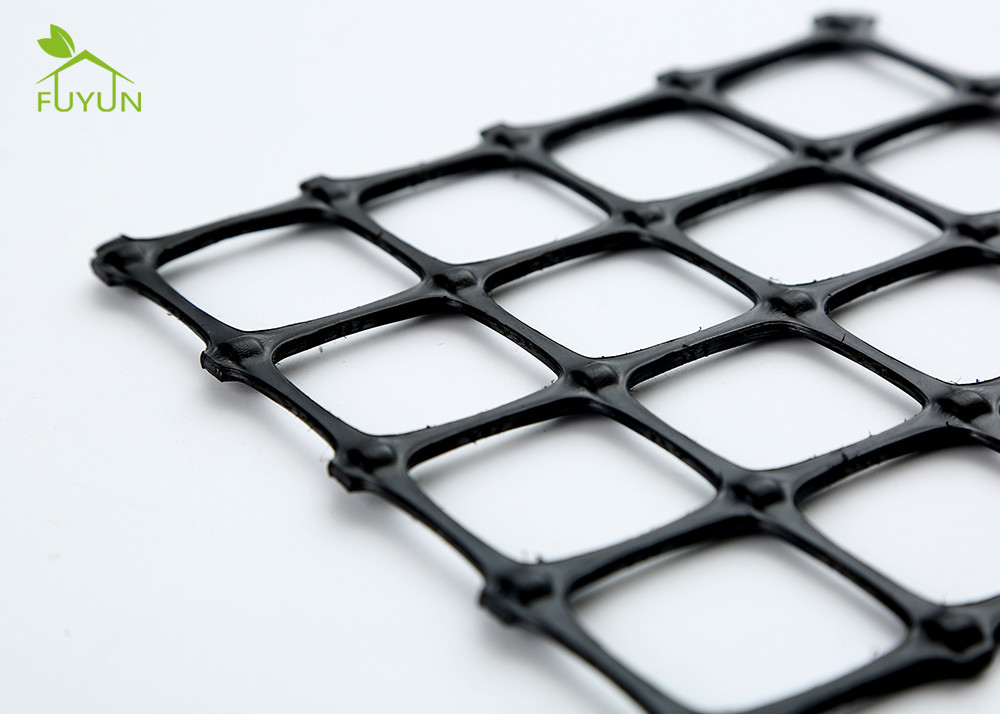

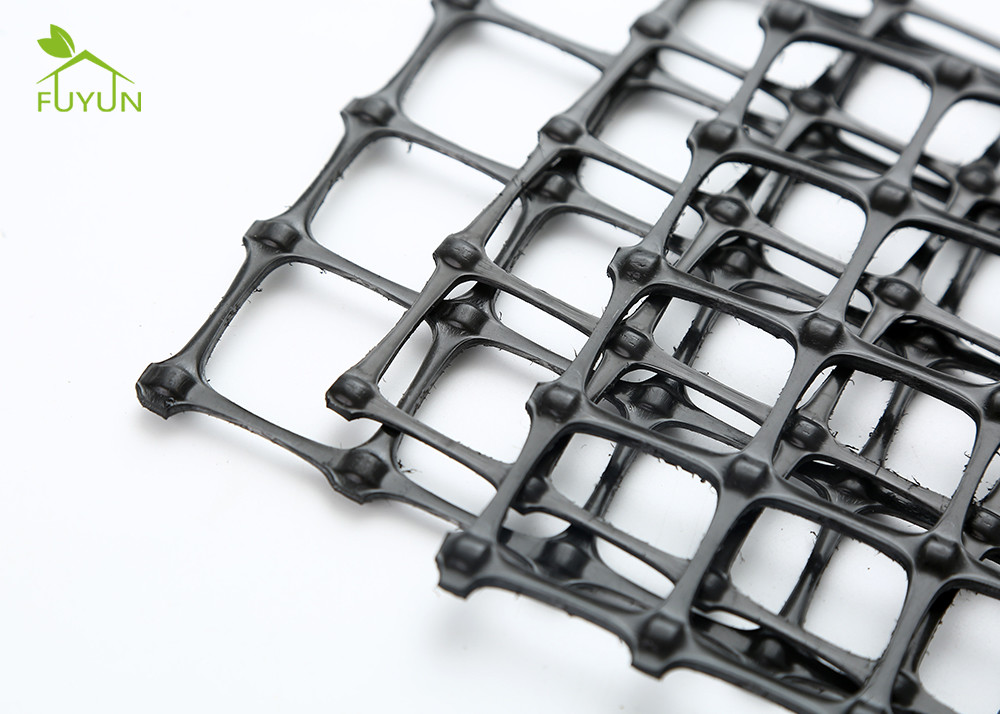

Bi directional geogrid is made of high molecular polymer through extrusion, forming plate, punching process, and then through longitudinal and transverse tension.



The material has great tensile strength in both longitudinal and transverse directions. This kind of structure can also provide a more effective bearing and diffusion of force in the soil, which is suitable for the reinforcement of large area permanent bearing foundation.



It also has high tensile strength and low elongation on both sides of the warp and weft, and has excellent properties such as high temperature resistance, low cold resistance, anti-aging and corrosion resistance.It is widely used in the reinforcement of asphalt pavement, cement pavement and subgrade, railway subgrade, dam slope protection, airport runway, sand control and other projects.

Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control 0





Technical Parameter:



1 Type TGDG30-30 TGDG50-50 TGDG80-80 TGDG100-100 TGDG120-120
2 Biaxial Ultimate Tensile Strength (KN/m≥) 30 50 80 100 120
3 Biaxial Ultimate Elongation (%≤) 3 3 3 3 3
4 Tensile Strength of Elongation at 1% (KN/m≥) 23 36 48 63 81






Application:

  • dykes
  • subgrade
  • slope protection

  • tunnel wall reinforcement

  • permanent bearing foundation reinforcement of large airports, parking lot, wharf yard


Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control 1


Advantage:

  • Increase the bearing capacity of road (ground) foundation and extend its service life
  • The construction is convenient, time-saving and labor-saving, the construction period is shortened, and the sequence cost is reduced
  • Prevention of cracks in culverts
  • Strengthen soil slope and prevent soil erosion
  • Reduce the thickness of cushion and save the cost
  • Stability and greening environment of grass net mat supporting slope
  • The bidirectional geogrid can replace the metal mesh and be used in the underground frame top mesh of coal mine


Package:

Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control 2


Delivery:

Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It can be shipped in 7 days in normal season.

Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control 3


Factory Show:

Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control 4


Supply Ability:

more than 25 tons per day


Why Choose US:

Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control 5
FAQ:

​​

Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control 6
