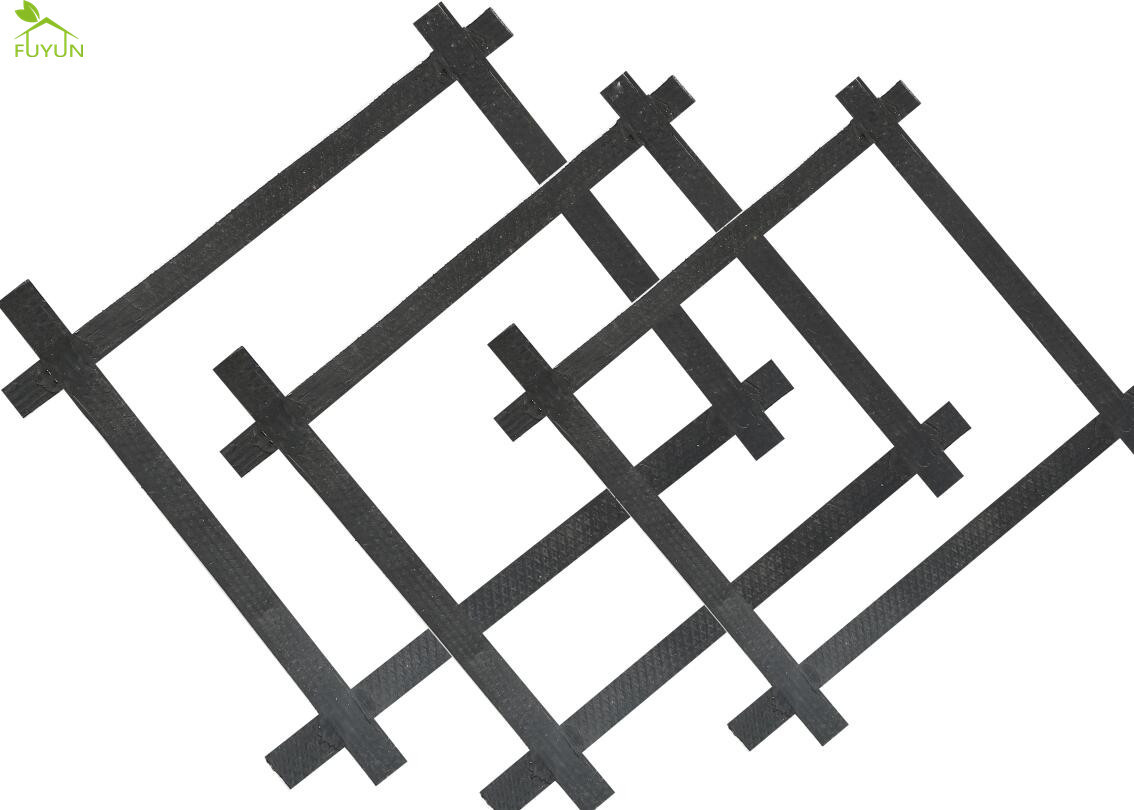

140KN One Way Fiberglass Geogrid Mesh Plastic For Dangerous Goods Stacking Yard

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: CE, EN, ISO, GB, BV,
Model Number: 140KN
Minimum Order Quantity: 1500 Square Meters
Price: USD 0.58-1.95 Square Meter
Packaging Details: Woven Bags With Belt Packed, 100m/roll, Width 6m, Customized
Delivery Time: 8 Days
Payment Terms: T/T, L/C, Paypal, D/A, D/P, Western Union, MoneyGram,
Supply Ability: 10000 Square Meters per 8 hours
Detail Information
Scalation Rate: Less Than 3.95% Temperature Resistance: From -110 To 279.5 ℃
Application: Dangerous Goods Stacking Yard Tensile Strength: 140KN/m
Product Name: Steel Plastic 140KN Dangerous Goods Stacking Yard Uniaxial Black Geogrid
High Light:

140KN Fiberglass Geogrid

,

One Way Fiberglass Geogrid

,

One Way Plastic Geogrid Mesh


Product Description

Steel Plastic 140KN Dangerous Goods Stacking Yard Uniaxial Black Geogrid





Quick Detail:



material: polypropylene (PP)

function: reinforce ribs and soil, strengthen road and pavement, prevent road cracks and brokens

advantage: high temperature resistance, low cold resistance, high resistance anti-aging and corrosion

Product Description:



The product is hdpe uniaxial geogrid, which is made in Polypropylene (PP) in square apertures. High tensile strength and optimised geometry of ribs make it equal to any other similar material. The reinforcement of hdpe uniaxial geogrid lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. HDPE uniaxial geogrid can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.



The material has very high tensile strength in two directions of longitudinal and transverse. This special structure providing a more effective bearing and diffusion of force in the soil is suitable for enhancing large area permanent bearing foundation.





Technical Parameter:



Index Properties Test Method Unit GG15-15 GG20-20 GG30-30 GG40-40
MD TD MD TD MD TD MD TD
Polymer -- -- PP PP PP PP
Minimum Carbon Black ASTM D 4218 % 2 2 2 2
Tensile Strength at 2% Strain ASTM D 6637 Kn/m 5 5 7 7 10.5 10.5 14 14
Tensile Strength at 5% Strain ASTM D 6637 Kn/m 7 7 14 14 21 21 28 28
Ultimate Tensile Strength ASTM D 6637 Kn/m 15 15 20 20 30 30 40 40
Strain @ Ultimate Strength ASTM D 6637 % 13 10 13 10 13 10 13 10
Structural Integrity plastic geogrid
Junction Efficiency GRI GG2 % 93 93 93 93
Flexural Rigidity ASTM D 1388 Mg-cm 700000 1000000 3500000 10000000
Aperture Stability COE Method mm-N/deg 646 707 1432 2104





Application:

  • railway
  • dykes
  • airport
  • subgrade
  • slope protection

  • tunnel wall reinforcement

  • permanent bearing foundation reinforcement of wharf yard large airports, parking lot, wharf yard

  • highway,  embankment, abutment, construction access, wharf, revetment, flood dike, dam, beach treatment, freight yard, slag yard, sports ground, environmental protection building, soft soil foundation reinforcement, retaining wall, slope protection and pavement crack resistance and other civil engineering

  • reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement, not easy to generate static electricity, and flammability property good in the coal mine.


140KN One Way Fiberglass Geogrid Mesh Plastic For Dangerous Goods Stacking Yard 0


Advantage:

  • Stability and greening environment of grass net mat and supporting slope
  • Preventing of cracks in culverts
  • Increase the bearing capacity of road (ground) foundation and extend its service life
  • The construction is convenient, time-saving and labor-saving, the construction period is shortened, and the sequence cost is reduced
  • Strengthen soil slope and prevent soil erosion
  • Reduce the thickness of cushion and save the cost
  • Stability and greening environment of grass net mat supporting slope
  • The bidirectional geogrid can replace the metal mesh and be used in the underground frame top mesh of coal mine


Package:

Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

 140KN One Way Fiberglass Geogrid Mesh Plastic For Dangerous Goods Stacking Yard 1

Delivery:

Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It can be shipped in 7 days in normal season.

140KN One Way Fiberglass Geogrid Mesh Plastic For Dangerous Goods Stacking Yard 2


Factory Show:

140KN One Way Fiberglass Geogrid Mesh Plastic For Dangerous Goods Stacking Yard 3


Supply Ability:

more than 25 tons per day


Why Choose US:

140KN One Way Fiberglass Geogrid Mesh Plastic For Dangerous Goods Stacking Yard 4
FAQ:

​​

140KN One Way Fiberglass Geogrid Mesh Plastic For Dangerous Goods Stacking Yard 5
