35m Length GCL Geotextile Pond Liner

China hefei fuyun environmental sci-tech co.,ltd. certification
China hefei fuyun environmental sci-tech co.,ltd. certification
I'm Online Chat Now

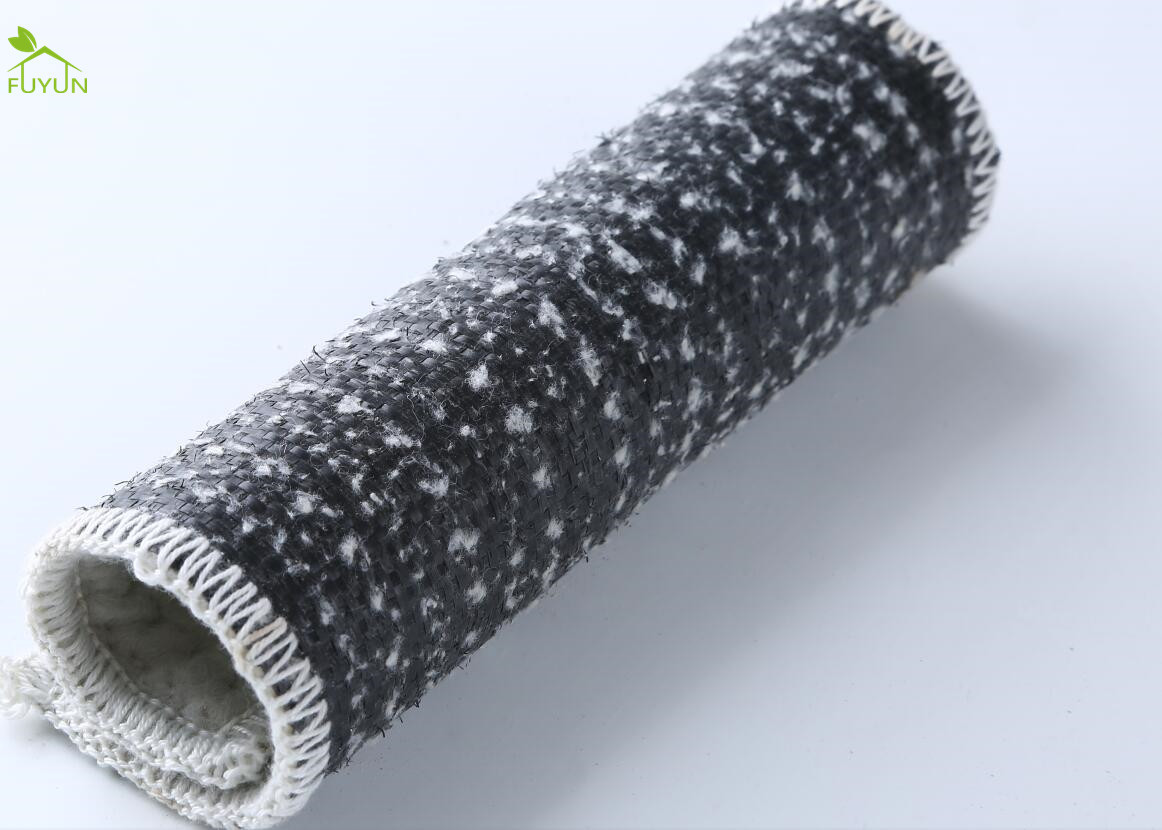

35m Length GCL Geotextile Pond Liner

large.img.alt
small.img.alt small.img.alt

Large Image :  35m Length GCL Geotextile Pond Liner

Product Details:

Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: CE, ISO, GB, EN, BV
Model Number: 35×2

Payment & Shipping Terms:

Minimum Order Quantity: 1560 Square Meters
Price: USD 1.38-4.6 Square Meter
Packaging Details: Woven Bag and Tight Belt Package, roller size, width: 1-5m, length: 20-50m
Delivery Time: 7 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 34000 Square Meters per Day
Detailed Product Description
Application: Irrigation Channel Material: Geotextile, HDPE Geomembrane Fibers, Bentonite
Product Name: Irrigation Channel Antiseepage Water Save Geosynthetic Clay Liner Blanket 35×2 GCL Function: Water Saving, Antiseepage
Size: 35m*2m Package: Woven Bag And Tight Belt Package, Roller Size, Width: 1-5m, Length: 20-50m
High Light:

35m Geotextile Pond Liner

,

Water Saving Geotextile Pond Liner

,

35m Pond Liner Membrane



Irrigation Channel Antiseepage Water Saving Geosynthetic Clay Liner Blanket 35×2 GCL





Quick Detail:



component: geotextile, HDPE geomembrane fibers, bentonite

size: 35*2m

function: water saving, antiseepage

application: irrigation channel



Product Description:



GCL (bentonite waterproof geosynthetic clay liners) produced by our company is also called bentonite composite waterproof pad or blanket. The bentonite waterproof blanket is composed of four layers. The upper and lower layers are geotextiles, which mainly play the role of protection and reinforcement, so that it has a certain overall puncture strength and tensile strength; The middle layer is sodium bentonite, which is made of natural clay mineral inorganic materials. It has high expansibility and high water absorption capacity, and low water permeability when wet; The bottom layer is a thin HDPE geomembrane, which is mainly used for anti-seepage.



The bentonite waterproof blanket adopts a special needling method. The special needling process is to make the coarse fiber pass through the bentonite from the upper geotextile and fix it on the lower geotextile. By combining the four parts, the integrity of the bentonite waterproof blanket is effectively enhanced, and the shear strength and tensile strength of the bentonite waterproof blanket are greatly enhanced, which makes the bentonite waterproof blanket can be used alone, It can also be combined with compacted clay impervious core or geomembrane.



FUYUN GCL can be constructed under the negative temperature (-20℃), while the traditional waterproof material cannot, because bentonite is inorganic material having better durability than that of organic waterproof material.





Technical Parameter:



No. Item Technical Index
GCL-NP GCL-OF GCL-AH
1 GCL (g/㎡) 4000 and not less than the specified value 4000 and not less than the specified value 4000 and not less than the specified value
2 Swelling Index of Bentonite (ml/2g) 24 24 24
3 Absorption of Blue ( g/100g) 30 30 30
4 Tensile Strength (N/100mm) 600 700 600
5 Elongation at Maximum Load % 10 10 8
6 Peel Strength(N/100mm) Non Woven and Woven Fabrics 40 40 /
PE Film and Non Woven Fabrics / 30 /
7 Permeability Coefficient (m/s) 5.0x10^-11 5.0x10^-12 1.0x10^-12
8 Hydrostatic Pressure Resistance 0.4MPa, 1h, no seepage 0.6MPa, 1h, no seepage 0.6MPa, 1h, no seepage
9 Filtration Loss (ml) 18 18 18
10 Durability of Bentonite 20 20 20






Application:

  • irrigation channel

  • artificial lake waterscape

  • landfill

  • oil depot & storage tank

  • roof garden,

  • underground garage

  • swimming pool

  • chemical storage yard

35m Length GCL Geotextile Pond Liner 0

Advantage:



  • The seepage resistance is better than bentonite, and can stop water with water, and has high hydrostatic pressure resistance.
  • Bentonite is a kind of natural inorganic material, which has no aging reaction and good durability.

  • It belongs to environmental protection material and will not cause any adverse impact on the environment,It is buried underground, and has no pollution to water quality and soil.

  • It has the advantages of simple construction, low requirement for base course, natural overlapping and construction under sub zero temperature.

  • In the construction of elevation or inclined plane, fix it with nails and washers, and lap it as required.

  • The unique self-healing property makes use of the swelling property of bentonite when it meets with water, which can self heal and repair the defect or damage of impervious layer.

  • It is easy to repair. Even after the completion of waterproof Engineering (anti-seepage engineering), if the waterproof layer is accidentally damaged, as long as the damaged parts are simply repaired, the perfect waterproof performance can be obtained.

  • The unique air permeability is conducive to the exchange of water and air, and makes the plants around the water grow healthily.



​​Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protection.



35m Length GCL Geotextile Pond Liner 1





Delivery:



Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It can be shipped in 7 days.



35m Length GCL Geotextile Pond Liner 2





Supply Ability:



25 tons per day.





Factory Show:



35m Length GCL Geotextile Pond Liner 3

35m Length GCL Geotextile Pond Liner 4



FAQ:



35m Length GCL Geotextile Pond Liner 5



Why Choose US:



35m Length GCL Geotextile Pond Liner 6
