| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 500G |
| Minimum Order Quantity: | 2050 Square Meters |
| Price: | USD 0.15-1.05 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Non Woven River Bank Construction Short Filament Geotextile Fabric 500g Filtration | Weight: | 500 G/㎡ |
|---|---|---|---|
| Material: | Non Woven Fabric | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | 500g Filtration Nonwoven Geotextile Fabric,Geotextile Fabric 500g Filtration,River Bank Construction Geotextile Fabric |
||

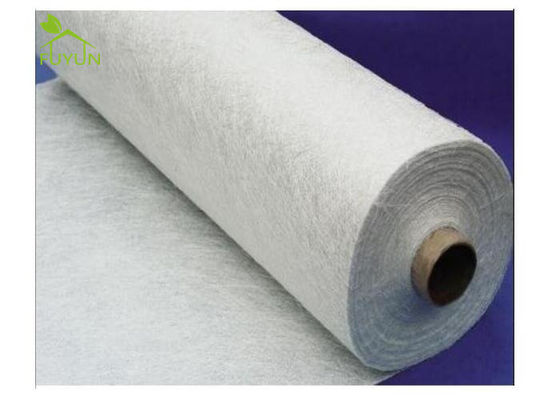

Non Woven River Bank Construction Short Filament Geotextile Fabric 500g Filtration
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 2.0mm
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach, river bank
Product Description:
Fuyun Nonwoven geotextiles are made from high-quality polypropylene staple fibers that are needle-punched to form a dimensionally stable fiber network. Nonwovens are widely recognized as the choice for drainage applications, pavement interlayers and separation/stabilization beneath paved and unpaved roads. Nonwovens are almost always a better choice for survivability and performance.
Geotextiles are synthetic and permeable materials used in civil construction systems for improved soil characteristics. Geotextiles make poor soils more suitable for construction, as they have the capability to separate, filter, reinforce, cover, and drain the soil.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
Used in project of railway, highway, dam, coastal beach, etc for reinforcement, filtration, seperation and drainage, specially used in saline and alkaline land, marshe and landfill.
Advantage:
High strength, high UV resistance, extreme high temperature resistance, high elongation, anti-aging, abrasion resistance, anti-acid and alkali, good flexibility and easy to use for construction.
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
