|Place of Origin:||Hefei, China|
|Certification:||CE, ISO, SGS, BV, GB, ASTM|
|Minimum Order Quantity:||30000 Square Meters|
|Price:||USD 0.15-3.05 Square Meter|
|Packaging Details:||packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal|
|Supply Ability:||28.5 Tons per Day|
|Product Name:||80Kn/m PP Polypropylene Woven Geotextile Fabric Anti Corrosion 300gsm In Reinforcement Ground||Weight:||300gsm|
|Material:||Pet, Pp||Rolling Size:||Width: From 1m To 6m, Length: From 60m To 260m|
|Function:||Protect Water, Isolate, Reinforce, Drainage, Separate Soil||Application:||Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam|
|Origin:||Made In China|
80Kn/m Geotex Fabric,
Anti Corrosion Geotex Fabric,
Woven Geotextile Fabric 300gsm

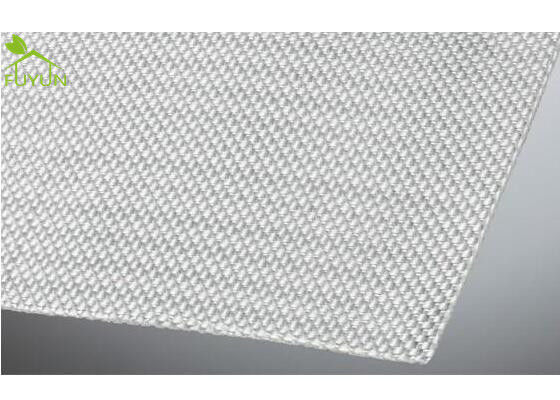

80Kn/m PP Polypropylene Woven Geotextile Fabric Anti Corrosion 300gsm In Reinforcement Ground
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach
PP Woven Fabric which incorporate round strands that are extruded. It is composed of hightenacity polypropylene yarns, which are woven into a network such that the yarns retain their relative position. Monofilament woven geotextile is preferred for applications where both strength and filtrationare a concern, such as shoreline rip rap applications.
PP Woven Fabric, made from Polypropylene is used for a wide range of commercial, industrial, and manufacturing applications.
These fabrics possess high tear resistance due to multiple layering which makes them strong, economical and reliable packaging options for transporting commodities.
|Breaking Strength in MD(KN/m)||35||50||65||80||100||120||140||160||180||200||250|
|Breaking Strength in CD(KN/m)||35||50||65||80||100||120||140||160||180||200||250|
|Elongation at Break(%)||MD=35; CD=30|
|Width Variation, %||±0.1|
|CBR Mullen Burst Strength, KN||2.0||4.0||6.0||8.0||10.5||13.0||15.5||18.0||20.5||23.0||28.0|
|Seive Size O90(O95) mm||0.07-0.50|
|Tearing Strength, KN||0.5||0.8||1.1||1.3||1.5||1.7||1.9||2.1||2.3||2.5||3|
1. It is widely used in river, coast, harbor, highway, railway, wharf, tunnel, bridge and other geotechnical engineering.
2. It could meet all kinds of geotechnical projects needs such as filtration, separation, reinforcement, protection and so on
1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeavility: could control the sieve size to retain certain permeability
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
all products will be delivered in time according to the requirement,
