| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 400gsm |
| Minimum Order Quantity: | 30000 Square Meters |
| Price: | USD 0.15-3.05 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | 100Kn/m PP Polypropylene Woven Geotextile Fabric High Strength Low Deformation 400gsm In Reinforcement Ground | Weight: | 400gsm |
|---|---|---|---|
| Material: | Pet, Pp | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | 100Kn/M Woven Geotextile Fabric,Woven Geotextile Fabric Low Deformation,Woven Geotextile Fabric 400gsm |
||
100Kn/m PP Polypropylene Woven Geotextile Fabric High Strength Low Deformation 400gsm In Reinforcement Ground
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
weight: 400g
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach
Product Description:

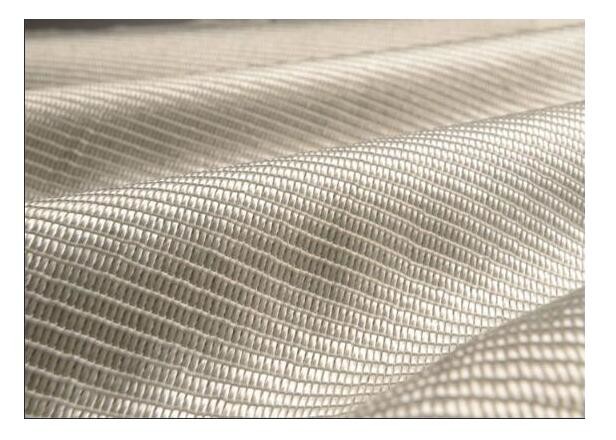

Pet woven geotextile fabric is made of pre-stressed multi-filament polyester or p olypropylene yarns entwined in the longitudinal direction of polyester and in a transverse direction with each other by woven method and entangled into stable fabric pattern by special warp straight matting process.
PP Woven Fabric, made from Polypropylene is used for a wide range of commercial, industrial, and manufacturing applications.
These fabrics possess high tear resistance due to multiple layering which makes them strong, economical and reliable packaging options for transporting commodities.
Technical Parameters:
| Item | Specification | ||||||||||
| Material | Polyester | ||||||||||
| Breaking Strength in MD(KN/m) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 |
| Breaking Strength in CD(KN/m) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 |
| Elongation at Break(%) | MD=35; CD=30 | ||||||||||
| Width Variation, % | ±0.1 | ||||||||||
| CBR Mullen Burst Strength, KN | 2.0 | 4.0 | 6.0 | 8.0 | 10.5 | 13.0 | 15.5 | 18.0 | 20.5 | 23.0 | 28.0 |
| Seive Size O90(O95) mm | 0.07-0.50 | ||||||||||
| Tearing Strength, KN | 0.5 | 0.8 | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.1 | 2.3 | 2.5 | 3 |
| Weigth, g/m2 | 140 | 220 | 260 | 320 | 390 | 450 | 530 | 600 | 680 | 760 | 950 |
Application:
1. It is widely used in river, coast, harbor, highway, railway, wharf, tunnel, bridge and other geotechnical engineering.
2. It could meet all kinds of geotechnical projects needs such as filtration, separation, reinforcement, protection and so on
Advantage:
1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeavility: could control the sieve size to retain certain permeability
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
