| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 500G |
| Minimum Order Quantity: | 2550 Square Meters |
| Price: | USD 0.65-1.55 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Short Filament Nonwoven Geotextile Fabric 500g Filtration In Airport Ground Stabilization | Weight: | 500 G/㎡ |
|---|---|---|---|
| Material: | Non Woven Fabric | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | Short Filament Geo Fabric,Nonwoven Geotextile Fabric 500g,Airport Ground Stabilization Geo Fabric |
||

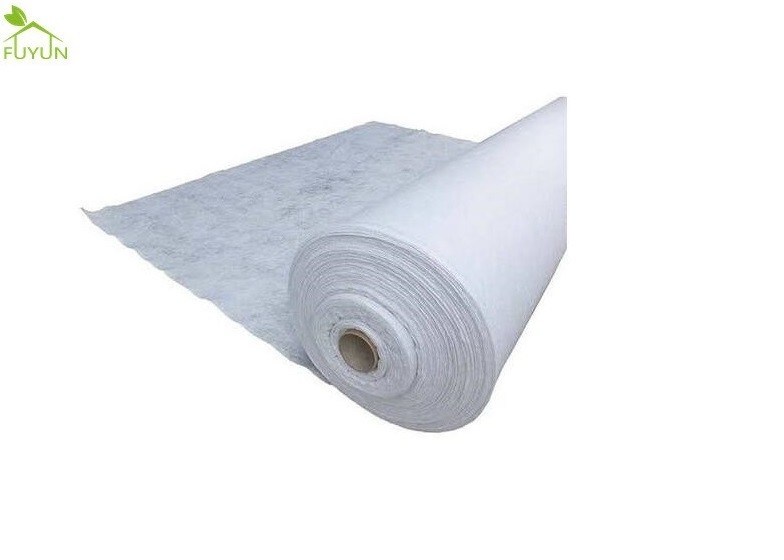

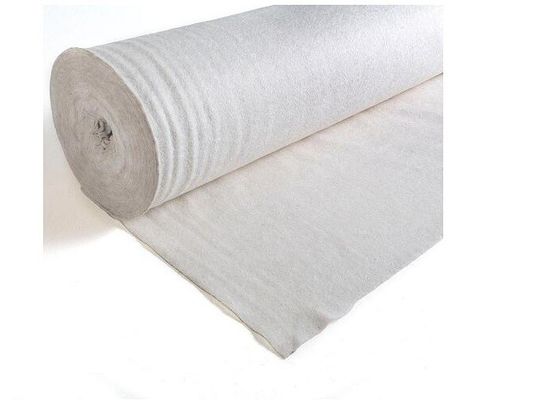

Short Filament Nonwoven Geotextile Fabric 500g Filtration In Airport Ground Stabilization
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 2.0mm
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach
Product Description:
Non woven geotextile is a type of stabilization fabric made from synthetic polypropylene most often used for drainage, filtration, erosion control, and sediment reinforcement. Nonwoven geotextile drainage fabric can be expertly used for filtering applications. Because of non woven geotextile filter fabric's design, its flow through rate is high, allowing water to pass through while retaining debris and pollutants. Non woven geotextile is a durable erosion control fabric made of synthetic materials for a variety of applications.
Lighter weight geotextile, such as 4 oz non-woven geotextile fabric have been utilized in drainage and landscaping. Further, lighter weight nonwoven geotextile fabric can be applied for asphalt coats to inhibit cracking in asphalt. Non-woven geotextile can be applied as a layer of support. For medium-weight geotextile, such as 6 oz non-woven geotextile fabric and 8 oz non-woven geotextile fabric, applications can contain stabilization, erosion control, and sewerage projects.
Filtration:
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
Reinforcement:
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
Sealing:
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
