| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 200/50 kn/m |
| Minimum Order Quantity: | 30000 Square Meters |
| Price: | USD 0.35-5.05 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Landfills Protection Road Construction PET Woven Geotextile High Tensile Strength 200/50 KN/M | Weight: | 200/50 Kn/m |
|---|---|---|---|
| Material: | Pet, Pp | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | PET Geotextile 200/50 KN/M,Woven Geotextile High Tensile Strength,200/50 KN/M Woven Geotextile |
||

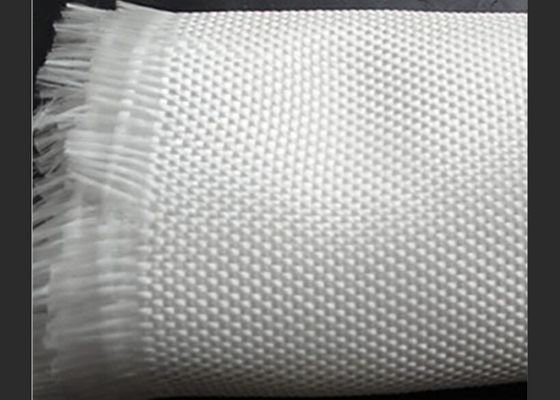

Landfills Protection Road Construction PET Woven Geotextile High Tensile Strength 200/50 KN/M
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
weight: 260g
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach
Product Description:
Polyester Woven Multifilament Geotextile are high strength woven geotextiles manufactured by weaving high tenacity polyester filament yarns into a dimensionally stable network.
PET woven geotextile is used for the subgrade stabilization of road, embankment, and railway construction, where shear failure occurs in only one direction. This fabric especially minimizes the soil behavior by using the straining function in the direction where shear failure takes place.
PET woven geotextile is used for an industrial complex, a port, and a field that uses dredged soil which receives forces from horizontal and vertical directions, It is specially woven. Fabric that can maintain a stable form by using high-strength interwoven fiber (in both horizontal and vertical directions) and can be widely used for reinforcement and separation.
Technical Parameters:
| Item | Specification | ||||||||||
| Material | Polyester | ||||||||||
| Breaking Strength in MD(KN/m) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 |
| Breaking Strength in CD(KN/m) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 |
| Elongation at Break(%) | MD=35; CD=30 | ||||||||||
| Width Variation, % | ±0.1 | ||||||||||
| CBR Mullen Burst Strength, KN | 2.0 | 4.0 | 6.0 | 8.0 | 10.5 | 13.0 | 15.5 | 18.0 | 20.5 | 23.0 | 28.0 |
| Seive Size O90(O95) mm | 0.07-0.50 | ||||||||||
| Tearing Strength, KN | 0.5 | 0.8 | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.1 | 2.3 | 2.5 | 3 |
| Weigth, g/m2 | 140 | 220 | 260 | 320 | 390 | 450 | 530 | 600 | 680 | 760 | 950 |
Application:
1. It is widely used in river, coast, harbor, highway, railway, wharf, tunnel, bridge and other geotechnical engineering.
2. It could meet all kinds of geotechnical projects needs such as filtration, separation, reinforcement, protection and so on
Advantage:
1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeavility: could control the sieve size to retain certain permeability
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
Factory Show:
Why Choose US:
FAQ:
