| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | GM13, ISO, GB, ASTM, SASO, SONCAP |
| Model Number: | 2.0MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.15-1.65 square meters |
| Packaging Details: | Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 20 Tons per Day |
| Thickness: | 2.0mm | Width: | 6m |
|---|---|---|---|
| Length: | 50m/roll | Application: | Taillings Pond, Exposed Ponds, Landfills, Sewage Plant, Urban Waste Dump |
| Material: | EVA, PVC, HDPE, Polyethylene | Function: | Antiseepage, Antileakage, Impermeable, Waterproof, Protect Environment |
| Color: | Smooth Black | Product Name: | 2.0mm Lake River Dams LDPE HDPE Geomembrane Liners Fabric Smooth Antiseepage System |
| High Light: | Thickness 2.0mm Geomembrane Fabric,Smooth HDPE Geomembrane Liners,2.0mm HDPE Geomembrane Liners |
||

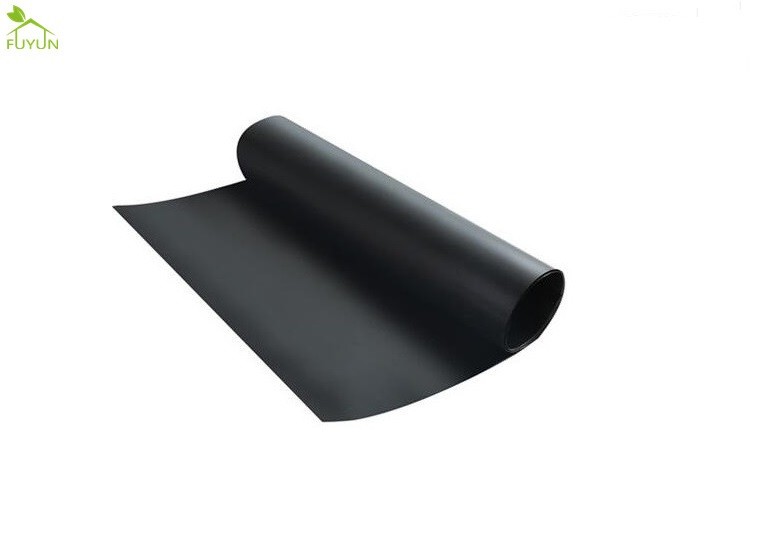

2.0mm Lake River Dams LDPE HDPE Geomembrane Liners Fabric Smooth Antiseepage System
Quick Detail:
Production Description:
HDPE geomembrane impermeable membrane has the advantages of high strength, good impermeability, corrosion resistance, strong aging resistance, and easy construction, etc. It is used in municipal domestic waste landfills with good reliability and application. Advantages of impermeable membrane: good permeability; corrosion resistance to most chemicals; good mechanical and welding characteristics; good working characteristics at low temperature; can be made into various thicknesses; not easy to be aged. Disadvantages: poor resistance to uneven subsidence; poor puncture resistance. Qualified HDPE impermeable geomembrane has strong resistance to seepage and its permeability coefficient can below. And it has strong chemical corrosion resistance, a mature manufacturing process, and is easy to weld on site.
Flexible polyethylene geomembrane provides higher flexibility and economy, can withstand greater uneven settlement, lighter welding construction conditions and higher cost performance. Such as aquaculture, golf courses, landscape lakes, reservoirs, rivers, etc.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Application:
Advantage:
1)High anti-seepage ratio:
HDPE geomembrane has a great anti-seepage effect unmatched by ordinary waterproof materials, and is recommended in some projects with high anti-seepage requirements.It's Permeability property is ≤1.0*10-13g●cm/(cm2●s●pa).
2)Chemical Stability:
It has excellent stability, acid and alkali resistance, salt solution, oil, alcohol, etc., and is mostly used in sewage treatment and landfills.
3)Anti plant root system
HDPE geomembrane has excellent puncture resistance and resists most plant roots. It is a must-choice product for planting roofs.
4)Aging resistance
HDPE geomembrane has excellent anti-aging, anti-ultraviolet, anti-decomposition capabilities. Oven aging at 85℃, standard OIT, 55% retained after 90 days, oven aging at 85℃,high pressure OIT, 80% retained after 90 days.
5)High Mechanic strength
It has good mechanical strength, and is first choice for seepage prevention in water conservancy projects. The tensile strength ,tear resistance, and puncture resistance properties all meet GRI-GM13 standard.
6)Low cost
Compared with other traditional materials, HDPE geomembrane has obvious cost advantages and is the best product for water storage and anti-seepage.
7)Environmental protection formulation
The raw materials used in Yingfan HDPE geomembrane have reached relevant international standards, and are non-toxic and environmentally friendly. Widely used in drinking water ponds, breeding ponds, etc.
8)Rapid construction
Compared with other traditional materials, HDPE geomembrane can be laid in a variety of forms to meet different construction requirements.
Package:
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
