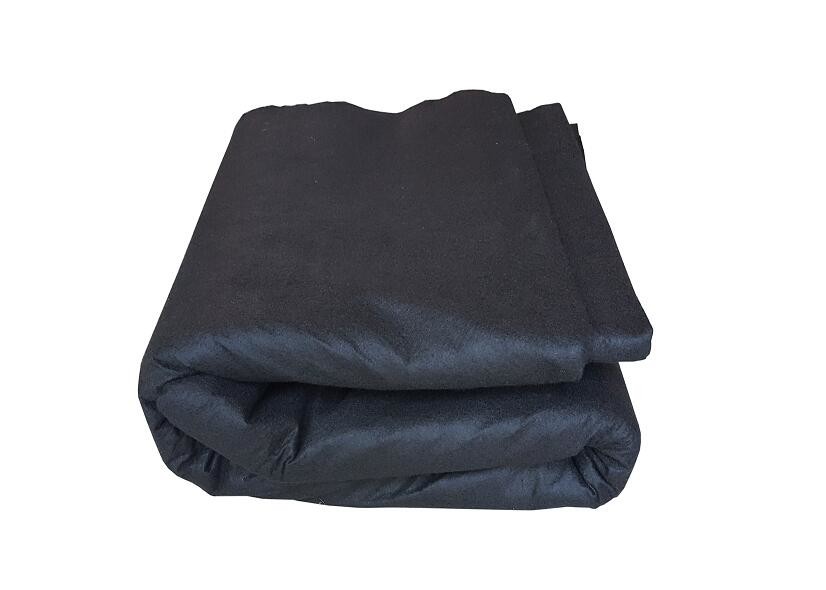

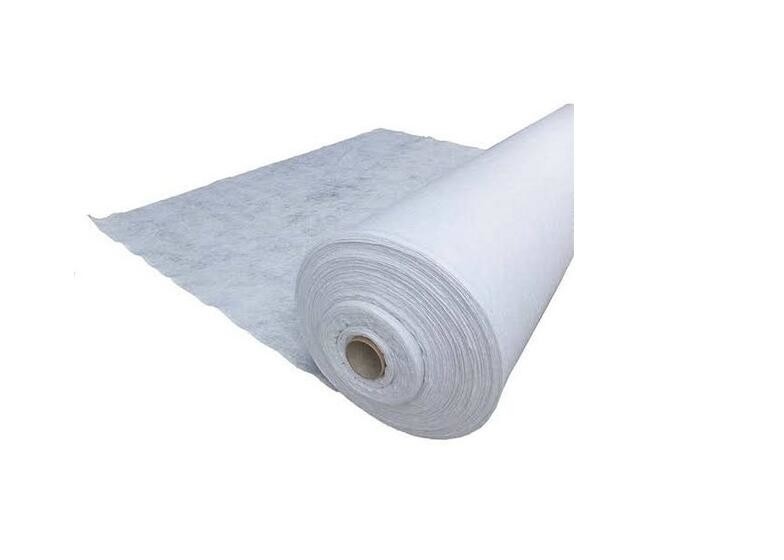

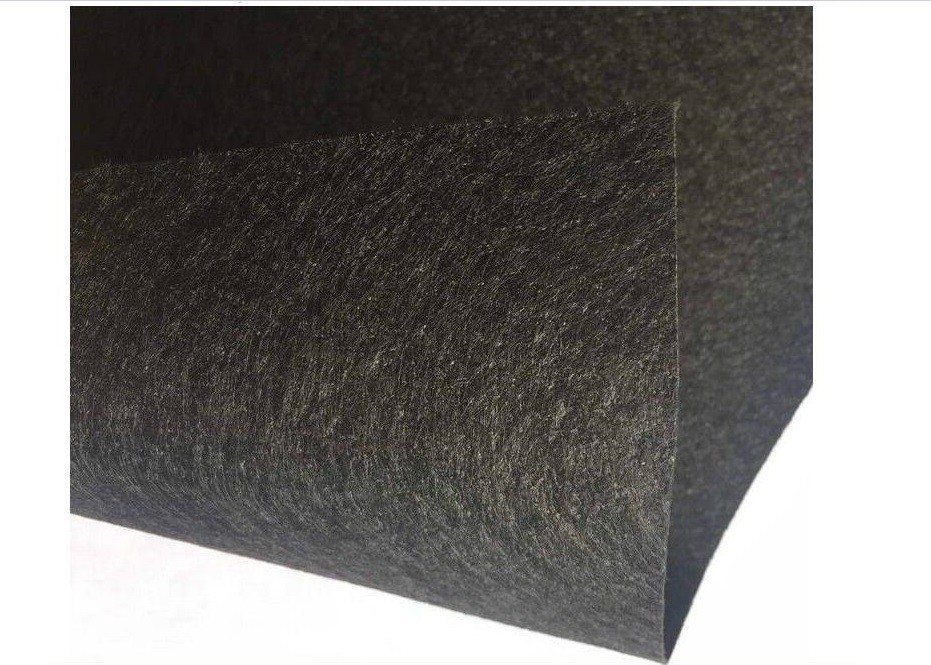

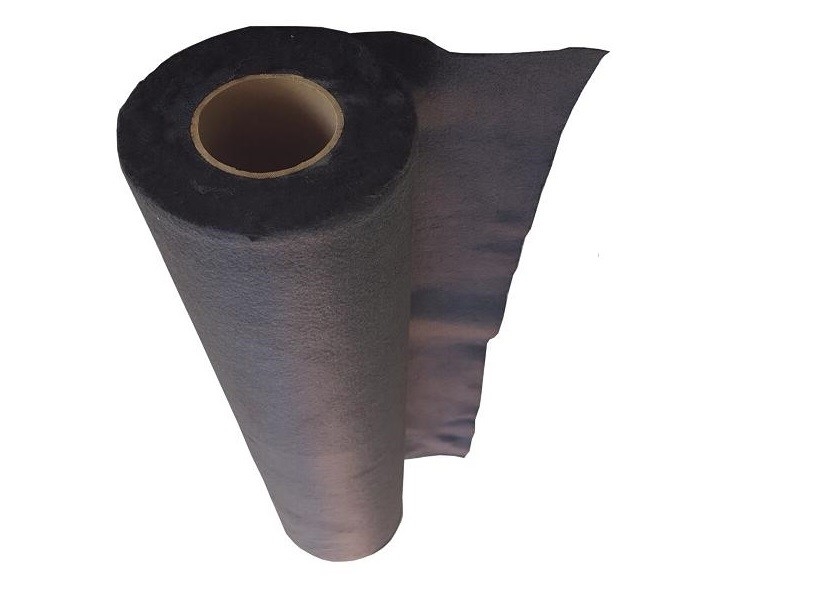

Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 120G
Minimum Order Quantity: 3050 Square Meters
Price: USD 0.15-1.75 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction Weight: 120 G/㎡
Material: Non Woven Fabric Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Protect Water, Isolate, Reinforce, Drainage, Separate Soil Application: Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China
High Light:

120g Geotextile Liner

,

Geotextile Liner Short Filament

,

120g Nonwoven Geotextile Fabric


Product Description

Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction


Quick Detail:
material: polyester, polypropylene(PET, PP)

function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 1.5mm
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach


Product Description:


non-woven geotextile is UV stabilised and will not rot. It is commonly used between different construction layers to avoid mixing of materials. The high water flow and excellent filter properties it features, combined with exceptional mechanical properties, ensures that fine grained particles are retained at the same time as allowing free movement of water.



Filtration:

A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.

Perforation and permeability are the most important properties of geotextiles with infiltration action.



Reinforcement:

The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.



Sealing:

A layer of nonwoven geotextile is saturated between existing and new asphalt layers.


Technical Parameters:



No. item type 100 150 200 250 300 350 400 450 500 600 800 note
2 Thickness (mm,≧) 0.9 1.3 1.7 1.9 2.1 2.4 2.7 3 3.3 4.1 5
3 Width Deviation (%) -0.5
4 Breaking Strength (KN/m≧) 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 Horizontal & Vertical
5 Elongation at Break (%) 25-100
6 CBR Bursting Strength (KN) 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
8 Equivalent Aperture O90 (O95) mm 0.07-0.2
9 Vertical Permeability (cm/s) Kx(10-1-10-3) K=1.0*9.9
10 Tear Strength (KN≧ ) 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 Horizontal & Vertical



Application:

  • Rip Rap Erosion Control
  • Driveway/Road Stabilization
  • Separation of Aggregates
  • Railroad Construction
  • Erosion Control
  • Support Under Seawalls

Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 0


 Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 1
 Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 2

Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 3


Advantage:

  • combines filtration properties and high water permeability
  • high resistance to puncture and abrasion
  • large choice of thickness of material (weight)
  • top level protection at high strain


​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,

3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.


 Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 4


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 5



Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 6


Why Choose US:

Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 7

FAQ:

Short Filament Nonwoven Geotextile Lining Fabric 120g Separation Filtration In Building Construction 8
