| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 100G |
| Minimum Order Quantity: | 1950 Square Meters |
| Price: | USD 0.15-1.75 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Short Filament Nonwoven Geotextile Fabric 100g Separation Filtration In Channel Construction | Weight: | 100 G/㎡ |
|---|---|---|---|
| Material: | Non Woven Fabric | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | 100g/m2 Geotextile Fabric,Nonwoven Geotextile Fabric 100g,Channel Construction Geotextile Fabric |
||

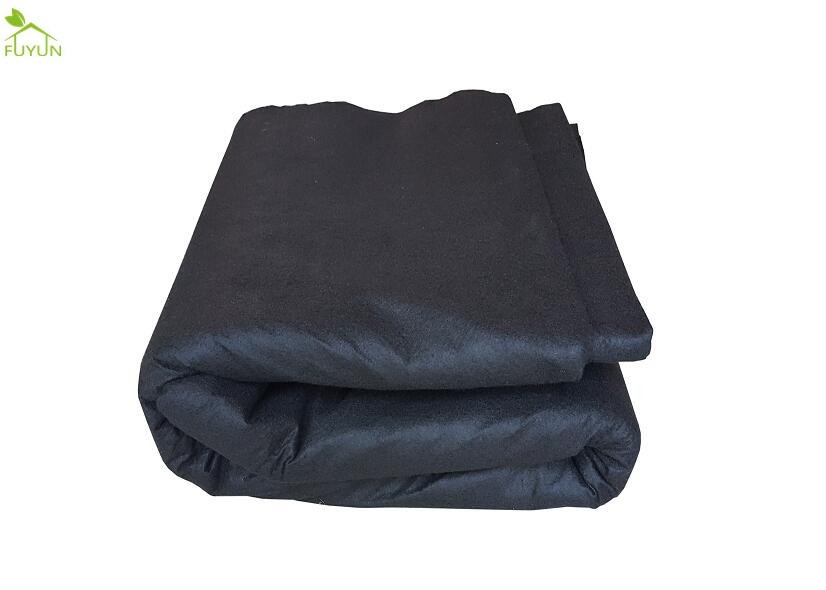

Short Filament Nonwoven Geotextile Fabric 100g Separation Filtration In Channel Construction
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 1.5mm
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach
Product Description:
Chemical structure of polyethylene has a strong stability, hardly decomposes in the nature. Totally degradable plastic bag must take 300 years. Polypropylene has a weak chemical structure, molecular chains can easily break, so it can effectively degrade and in nontoxic form into the next cycle. A nonwoven shopping bag can decompose completely within 90 days. What’s more, nonwoven shopping bags can be reused more than 10 times, and Contamination Level is 10% of plastic bags.
Filtration:
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
Reinforcement:
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
Sealing:
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
Factory Show:
Why Choose US:
FAQ:
