|Place of Origin:||Hefei, China|
|Certification:||CE, ISO, SGS, BV, GB, ASTM|
|Minimum Order Quantity:||1950 Square Meters|
|Price:||USD 0.35-1.15 Square Meter|
|Packaging Details:||packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal|
|Supply Ability:||28.5 Tons per Day|
|Product Name:||Separation Sands Gravel In Infrastructure Construction Nonwoven Geotextile Fabric Liners 400gsm||Weight:||400 G/㎡|
|Material:||Non Woven Fabric||Rolling Size:||Width: From 1m To 6m, Length: From 60m To 260m|
|Function:||Protect Water, Isolate, Reinforce, Drainage, Separate Soil||Application:||Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam|
|Origin:||Made In China|
Separation Sand Nonwoven Geotextile Fabric,
400G Nonwoven Geotextile Fabric,
400G Non Woven Geo Fabric

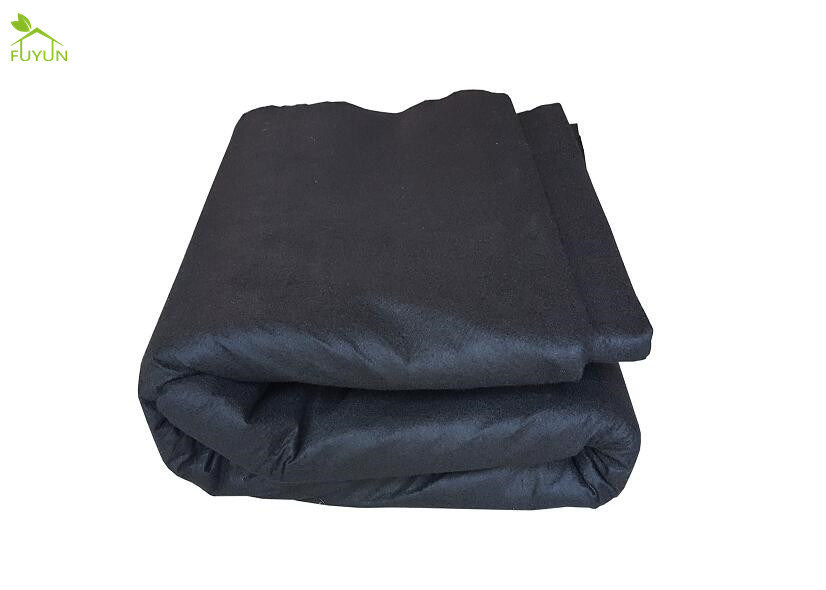

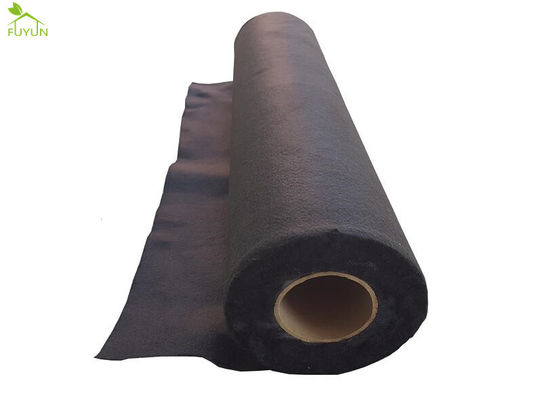

Separation Sands Gravel In Infrastructure Construction Nonwoven Geotextile Fabric Liners 400gsm
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach
Non-woven geotextile is a category of stabilization fabric made from synthetic polypropylene most oftentimes used for drainage, filtration, erosion control, and sediment reinforcement. Nonwoven geotextile drainage fabric can be efficiently used for filtering applications. On the account of the non-woven geotextile filter fabric’s design, its flow-through rate is steep, letting water pass through while retaining debris and pollutants. Non-woven geotextile is a strong erosion control fabric manufactured of synthetic materials for a variety of applications.
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
|3||Width Deviation (%)||-0.5|
|4||Breaking Strength (KN/m≧)||2.5||4.5||6.5||8||9.5||11||12.5||14||16||19||25||Horizontal & Vertical|
|5||Elongation at Break (%)||25-100|
|6||CBR Bursting Strength (KN)||0.3||0.6||0.9||1.2||1.5||1.8||2.1||2.4||2.7||3.2||4|
|8||Equivalent Aperture O90 (O95) mm||0.07-0.2|
|9||Vertical Permeability (cm/s)||Kx(10-1-10-3)||K=1.0*9.9|
|10||Tear Strength (KN≧ )||0.08||0.12||0.16||0.2||0.24||0.28||0.33||0.38||0.42||0.46||0.6||Horizontal & Vertical|
Filtration : By non woven into a regular network and calendared , the filaments retain dimensional stability relative to each other. These characteristics make it ideal for preventing the passage of fine soil granules and allowing passage of fluid.
Reinforcement : Safely limit the excursion of civil work over long time of use and transfer or allocate the stress on soil over a larger area.
Separation : Separate the civil work materials into stable interfaces and ensure them to function both individually and as a whole.
Cushion buffer : Placed on a slope , it can prevent soil granules from being flushed away.
Corrosion resistance : The geotextile is resistant to ultraviolet degradation and also to biological and chemical environments normally found in soils.
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
all products will be delivered in time according to the requirement,
