| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SASO, SONCAP, ASTM |
| Model Number: | 1.0MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.55-2.65 square meters |
| Packaging Details: | Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons |
| Delivery Time: | 10Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Length: | 50m/roll | Application: | Fish Tank, Storage Tank, Duck Pond, Fish Pond, Shrimp Pond |
|---|---|---|---|
| Material: | HDPE, LDPE, LLDPE, PVC, Polyethylene, EVA | Function: | Anti Seepage, Temperature Control, Oxygenation |
| Density: | 0.50~ 0.96 G/cm | Product Name: | Storm Water Collections Ponds Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness |
| Certificate: | ASTM, ISO, GM13 | Origin: | Made In China |
| High Light: | Anti Seepage 1mm Hdpe Liner,HDPE Geomembrane Fabric ASTM,HDPE Geomembrane Fabric 1.0mm Thickness |
||

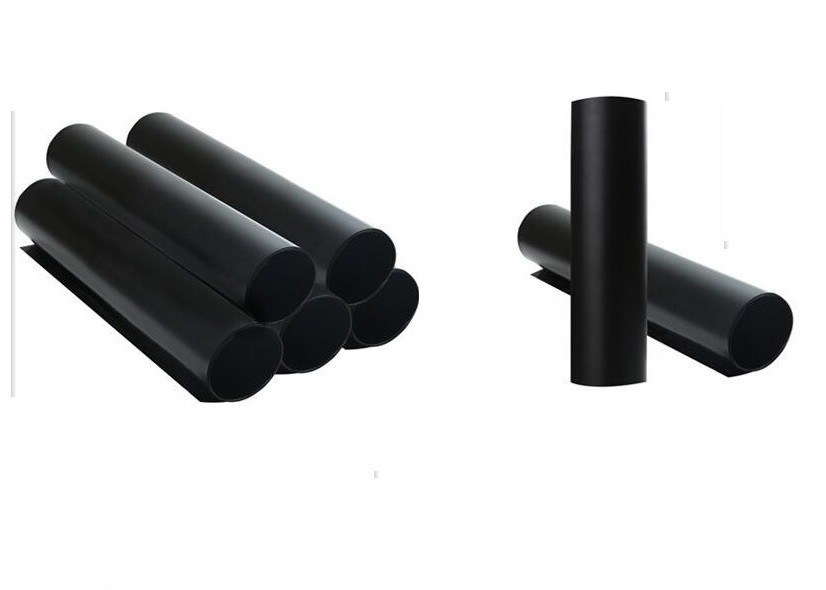

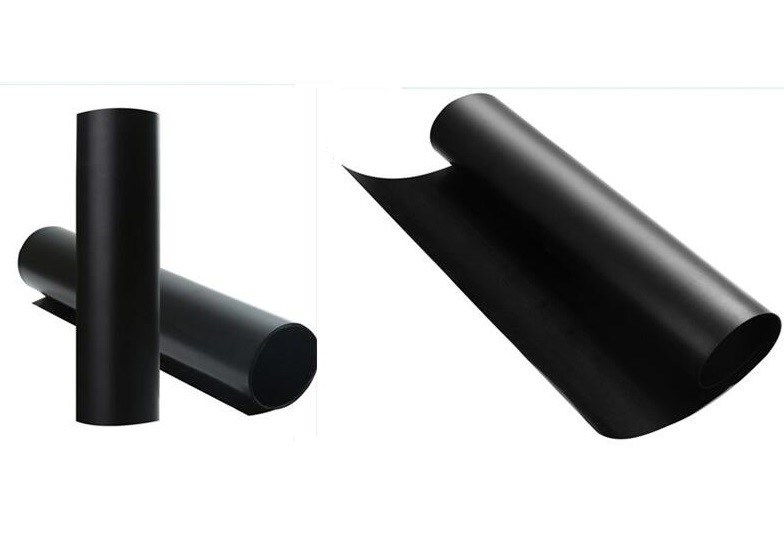

Storm Water Collections Ponds Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness
Dam Liner Lining Fabric Tanks HDPE Geomembrane Fabric 1.0mm Thickness ASTM
Shrimp Storage Tanks HDPE Geomembrane Fabric 1.0mm Thickness ASTM
Quick Detail:
Production Description:
HDPE geomembrane is made from high grade polyethylene raw material ,adding carbon black ,antioxidant, anti-aging and UV resistance component .It adopted the first class automatic production equipment and three-layer pressing technology. All products are in accordance with GB/GRI/ASTM standard.
(0.5 or 0.75mm-thickness is used for pond liner, 1.5mm-thickness is used for landfill, 2.0mm-thickness is used for dam liner.)
HDPE Geomembrane (High-Density Polyethylene)
HDPE geomembrane liners are the preferred product for lining projects. HDPE liners are resistant to many different solvents and are the most widely used geomembrane liner in the world. Although HDPE geomembrane is less flexible than LLDPE, it provides higher specific strength and can withstand higher temperatures. Its exceptional chemical and ultraviolet resistance properties make it an extremely cost-effective product.
Table1(a) – High Density Polyethylene (HDPE) Geomembrane -Smooth
| Properties | Test | Test Value | Testing Frequency | ||||||||
| Method | 30 mils | 40 mils | 50 mils | 60 mils | 80 mils | 100 mils | 120 mils | (minimum) | |||
| Thickness (min. ave.) | D5199 | nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Per roll | ||
| · lowest individual of 10 values | -10% | -10% | -10% | -10% | -10% | -10% | -10% | ||||
| Density mg/l (min.) | D 1505/D 792 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 200,000 lb | ||
| Tensile Properties (1) (min. ave.) | D 6693 | 20,000 lb | |||||||||
| · | yield strength | Type IV | 63 lb/in. | 84 lb/in. | 105 lb/in. | 126 lb/in. | 168 lb/in. | 210 lb/in. | 252 lb/in. | ||
| · | break strength | 114 lb/in. | 152 lb/in. | 190 lb/in. | 228 lb/in. | 304 lb/in. | 380 lb/in. | 456 lb/in. | |||
| · | yield elongation | 12% | 12% | 12% | 12% | 12% | 12% | 12% | |||
| · | break elongation | 700% | 700% | 700% | 700% | 700% | 700% | 700% | |||
| Tear Resistance (min. ave.) | D 1004 | 21 lb | 28 lb | 35 lb | 42 lb | 56 lb | 70 lb | 84 lb | 45,000 lb | ||
| Puncture Resistance (min. ave.) | D 4833 | 54 lb | 72 lb | 90 lb | 108 lb | 144 lb | 180 lb | 216 lb | 45,000 lb | ||
| Stress Crack Resistance (2) | D5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | per GRI-GM10 | ||
| (App.) | |||||||||||
| Carbon Black Content (range) | D 4218 (3) | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 20,000 lb | ||
| Carbon Black Dispersion | D 5596 | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | 45,000 lb | ||
| Oxidative Induction Time (OIT) (min. ave.) (5) | 200,000 lb | ||||||||||
| (a) | Standard OIT | D 3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | ||
| — or — | |||||||||||
| (b) High Pressure OIT | D 5885 | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | |||
| Oven Aging at 85°C (5), (6) | D 5721 | ||||||||||
| (a) Standard OIT (min. ave.) - % retained after 90 days | D 3895 | 55% | 55% | 55% | 55% | 55% | 55% | 55% | per each | ||
| — or — | formulation | ||||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 90 days | D 5885 | 80% | 80% | 80% | 80% | 80% | 80% | 80% | |||
| UV Resistance (7) | D 7238 | ||||||||||
| (a) Standard OIT (min. ave.) | D 3895 | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | per each | ||
| — or — | formulation | ||||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) | D 5885 | 50% | 50% | 50% | 50% | 50% | 50% | 50% | |||
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1. Environmental protection and sanitation (such as domestic waste landfills, sewage treatment, toxic and hazardous substance disposal sites, hazardous goods warehouses, industrial waste, construction and blasting waste, etc.)
2. Water conservancy (such as anti-seepage, plugging, reinforcement of dams of rivers, lakes and reservoirs, anti-seepage of canals, vertical core walls, slope protection, etc.)
3. Municipal engineering (subway, underground engineering of buildings and roof cisterns, seepage prevention of roof gardens, lining of sewage pipes, etc.)
4. Gardens (artificial lakes, ponds, pond linings of golf courses, slope protection, etc.)
5. Petrochemical (chemical plants, refineries, oil storage tanks in gas stations, seepage prevention, chemical reaction tanks, sedimentation tank linings, secondary linings, etc.)
6. Mining (washing tank, heap leaching tank, ash yard, dissolution tank, sedimentation tank, storage yard, bottom lining anti-seepage of tailings pond, etc.)
7. otus root planting (lotus root planting, anti-seepage of lotus pond, water storage pond, anti-seepage of irrigation system)
8. Aquaculture (lining of fish ponds, shrimp ponds, sea cucumber circle slope protection, etc.)
9. Salt industry (salt field crystallization pond, brine pond cover, salt film, salt pond plastic film)
Advantage:
- Eliminate contamination of liquid waste in the pond to the ground
- Eliminate the negative effects that can be caused by soil in the pond
- Increasing the efficiency of probiotic use in water due to the absence of absorption from the soil (especially for shrimp farms)
Package:
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
