Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, GB, BV, SASO, SONCAP
Model Number: 1.5MM
Minimum Order Quantity: 1000 square meters
Price: USD 0.2-3.5 square meters
Packaging Details: packed in roll with woven bags
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Material: Geomembranes, HDPE, LDPE/LLDPE Application: Landfills, Dam, River Bank, Slope
Keyword: Hdpe Waterproof Geomembrane Membrane,Anti-seepage,HDPE PLASTIC POND LINER,pond Liner Geomembrane Cost For Road Construction,Earthwork Products Factory Price 1.5mm Lldpe Geomembrane Function: Non-slip, Anti Slope, Antiseepage,waterproof,Impermeable,Puncture Resistance,Durable/chemical Resistance
Density: 0.90~ 0.95 G/cm Weight: 400gsm
Surface: Textured Product Name: Irrigation System
High Light:

Irrigation System Geomembrane Fabric

,

Double Textured HDPE Geomembrane Fabric

,

HDPE Geomembrane Fabric Anti Slip


Product Description

Irrigation System GM13 Standard Double Textured HDPE Geomembrane Fabric Linings Sheet Anti Seepage Anti Slip





Quick Detail:

  • material: HDPE, LDPE
  • length: 50-200m & customized
  • width: 1-8m & customized
  • thickness:  1.0-3.0mm & customized
  • production standard: GRI,ASTM,GB, ISO
  • application: dam, slope, embankment, river bank, oil platform



Production Description:

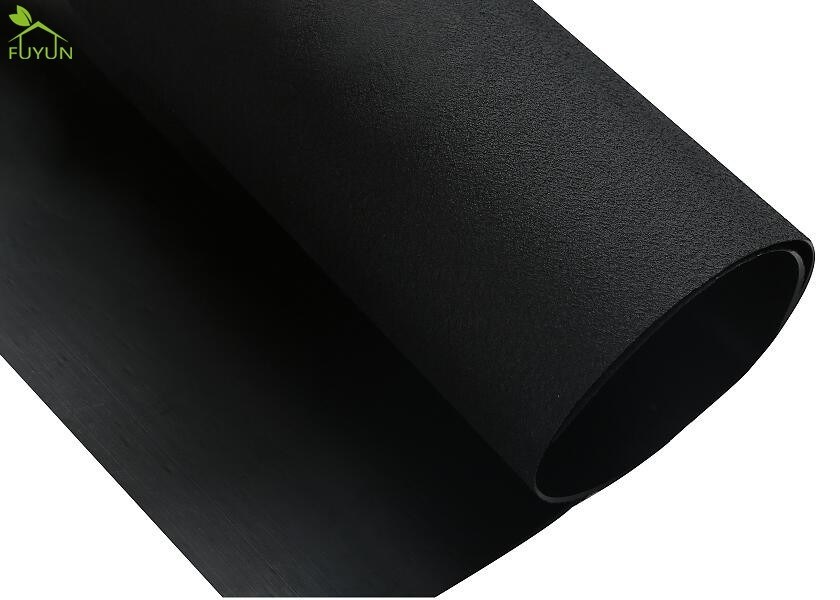

Textured Geomembrane is produced by the spray texture technology. It is designed with one or two side textured surface. Except for the excellent properties of smooth geomembrane.



Textured Geomembrane is based on the traditional production process of HDPE geomembrane, and the production equipment is technologically innovated, so that the surface of the produced polyethylene geomembrane forms a granular rough surface, which improves the friction of the surface of the geomembrane. At the same time, compared with the glossy geomembrane of the same specification, the anti-stretching ability is stronger, and the surface of the rough mask has rough particles. When laying the membrane, the membrane and the ground will form a small sandwich layer, which can not only enhance the bearing resistance of the membrane The deformation force can in turn increase the coefficient of friction.



Table 2(a) – High Density Polyethylene (HDPE) Geomembrane - Textured



  Properties Test       Test Value       Testing
    Method               Frequency
      30 mils 40 mils 50 mils 60 mils 80 mils 100 mils 120 mils (minimum)
Thickness mils (min. ave.) D 5994 nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) per roll
· lowest individual for 8 out of 10 values   -10% -10% -10% -10% -10% -10% -10%
· lowest individual for any of the 10 values   -15% -15% -15% -15% -15% -15% -15%
Asperity Height mils (min. ave.) (1) D 7466 10 mil 10 mil 10 mil 10 mil 10 mil 10 mil 10 mil every 2nd roll (2)
Density (min. ave.) D 1505/D 792 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 200,000 lb
Tensile Properties (min. ave.) (3) D 6693               20,000 lb
· yield strength Type IV 63 lb/in. 84 lb/in. 105 lb/in. 126 lb/in. 168 lb/in. 210 lb/in. 252 lb/in.
· break strength   45 lb/in. 60 lb/in. 75 lb/in. 90 lb/in. 120 lb/in. 150 lb/in. 180 lb/in.
· yield elongation   12% 12% 12% 12% 12% 12% 12%
· break elongation   100% 100% 100% 100% 100% 100% 100%
Tear Resistance (min. ave.) D 1004 21 lb 28 lb 35 lb 42 lb 56 lb 70 lb 84 lb 45,000 lb
Puncture Resistance (min. ave.) D 4833 45 lb 60 lb 75 lb 90 lb 120 lb 150 lb 180 lb 45,000 lb
Stress Crack Resistance (4) D 5397 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. per GRI GM10
    (App.)
Carbon Black Content (range) D 4218 (5) 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 20,000 lb
Carbon Black Dispersion D 5596 note (6) note (6) note (6) note (6) note (6) note (6) note (6) 45,000 lb
Oxidative Induction Time (OIT) (min. ave.) (7)                 200,000 lb
(a) Standard OIT D 3895 100 min. 100 min. 100 min. 100 min. 100 min. 100 min. 100 min.
  — or —
(b) High Pressure OIT D 5885 400 min. 400 min. 400 min. 400 min. 400 min. 400 min. 400 min.
Oven Aging at 85°C (7), (8) D 5721
(a) Standard OIT (min. ave.) - % retained after 90 days D 3895 55% 55% 55% 55% 55% 55% 55% per each
  — or —                 formulation
(b) High Pressure OIT (min. ave.) - % retained after 90 days D 5885 80% 80% 80% 80% 80% 80% 80%
UV Resistance (9) D 7238
(a) Standard OIT (min. ave.) D 3895 N.R. (10) N.R. (10) N.R. (10) N.R. (10) N.R. (10) N.R. (10) N.R. (10) per each
  — or —                 formulation
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (11) D 5885 50% 50% 50% 50% 50% 50% 50%



Specification:



Item Properties Unit Thickness
  1.0 1.25 1.5 2.0 2.5 3.0
1 Roughness Height mm 0.25
2 Minimum Density g/cm3 0.939
3 Breaking Strength N/mm 10 13 16 21 26 32
4 Elongation at Break % 100
5 Right Angle Tear Strength N 125 156 187 249 311 374
6 Puncture Strength N 267 333 400 534 667 800
7 Stress Crack Resistance Hrs 300
8 Carbon Black Content (range) % 2.0-3.0
9 Low Temperature Impact Embrittlement at -70℃ / ok
10 Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) / ≤1.0*10-13
11 Dimensional Stability % ±2



Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured 0





Application:

  • Landscape Projects: Artificial lake, pond, the bottom of pond in Golf course, revetment etc;
  • Sanitation Projects: Domestic garbage landfill, sewage treatment, poisonous & harmful substance treatment, dangerous cargo storage;
  • Water Conservancy Projects: Anti-seepage, leaking stoppage and reinforce of river/lake/basin/dam, anti-seepage of water channel, vertical core wall, lake etc;

  • Mining Industry & Chemical Industry: Anti-seepage of oil tank in chemical plant, refinery plant, petrol station, chemical reaction camera, inner liner of settling tank, secondary liner etc;
  • Construction Projects: Underground project of subway and building, roof reservoir, roof garden, sewage pipeline etc;
  • Aquaculture: Inner liner or fish pond, shrimp pond, revetment of sea cucumber pool etc;

  • Agriculture: Reservoir,drinking water pool, pool, irrigation system;

  • Salt Industry: Salt filed crystallizing pond, brine pond, salt film etc.

Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured 1

Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured 2



Advantage:

1. Long life, anti-aging, roof material can be more than 30 years, underground can be more than 50 years.
2. Good tensile strength, high elongation.
3. Good high/low-temperature flexibility
4. Easy to construct, no pollution.
5. The good anti-corrosive ability can be used in the special area
6. Various colors are available
7. Skidproof



Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.



Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured 3





Factory Show:



Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured 4



Why Choose us?



Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured 5



FAQ:



Irrigation System HDPE Geomembrane Fabric Anti Seepage Anti Slip Double Textured 6
