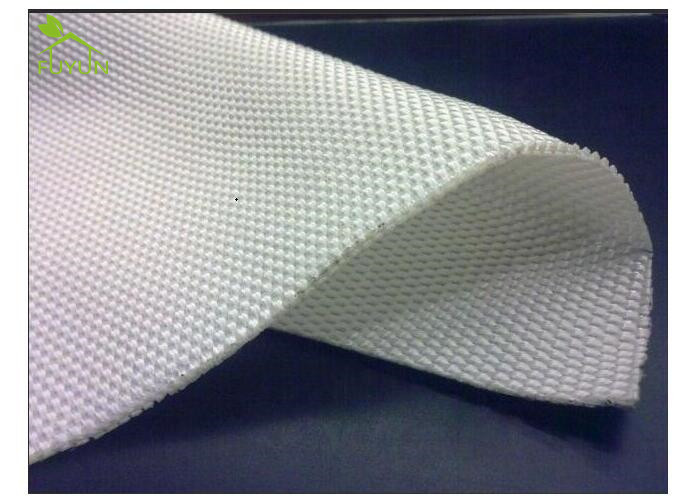

Low Deformation PET Woven Geotextile High Strength 200/200 KN/M

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 200/200 kn/m
Minimum Order Quantity: 30000 Square Meters
Price: USD 0.35-5.05 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: PET Woven PET Woven Geotextile High Strength Low Deformation 200/200 KN/m River, Coast Reinforcement Weight: 200/200 Kn/m
Material: Pet, Pp Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Protect Water, Isolate, Reinforce, Drainage, Separate Soil Application: Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China
High Light:

PET Woven Geotextile High Strength

,

PET Woven Geotextile Low Deformation

,

Low Deformation PET Geotextile


Product Description

PET Woven Geotextile High Strength Low Deformation 200/200 KN/m River, Coast Reinforcement


Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
weight: 760g
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach


Product Description:


Hefei Xuqiu Environmental Protection Co., Ltd offers a range of woven geotextiles from lightweight fabrics used for basic separation of incompatible soils to medium and high strength materials for ground reinforcement solutions. Our woven geotextiles are manufactured from inert polypropylene and polyester and therefore not only safe for use but also resistant to attack from microbial attack and most chemicals that naturally occur in soil.



Made from polypropylene and or polyester fibers, manufactured with high tensile strength and low elongation,our woven geotextiles have superior properties for filtration,separation, reinforcement, erosion control and drainage. We are leader in providing woven geotextiles for a variety of civil and environmental applications including highways, port facilities, reservoir, transport construction, waste and chemical management ,subgrade engineering, coast reclamation works, peninsula shoal engineering.




Technical Parameters:





Item Specification
Material Polyester
Breaking Strength in MD(KN/m) 35 50 65 80 100 120 140 160 180 200 250
Breaking Strength in CD(KN/m) 35 50 65 80 100 120 140 160 180 200 250
Elongation at Break(%) MD=35; CD=30
Width Variation, % ±0.1
CBR Mullen Burst Strength, KN 2.0 4.0 6.0 8.0 10.5 13.0 15.5 18.0 20.5 23.0 28.0
Seive Size O90(O95) mm 0.07-0.50
Tearing Strength, KN 0.5 0.8 1.1 1.3 1.5 1.7 1.9 2.1 2.3 2.5 3
Weigth, g/m2 140 220 260 320 390 450 530 600 680 760 950

















































Application:



1. It is widely used in river, coast, harbor, highway, railway, wharf, tunnel, bridge and other geotechnical engineering.
2. It could meet all kinds of geotechnical projects needs such as filtration, separation, reinforcement, protection and so on
Low Deformation PET Woven Geotextile High Strength 200/200 KN/M 0


Low Deformation PET Woven Geotextile High Strength 200/200 KN/M 1



Advantage:



1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeavility: could control the sieve size to retain certain permeability


​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.

 Low Deformation PET Woven Geotextile High Strength 200/200 KN/M 2


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

Low Deformation PET Woven Geotextile High Strength 200/200 KN/M 3

Low Deformation PET Woven Geotextile High Strength 200/200 KN/M 4


Why Choose US:

Low Deformation PET Woven Geotextile High Strength 200/200 KN/M 5
