High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 200/50 kn/m
Minimum Order Quantity: 30000 Square Meters
Price: USD 0.25-5.05 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: PET High Tenacity Woven Geotextile 200/50 KN/m Retaining Structures Weight: 200/50 Kn/m
Material: Pet, Pp Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Protect Water, Isolate, Reinforce, Drainage, Separate Soil Application: Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China
High Light:

High Tenacity PET Woven Geotextile

,

PET Woven Geotextile 200/50 KN/m

,

Retaining Structures PET Woven Geotextile


Product Description

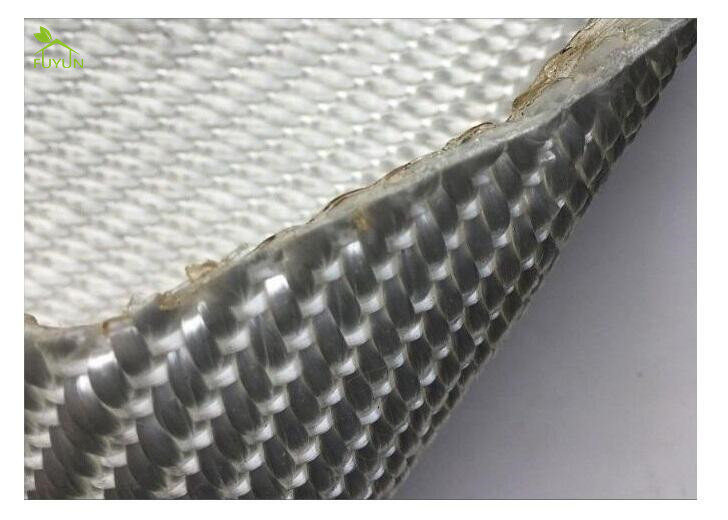

PET High Tenacity Woven Geotextile 200/50 KN/M Retaining Structures

PET High Tensile Strength Woven Geotextile 100/50 KN/m Steep Slope Construction

Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
weight: 260g
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach


Product Description:


Hefei Xuqiu Environmental Protection Co., Ltd offers a range of woven geotextiles from lightweight fabrics used for basic separation of incompatible soils to medium and high strength materials for ground reinforcement solutions. Our woven geotextiles are manufactured from inert polypropylene and polyester and therefore not only safe for use but also resistant to attack from microbial attack and most chemicals that naturally occur in soil.

We offer a range of woven or knitted polyester (PET) geotextiles that offer high tensile strengths at low extension. Ultimate tensile strengths offered vary from approximately 100 kN/m to 1400 kN/m and the excellent creep characteristics of these materials makes them a preferred choice for a range of reinforcement applications including void spanning, load transfer platforms over piles and basal embankment reinforcement.





Pet Woven Geotextile Fabric is woven geo fabric made from high tenacity, low elongation material of multifilament polyester yarns to form a stable structure. Xuqiu Environmental protection brand pet woven geotextile fabric is woven and blended by individual multifilament yarns woven together into a stable fabric structure with a superior combination of mechanical and hydraulic properties. Our pet woven geotextile fabric series has excellent resistance to biological and chemical environments normally found in soils and are stable against short-term exposure to ultraviolet radiation. The woven geotextile fabric is widely used for reinforcement of embankments, retaining structures, steep slopes, linear constructions, landfills, waste deposits, etc.




Technical Parameters:



Property Unit XQW100-50 XQW300-50 W500-50 W600-50 W1200-50
Ultimate Tensile Strength MD KN/m 100 300 500 600 1200
Ultimate Tensile Strength CD KN/m 50 50 50 50 50
Strain at short term strength % 10 12 12 12 12
Elongation % 30 30 30 30 30
Apparent Opening Size mm 0.15 0.15 0.15 0.15 0.15
UV resistance ( Retained 500 Hours) % 70 70 70 70 70
Width m 5.2 5.2 5.2 5.2 5.2
Height m 100 100 100 100 100
Roll weight KG 260 320 480 580 810




Application:


  • Rip Rap Erosion Control
  • Driveway/Road Stabilization
  • Separation of Aggregates
  • Railroad Construction
  • Erosion Control
  • Support Under Seawalls

High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures 0

High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures 1



Advantage:

  • combines filtration properties and high water permeability
  • high resistance to puncture and abrasion
  • large choice of thickness of material (weight)
  • top level protection at high strain


​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.

 High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures 2


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures 3

High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures 4


Why Choose US:

High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures 5

FAQ:

High Tenacity PET Woven Geotextile 200/50 KN/M Retaining Structures 6
