Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | CE, ISO, SGS, BV, GB, ASTM |
Model Number: | 200/50 kn/m |
Minimum Order Quantity: | 30000 Square Meters |
Price: | USD 0.65-5.05 Square Meter |
Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
Delivery Time: | 7 Days |
Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
Supply Ability: | 28.5 Tons per Day |
Product Name: | PET Woven Geotextile Creep Resistance 200/50 KN/m Area Stabilization Construction | Weight: | 200/50 Kn/m |
---|---|---|---|
Material: | Pet, Pp | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
Origin: | Made In China | ||
High Light: | PET Woven Geotextile Creep Resistance,200/50 KN/M PET Woven Geotextile,Stabilization Construction PET Woven Geotextile |

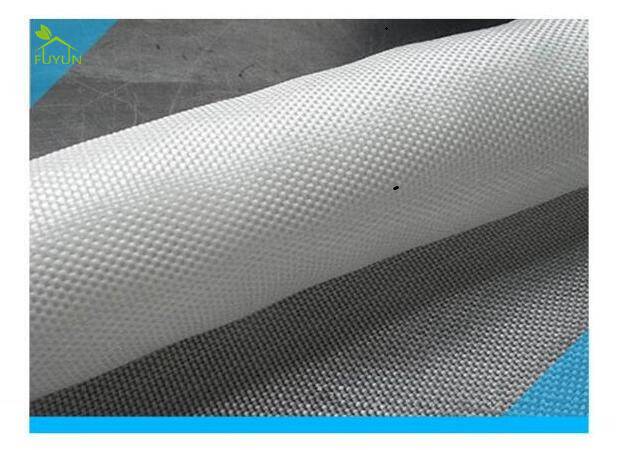

PET Woven Geotextile Creep Resistance 200/50 KN/m Area Stabilization Construction
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
weight: 385g
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach
Product Description:
Hefei Xuqiu Environmental Protection Co., Ltd offers a range of woven geotextiles from lightweight fabrics used for basic separation of incompatible soils to medium and high strength materials for ground reinforcement solutions. Our woven geotextiles are manufactured from inert polypropylene and polyester and therefore not only safe for use but also resistant to attack from microbial attack and most chemicals that naturally occur in soil.
We offer a range of woven or knitted polyester (PET) geotextiles that offer high tensile strengths at low extension. Ultimate tensile strengths offered vary from approximately 100 kN/m to 1400 kN/m and the excellent creep characteristics of these materials makes them a preferred choice for a range of reinforcement applications including void spanning, load transfer platforms over piles and basal embankment reinforcement.
PET Woven Geotextile is interwoven by high tenacity PET filament yarn into a dimensionally stable network. The inherent characteristics of Polyester-high tensile strength and modulus,low elongation, low creep and high long-term design strength makes the good ideal for soil reinforcement application. The fabric develops excellent frictional interaction with a wide variety of soil and granular materials. The relatively low openings of these fabrics enable them to act as efficient separators preventing the mixing of costly granular materials with fine-grained soils. It has reasonably high permeability to prevent excessive build-up of pore-pressures due to applied loadings.
Technical Parameters:
Property | Unit | XQW100-50 | XQW300-50 | XQW500-50 | XQW600-50 | XQW1200-50 |
Ultimate Tensile Strength MD | KN/m | 100 | 300 | 500 | 600 | 1200 |
Ultimate Tensile Strength CD | KN/m | 50 | 50 | 50 | 50 | 50 |
Strain at short term strength | % | 10 | 12 | 12 | 12 | 12 |
Elongation | % | 30 | 30 | 30 | 30 | 30 |
Apparent Opening Size | mm | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
UV resistance ( Retained 500 Hours) | % | 70 | 70 | 70 | 70 | 70 |
Width | m | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
Height | m | 100 | 100 | 100 | 100 | 100 |
Roll weight | KG | 260 | 320 | 480 | 580 | 810 |
Application:
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
