| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 385G |
| Minimum Order Quantity: | 2050 Square Meters |
| Price: | USD 0.65-5.05 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | PP PET High Tensile Strength Woven Geotextile 100/50 KN/m Paved Roadway Construction | Weight: | 385 G/㎡ |
|---|---|---|---|
| Material: | Pet, Pp | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | High Tensile Strength Woven Geotextile,PET Geotextile Fabric,PP Geotextile Fabric |
||

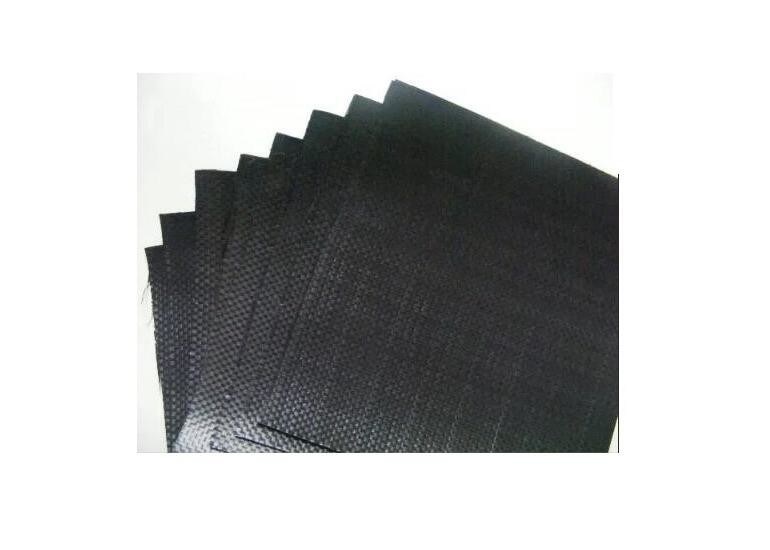

PP PET High Tensile Strength Woven Geotextile 80/80 KN/m Paved Roadway Construction
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
weight: 385g
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach
Product Description:
Woven geotextiles are a time-tested and cost-effective solution for a variety of applications including: stabilization of construction entrances and staging areas; bridging over soft soils; separating dissimilar soils; reinforced soil structures, shoreline erosion control; and bulkheads.
There are three basic structures of woven geotextiles:
1) Slit Film Woven Geotextiles:
These are manufactured by weaving flat strands of polypropylene that are created by slitting a plastic sheet.
These geotextiles aid in construction over soft or weak soils by providing separation and stabilization and are excellent for park-on/drive-on applications. While they are permeable, slit-film geotextiles perform poorly when a gradient ratio test is performed. Therefore, they can clog. As such, they are not recommended for filtration applications such as bulkheads, erosion control or underdrains.
2) Monofilament Woven Geotextiles:
These are manufactured by weaving extruded, round strands of polypropylene.
Woven monofilament geotextiles have a unique property called percent open area and perform very well when a gradient ratio test is performed. Therefore, they are preferred for applications where both strength and filtration are a concern, such as shoreline rip rap and bulkhead applications.
3) Combination Woven Geotextiles:
Woven combination geotextiles are manufactured by weaving round monofilament yarns in one direction and flat tape or fibrillated yarns in the other. They provide an excellent combination of strength and hydraulics.
Technical Parameters:
| ITEM | WN015 | WN022 | WN028 | WN035 | WN042 | WN056 | WN070 | |
| Tensile Strength MD | KN/m >= | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| Tensile Strength CD | KN/m >= | 15 | 22 | 28 | 35 | 42 | 56 | 70 |
| Tensile Elongation | % ＜= | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| CBR Puncture Resistance | KN >= | 1.6 | 2.4 | 3.2 | 4.0 | 4.8 | 6.0 | 7.5 |
Application:
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
