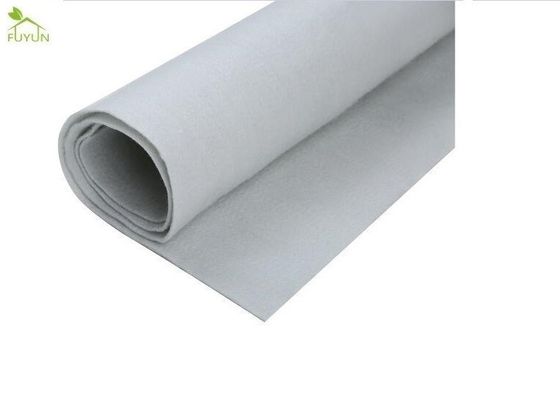

Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 800G
Minimum Order Quantity: 1950 Square Meters
Price: USD 0.35-1.15 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: Reinforcement In Infrastructure Construction Short Filament Nonwoven Geotextile Fabric 800gsm Weight: 800 G/㎡
Material: Non Woven Fabric Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Protect Water, Isolate, Reinforce, Drainage, Separate Soil Application: Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China
High Light:

Reinforcement Non Woven Geotextile Fabric

,

800gsm Non Woven Geotextile Fabric

,

Infrastructure Construction Non Woven Geotextile Fabric


Product Description

Reinforcement In Infrastructure Construction Short Filament Nonwoven Geotextile Fabric 800gsm

Quick Detail:
material: polyester, polypropylene(PET, PP)

function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 2.0mm
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach


Product Description:


Product Features

Split film yarn non woven geotextile is made of polypropylene, Cb-fiber ribbonfil as raw material after the Geosynthetics are widely used in water conservancy, power, harbour, highway, railway construction and other geotechnical engineering. High strength, due to the use of plastic tape, can maintain sufficient strength and elongation in dry and wet conditionsCorrosion resistance, in different pH of soil and water can be long-term corro­sion resistance.To have a space between the permeable flat, it has good permeability. Good antimicrobial resistance, no damage to microorganisms or insect pests. Construction is convenient, because the material is light and soft, so transpor­tation, laying, construction convenience. Complete specifications: width of up to 6 meters. Is currently the most wide product, unit area quality: 100-600gsm



Filtration:

A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.

Perforation and permeability are the most important properties of geotextiles with infiltration action.



Reinforcement:

The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.



Sealing:

A layer of nonwoven geotextile is saturated between existing and new asphalt layers.


Technical Parameters:



No. item type 100 150 200 250 300 350 400 450 500 600 800 note
2 Thickness (mm,≧) 0.9 1.3 1.7 1.9 2.1 2.4 2.7 3 3.3 4.1 5
3 Width Deviation (%) -0.5
4 Breaking Strength (KN/m≧) 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 Horizontal & Vertical
5 Elongation at Break (%) 25-100
6 CBR Bursting Strength (KN) 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
8 Equivalent Aperture O90 (O95) mm 0.07-0.2
9 Vertical Permeability (cm/s) Kx(10-1-10-3) K=1.0*9.9
10 Tear Strength (KN≧ ) 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 Horizontal & Vertical



Application:

  • Rip Rap Erosion Control
  • Driveway/Road Stabilization
  • Separation of Aggregates
  • Railroad Construction
  • Erosion Control
  • Support Under Seawalls

Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 0


 Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 1
 Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 2

Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 3


Advantage:



Filtration : By non woven into a regular network and calendared , the filaments retain dimensional stability relative to each other. These characteristics make it ideal for preventing the passage of fine soil granules and allowing passage of fluid.

Reinforcement : Safely limit the excursion of civil work over long time of use and transfer or allocate the stress on soil over a larger area.

Separation : Separate the civil work materials into stable interfaces and ensure them to function both individually and as a whole.

Cushion buffer : Placed on a slope , it can prevent soil granules from being flushed away.

Corrosion resistance : The geotextile is resistant to ultraviolet degradation and also to biological and chemical environments normally found in soils.


​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,

3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.


 Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 4


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 5



Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 6


Why Choose US:

Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 7

FAQ:

Reinforcement In Infrastructure Construction Nonwoven Geotextile Fabric 800gsm 8
