Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 180G
Minimum Order Quantity: 2050 Square Meters
Price: USD 0.15-1.05 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project Weight: 180 G/㎡
Material: Non Woven Fabric Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Protect Water, Isolate, Reinforce, Drainage, Separate Soil Application: Road, Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China
High Light:

3.8oz Filtration Geotextile Fabric

,

Nonwoven Geotextile Fabric 3.8oz Filtration

,

Short Filament Non Woven Geotextile Fabric


Product Description

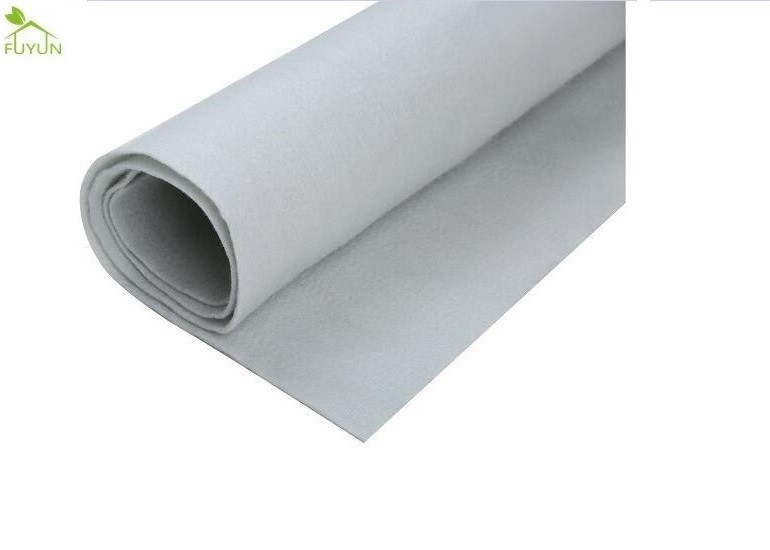

Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project

Quick Detail:
material: polyester, polypropylene(PET, PP)

function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 1.5mm
application: road, tidal reclamation project, coastal, flood dam, subsoil, coastal beach


Product Description:


Nonwoven Geotextiles have a wide range of applications in civil infrastructure engineering and construction projects. Produced from high quality polypropylene fibres, the Nonwoven Geotextiles are needle punched to form a strong fabric that retains its dimensional stability and is resistant to damage from construction stresses. Nonwoven Geotextiles are also available in varying strengths and thicknesses to ensure appropriate material selection for your project. Custom roll sizes are also available.



Filtration:

A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.

Perforation and permeability are the most important properties of geotextiles with infiltration action.



Reinforcement:

The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.



Sealing:

A layer of nonwoven geotextile is saturated between existing and new asphalt layers.


Technical Parameters:



No. item type 100 150 200 250 300 350 400 450 500 600 800 note
2 Thickness (mm,≧) 0.9 1.3 1.7 1.9 2.1 2.4 2.7 3 3.3 4.1 5
3 Width Deviation (%) -0.5
4 Breaking Strength (KN/m≧) 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 Horizontal & Vertical
5 Elongation at Break (%) 25-100
6 CBR Bursting Strength (KN) 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
8 Equivalent Aperture O90 (O95) mm 0.07-0.2
9 Vertical Permeability (cm/s) Kx(10-1-10-3) K=1.0*9.9
10 Tear Strength (KN≧ ) 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 Horizontal & Vertical



Application:

  • Rip Rap Erosion Control
  • Driveway/Road Stabilization
  • Separation of Aggregates
  • Railroad Construction
  • Erosion Control
  • Support Under Seawalls

Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 0


 Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 1
 Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 2

Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 3


Advantage:

  • Manufactured from inert high tenacity virgin polypropylene fibres giving excellent long term durability in all soil types
  • High static and dynamic puncture resistance ensures a low risk of damage during construction.
  • Designed to reduce the required depth of a sub-base, which, in turn, saves construction costs
  • Random orientated web with isotropic properties provide the same strength, permeability and filtration in all directions.
  • High elongation at break maintains separation and filtration function under load particularly in soft and variable ground conditions.
  • Help retain aggregates in place and prevent sinking
  • All our geotextiles have a tensile strength of 8.0kN/m


​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,

3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.


 Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 4


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 5



Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 6


Why Choose US:

Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 7

FAQ:

Short Filament Nonwoven Geotextile Fabric 3.8oz Filtration Underground Project 8
