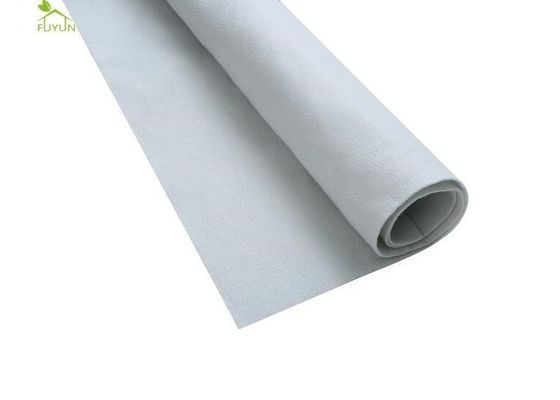

Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 120G
Minimum Order Quantity: 1950 Square Meters
Price: USD 0.25-1.75 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: Cycleways Footpaths Short Filament Nonwoven Geotextile Fabric 120g Filtration Weight: 120 G/㎡
Material: Non Woven Fabric Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Protect Water, Isolate, Reinforce, Drainage, Separate Soil Application: Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China
High Light:

Cycleways Footpaths Nonwoven Geotextile Fabric

,

Nonwoven Geotextile Fabric 120g


Product Description

Cycleways Footpaths Short Filament Nonwoven Geotextile Fabric 120g Filtration

Short Filament Nonwoven Geotextile Fabric 180g Filtration In Asphalt Overlay

Quick Detail:
material: polyester, polypropylene(PET, PP)

function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 2.5mm
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach


Product Description:


Nonwoven Geotextiles have a wide range of applications in civil infrastructure engineering and construction projects.

Produced from high quality polypropylene fibres, the Nonwoven Geotextiles are needle punched to form a strong fabric that retains its dimensional stability and is resistant to damage from construction stresses. Nonwoven Geotextiles are also available in varying strengths and thicknesses to ensure appropriate material selection for your project. Custom roll sizes are also available.



Filtration

The continuous filament structure of nonwoven geotextiles permits water to pass through while preventing soil migration. Spunbonded polyester nonwoven geotextiles are more cost effective than natural filters when used for revetment and subsoil drainage applications.

Separation

Nonwoven continuous filament geo fabrics are suitable for separating two layers of soil with different physical properties. Separating soft ground from coarse fill material reduces the amount of fill required and increases the life span of civil engineering structures such as roads and railways. They are frequently used in railway construction to separate the capping layer from the ballast layer.

Drainage

Nonwoven geotech fabrics improve the drainage performance of subsoil drainage systems in roads, railways, sports fields and behind retaining walls. They are ideal for draining or venting soils, such as the gas vent layer in a landfill cap.


Technical Parameters:



No. item type 100 150 200 250 300 350 400 450 500 600 800 note
2 Thickness (mm,≧) 0.9 1.3 1.7 1.9 2.1 2.4 2.7 3 3.3 4.1 5
3 Width Deviation (%) -0.5
4 Breaking Strength (KN/m≧) 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 Horizontal & Vertical
5 Elongation at Break (%) 25-100
6 CBR Bursting Strength (KN) 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
8 Equivalent Aperture O90 (O95) mm 0.07-0.2
9 Vertical Permeability (cm/s) Kx(10-1-10-3) K=1.0*9.9
10 Tear Strength (KN≧ ) 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 Horizontal & Vertical



Application:

  • Rip Rap Erosion Control
  • Driveway/Road Stabilization
  • Separation of Aggregates
  • Railroad Construction
  • Erosion Control
  • Support Under Seawalls

Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 0


 Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 1
 Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 2

Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 3


Advantage:

  • combines filtration properties and high water permeability
  • high resistance to puncture and abrasion
  • large choice of thickness of material (weight)
  • top level protection at high strain


​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,

3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.


 Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 4


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 5



Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 6


Why Choose US:

Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 7

FAQ:

Cycleways Footpaths Nonwoven Geotextile Fabric 120g Filtration Short Filament 8
