0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: GM13, ISO, GB, ASTM, SASO, SONCAP
Model Number: 0.5MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.35-1.65 square meters
Packaging Details: Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 20 Tons per Day
Detail Information
Thickness: 0.5mm Width: 6m
Length: 50m/roll Application: Taillings Pond, Exposed Ponds, Landfills, Sewage Plant, Urban Waste Dump
Material: EVA, PVC, HDPE, Polyethylene Function: Antiseepage, Antileakage, Impermeable, Waterproof, Protect Environment
Color: Smooth Black Product Name: 0.5mm Thickness Covering Landfills HDPE LLDPE Geomembrane Fabric Lining Smooth Antiseepage System
High Light:

0.5mm Thickness Geomembrane Lining

,

Geomembrane Lining Smooth

,

Anti Seepage Geomembrane Lining


Product Description

0.5mm Thickness Covering Landfills HDPE LLDPE Geomembrane Fabric Lining Smooth Antiseepage System

Quick Detail:

  • material: HDPE, LDPE, LLDPE
  • length: 50m
  • width: 6m
  • thickness:  0.5mm
  • function: leakage control, seepage control, waterproof, protect environment
  • application: tailings pond, exposed ponds, solid waste Containment & other agriculture, chemical industry, sewage plant

Production Description:


Most landfill lining systems today are made up of an engineered composition of Geonet, Geosynthetic Clay Liner (GCL), smooth or textured HDPE, and Geotextile, depending upon engineering recommendations and the nature of the landfill cell as it is constructed. Landfill lining systems are used to contain hazardous leachates and to protect the groundwater which would otherwise become contaminated.



HDPE is an excellent product for large applications that require UV and Ozone resistance, chemical resistance or high-quality installations. Typically used in landfill and mining applications, this product is delivered in large rolls with a width of 4 to 7.5 meters and is heat welded in the field by trained technicians providing a high quality, test certified installation. HDPE offers the most cost effective liner for large projects. HDPE is available in thicknesses ranging from 0.2mm to 3mm. HDPE Liners are a cost effective choice for lining projects that are exposed to sun and rain. It is used in landfills, lagoons, animal waste ponds and mining, and power plant applications.


Specification:

Item Properties Unit Thickness
  1.0 1.25 1.5 2.0 2.5 3.0
1 Roughness Height mm 0.25
2 Minimum Density g/cm3 0.939
3 Breaking Strength N/mm 10 13 16 21 26 32
4 Elongation at Break % 100
5 Right Angle Tear Strength N 125 156 187 249 311 374
6 Puncture Strength N 267 333 400 534 667 800
7 Stress Crack Resistance Hrs 300
8 Carbon Black Content (range) % 2.0-3.0
9 Low Temperature Impact Embrittlement at -70℃ / ok
10 Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) / ≤1.0*10-13
11 Dimensional Stability % ±2

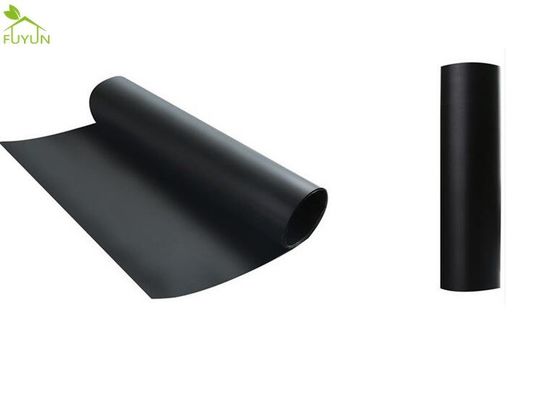

0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 0
0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 1
0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 2


Application:

  • Effluent Ponds
  • Exposed Ponds
  • Storm Water Collections Ponds
  • Waste Water

0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 3
0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 4

Advantage:


1)High anti-seepage ratio:

HDPE geomembrane has a great anti-seepage effect unmatched by ordinary waterproof materials, and is recommended in some projects with high anti-seepage requirements.It's Permeability property is ≤1.0*10-13g●cm/(cm2●s●pa).



2)Chemical Stability:

It has excellent stability, acid and alkali resistance, salt solution, oil, alcohol, etc., and is mostly used in sewage treatment and landfills.



3)Anti plant root system

HDPE geomembrane has excellent puncture resistance and resists most plant roots. It is a must-choice product for planting roofs.



4)Aging resistance

HDPE geomembrane has excellent anti-aging, anti-ultraviolet, anti-decomposition capabilities. Oven aging at 85℃, standard OIT, 55% retained after 90 days, oven aging at 85℃,high pressure OIT, 80% retained after 90 days.



5)High Mechanic strength

It has good mechanical strength, and is first choice for seepage prevention in water conservancy projects. The tensile strength ,tear resistance, and puncture resistance properties all meet GRI-GM13 standard.



6)Low cost

Compared with other traditional materials, HDPE geomembrane has obvious cost advantages and is the best product for water storage and anti-seepage.



7)Environmental protection formulation

The raw materials used in Yingfan HDPE geomembrane have reached relevant international standards, and are non-toxic and environmentally friendly. Widely used in drinking water ponds, breeding ponds, etc.



8)Rapid construction

Compared with other traditional materials, HDPE geomembrane can be laid in a variety of forms to meet different construction requirements.


Package:

Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2

0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 5


Factory Show:



0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 6


Why Choose us?

0.5mm Thickness HDPE LLDPE Geomembrane Lining Smooth Anti Seepage 7
