|Place of Origin:||Hefei, China|
|Certification:||CE, ISO, SGS, BV, GB, ASTM|
|Minimum Order Quantity:||1950 Square Meters|
|Price:||USD 0.25-1.75 Square Meter|
|Packaging Details:||packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal|
|Supply Ability:||28.5 Tons per Day|
|Product Name:||Short Filament Nonwoven Geotextile Fabric 180g Filtration In Asphalt Overlay||Weight:||180 G/㎡|
|Material:||Non Woven Fabric||Rolling Size:||Width: From 1m To 6m, Length: From 60m To 260m|
|Function:||Protect Water, Isolate, Reinforce, Drainage, Separate Soil||Application:||Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam|
|Origin:||Made In China|
Asphalt Overlay Nonwoven Geotextile Fabric,
Nonwoven Geotextile Fabric 180g,
1.5mm Nonwoven Geotextile Fabric

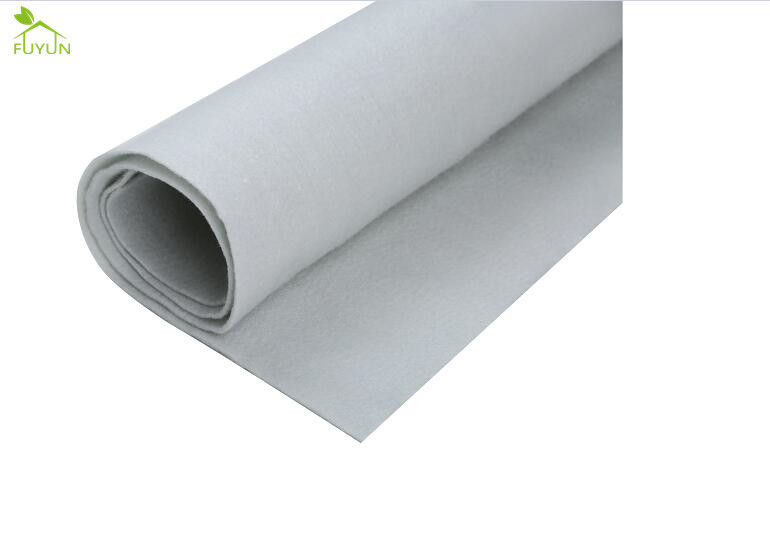

Short Filament Nonwoven Geotextile Fabric 180g Filtration In Asphalt Overlay
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach
The most common nonwoven is a needle-punched product. Staple fibers or continuous filaments are bonded by mechanically entangling the fibers with barbed needles. It looks and feels like black felt. Occasionally, the product will be manufactured in white or orange. Orange nonwovens serve as a warning barrier indicating contaminated soils.Another method of manufacturing nonwoven geotextiles is spunbonding. During this process extruded filaments are spun onto a collecting belt and bonded by applying heated rolls. It results in a smoother and stiffer product with reduced pore size and increased strength. Spunbond products are usually gray in color.
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
|3||Width Deviation (%)||-0.5|
|4||Breaking Strength (KN/m≧)||2.5||4.5||6.5||8||9.5||11||12.5||14||16||19||25||Horizontal & Vertical|
|5||Elongation at Break (%)||25-100|
|6||CBR Bursting Strength (KN)||0.3||0.6||0.9||1.2||1.5||1.8||2.1||2.4||2.7||3.2||4|
|8||Equivalent Aperture O90 (O95) mm||0.07-0.2|
|9||Vertical Permeability (cm/s)||Kx(10-1-10-3)||K=1.0*9.9|
|10||Tear Strength (KN≧ )||0.08||0.12||0.16||0.2||0.24||0.28||0.33||0.38||0.42||0.46||0.6||Horizontal & Vertical|
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
all products will be delivered in time according to the requirement,
