Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 130G
Minimum Order Quantity: 1950 Square Meters
Price: USD 0.65-1.15 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: Short Filament Nonwoven Geotextile Fabric 130g Filtration In Infrastructure Construction Weight: 130 G/㎡
Material: Non Woven Fabric Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Protect Water, Isolate, Reinforce, Drainage, Separate Soil Application: Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China
High Light:

Infrastructure Construction Nonwoven Geotextile Fabric

,

Nonwoven Geotextile Fabric 130g

,

Nonwoven Geotextile Fabric Isolate


Product Description

Short Filament Nonwoven Geotextile Fabric 130g Filtration In Infrastructure Construction

Quick Detail:
material: polyester, polypropylene(PET, PP)

function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 2.0mm
application: tidal reclamation project, coastal, flood dam, subsoil, coastal beach


Product Description:


Geotextile fabric, also known as landscape fabric, geofabrics (geo fabric), filter fabric, is a water-permeable geosynthetic material, which is made of synthetic fibers by needle punching or weaving. Geotextile fabric is one of the new geosynthetics. The finished product is fabric-like with a width of 4-6 meters and a length of 50-100 meters.



Geofabrics have excellent filtration, drainage, isolation, reinforcement and protection. They have the characteristics of light weight, high tensile strength, good permeability, high temperature resistance, freeze resistance, aging resistance and corrosion resistance.



Geotextile Types

Geotextile Fabric is mainly devided into woven and non-woven geotextile fabric and wet-laid geofabrics.

Non-woven geotextile fabric is fabric-like material made of staple fibers or filament fibers that are bonded together by mechanical treatment.
Woven geotextile fabric is textile formed by weaving, usually formed on a loom, and made of a number of threads woven on warp and weft.



Filtration:

A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.

Perforation and permeability are the most important properties of geotextiles with infiltration action.



Reinforcement:

The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.



Sealing:

A layer of nonwoven geotextile is saturated between existing and new asphalt layers.


Technical Parameters:



No. item type 100 150 200 250 300 350 400 450 500 600 800 note
2 Thickness (mm,≧) 0.9 1.3 1.7 1.9 2.1 2.4 2.7 3 3.3 4.1 5
3 Width Deviation (%) -0.5
4 Breaking Strength (KN/m≧) 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 Horizontal & Vertical
5 Elongation at Break (%) 25-100
6 CBR Bursting Strength (KN) 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
8 Equivalent Aperture O90 (O95) mm 0.07-0.2
9 Vertical Permeability (cm/s) Kx(10-1-10-3) K=1.0*9.9
10 Tear Strength (KN≧ ) 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 Horizontal & Vertical



Application:

  • Rip Rap Erosion Control
  • Driveway/Road Stabilization
  • Separation of Aggregates
  • Railroad Construction
  • Erosion Control
  • Support Under Seawalls

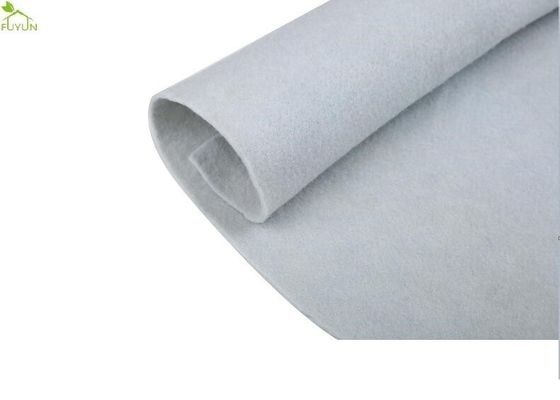

Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 0

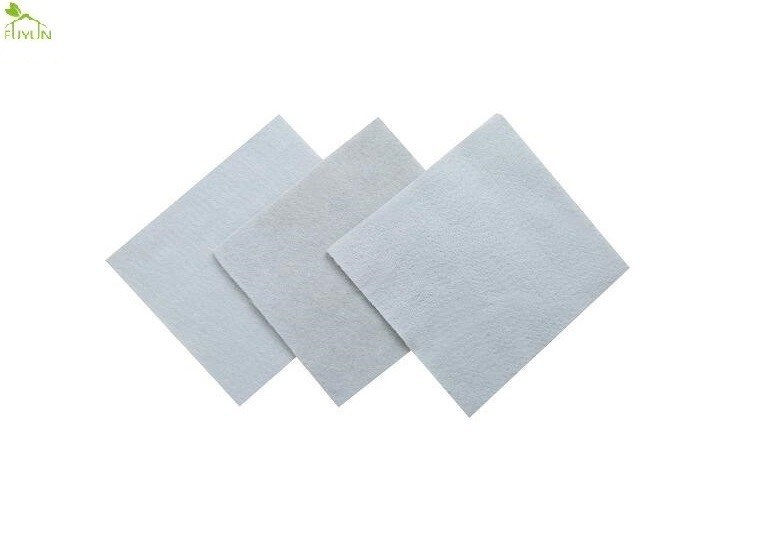

 Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 1
 Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 2

Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 3


Advantage:

  • combines filtration properties and high water permeability
  • high resistance to puncture and abrasion
  • large choice of thickness of material (weight)
  • top level protection at high strain


​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,

3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.


 Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 4


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 5



Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 6


Why Choose US:

Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 7

FAQ:

Filtration In Infrastructure Construction Nonwoven Geotextile Fabric 130g 8
