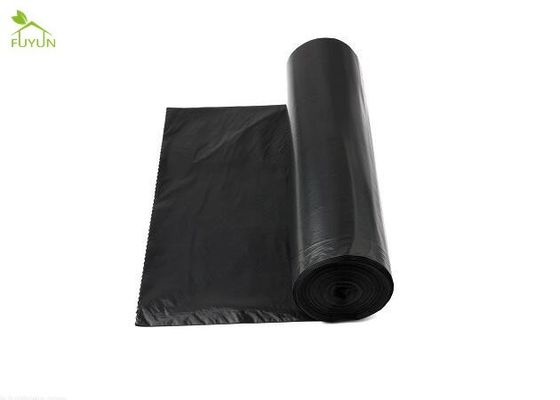

Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, GB, BV, SASO, SONCAP, ASTM
Model Number: 1.0MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.55-2.65 square meters
Packaging Details: Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons
Delivery Time: 10Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Length: 50m/roll Application: Fish Tank, Storage Tank, Duck Pond, Fish Pond, Shrimp Pond
Material: HDPE, LDPE, LLDPE, PVC, Polyethylene, EVA Function: Anti Seepage, Temperature Control, Oxygenation
Density: 0.50~ 0.96 G/cm Product Name: Dam Liner Lining Fabric Tanks HDPE Geomembrane Fabric 1.0mm Thickness ASTM
Certificate: ASTM, ISO, GM13 Origin: Made In China
High Light:

Shrimp Storage Tanks Geomembrane Fabric

,

ASTM HDPE Geomembrane Lining

,

Dam Geomembrane Fabric


Product Description

Dam Liner Lining Fabric Tanks HDPE Geomembrane Fabric 1.0mm Thickness ASTM

Shrimp Storage Tanks HDPE Geomembrane Fabric 1.0mm Thickness ASTM

Quick Detail:

  • material: HDPE, LDPE
  • length: 50m
  • width: 6m
  • thickness:  1.0mm
  • function: anti seepage, oxygenation, temperature control
  • application: duck pond, fish pond, fish tank, shrimp tank

Production Description:



HDPE geomembrane is made from high grade polyethylene raw material ,adding carbon black ,antioxidant, anti-aging and UV resistance component .It adopted the first class automatic production equipment and three-layer pressing technology. All products are in accordance with GB/GRI/ASTM standard.

(0.5 or 0.75mm-thickness is used for pond liner, 1.5mm-thickness is used for landfill, 2.0mm-thickness is used for dam liner.)



HDPE Geomembrane (High-Density Polyethylene)


HDPE geomembrane liners are the preferred product for lining projects. HDPE liners are resistant to many different solvents and are the most widely used geomembrane liner in the world. Although HDPE geomembrane is less flexible than LLDPE, it provides higher specific strength and can withstand higher temperatures. Its exceptional chemical and ultraviolet resistance properties make it an extremely cost-effective product.



Table1(a) – High Density Polyethylene (HDPE) Geomembrane -Smooth





  Properties Test       Test Value       Testing Frequency
    Method 30 mils 40 mils 50 mils   60 mils 80 mils 100 mils 120 mils (minimum)
Thickness (min. ave.) D5199 nom. Nom. Nom.   Nom. Nom. Nom. Nom. Per roll
· lowest individual of 10 values   -10% -10% -10%   -10% -10% -10% -10%
Density mg/l (min.) D 1505/D 792 0.940 g/cc 0.940 g/cc 0.940 g/cc   0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 200,000 lb
Tensile Properties (1) (min. ave.) D 6693                 20,000 lb
· yield strength Type IV 63 lb/in. 84 lb/in. 105 lb/in.   126 lb/in. 168 lb/in. 210 lb/in. 252 lb/in.
· break strength   114 lb/in. 152 lb/in. 190 lb/in.   228 lb/in. 304 lb/in. 380 lb/in. 456 lb/in.
· yield elongation   12% 12% 12%   12% 12% 12% 12%
· break elongation   700% 700% 700%   700% 700% 700% 700%
Tear Resistance (min. ave.) D 1004 21 lb 28 lb 35 lb   42 lb 56 lb 70 lb 84 lb 45,000 lb
Puncture Resistance (min. ave.) D 4833 54 lb 72 lb 90 lb   108 lb 144 lb 180 lb 216 lb 45,000 lb
Stress Crack Resistance (2) D5397 300 hr. 300 hr. 300 hr.   300 hr. 300 hr. 300 hr. 300 hr. per GRI-GM10
    (App.)
Carbon Black Content (range) D 4218 (3) 2.0-3.0% 2.0-3.0% 2.0-3.0%   2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 20,000 lb
Carbon Black Dispersion D 5596 note (4) note (4) note (4)   note (4) note (4) note (4) note (4) 45,000 lb
Oxidative Induction Time (OIT) (min. ave.) (5)                   200,000 lb
(a) Standard OIT D 3895 100 min. 100 min. 100 min.   100 min. 100 min. 100 min. 100 min.
  — or —
(b) High Pressure OIT D 5885 400 min. 400 min. 400 min.   400 min. 400 min. 400 min. 400 min.
Oven Aging at 85°C (5), (6) D 5721
(a) Standard OIT (min. ave.) - % retained after 90 days D 3895 55% 55% 55%   55% 55% 55% 55% per each
  — or —                   formulation
(b) High Pressure OIT (min. ave.) - % retained after 90 days D 5885 80% 80% 80%   80% 80% 80% 80%
UV Resistance (7) D 7238
(a) Standard OIT (min. ave.) D 3895 N.R. (8) N.R. (8) N.R. (8)   N.R. (8) N.R. (8) N.R. (8) N.R. (8) per each
  — or —                   formulation
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) D 5885 50% 50% 50%   50% 50% 50% 50%



Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:



  • Effluent Ponds
  • Exposed Ponds
  • Storm Water Collections Ponds
  • Waste Water
  • Landfill Caps

Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 0

Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 1

Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 2

Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 3





Advantage:



- Eliminate contamination of liquid waste in the pond to the ground

- Eliminate the negative effects that can be caused by soil in the pond

- Increasing the efficiency of probiotic use in water due to the absence of absorption from the soil (especially for shrimp farms)



Package:



Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2



Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 4





Factory Show:



Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 5





Why Choose us?



Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 6



FAQ:



Dam Tanks HDPE Geomembrane Fabric ASTM 1.0mm Thickness 7
