Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | ISO, BV, SASO, SONCAP, ASTM |
Model Number: | 1.5MM |
Minimum Order Quantity: | 2000 square meters |
Price: | USD 0.45-2.65 square meters |
Packaging Details: | Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons |
Delivery Time: | 10Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 25 Tons per Day |
Length: | 50m/roll | Application: | Solid Watse Site, Fish Tank, Fish Pond, Shrimp Pond |
---|---|---|---|
Material: | HDPE, LLDPE, PVC, Polyethylene, EVA | Function: | Anti Seepage, Temperature Control |
Density: | 0.90~ 0.96 G/cm | Product Name: | Coating Solid Waste Liner Geomembrane Fabric HDPE 1.5mm Thickness Anti Seepage |
Certificate: | ASTM, ISO | Origin: | Made In China |
High Light: | HDPE Geomembrane Liner Anti Seepage,1.5mm HDPE Geomembrane Liner,Solid Waste Geomembrane Fabric |

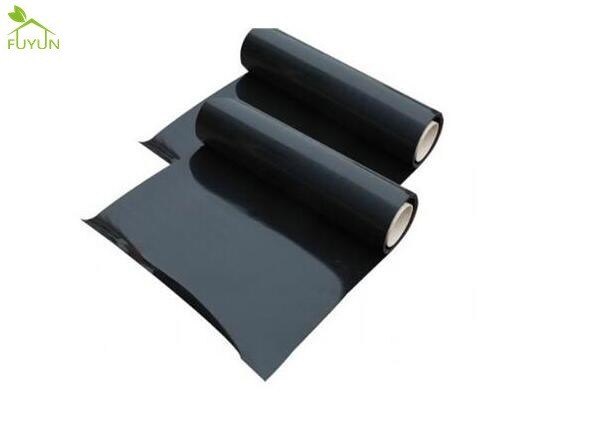

Coating Solid Waste Liner Geomembrane Fabric HDPE 1.5mm Thickness Anti Seepage
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
Manufactured in 1.00 – 1.50 – 1.80 – 2.00 – 2.50 mm thicknesses and multi layered laminated membranes. The assembly is manufactured on the longitudinal and horizontal guide lines for ease of application. The bottom layer is black, the top signal layer is yellow as standard. According to the application detail size produced in the project, the product can be made in any size. Provides excellent insulation between -30 ° C and +85 ° C.
Table1(a) – High Density Polyethylene (HDPE) Geomembrane -Smooth
Properties | Test | Test Value | Testing Frequency | ||||||||
Method | 30 mils | 40 mils | 50 mils | 60 mils | 80 mils | 100 mils | 120 mils | (minimum) | |||
Thickness (min. ave.) | D5199 | nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Per roll | ||
· lowest individual of 10 values | -10% | -10% | -10% | -10% | -10% | -10% | -10% | ||||
Density mg/l (min.) | D 1505/D 792 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 200,000 lb | ||
Tensile Properties (1) (min. ave.) | D 6693 | 20,000 lb | |||||||||
· | yield strength | Type IV | 63 lb/in. | 84 lb/in. | 105 lb/in. | 126 lb/in. | 168 lb/in. | 210 lb/in. | 252 lb/in. | ||
· | break strength | 114 lb/in. | 152 lb/in. | 190 lb/in. | 228 lb/in. | 304 lb/in. | 380 lb/in. | 456 lb/in. | |||
· | yield elongation | 12% | 12% | 12% | 12% | 12% | 12% | 12% | |||
· | break elongation | 700% | 700% | 700% | 700% | 700% | 700% | 700% | |||
Tear Resistance (min. ave.) | D 1004 | 21 lb | 28 lb | 35 lb | 42 lb | 56 lb | 70 lb | 84 lb | 45,000 lb | ||
Puncture Resistance (min. ave.) | D 4833 | 54 lb | 72 lb | 90 lb | 108 lb | 144 lb | 180 lb | 216 lb | 45,000 lb | ||
Stress Crack Resistance (2) | D5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | per GRI-GM10 | ||
(App.) | |||||||||||
Carbon Black Content (range) | D 4218 (3) | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 20,000 lb | ||
Carbon Black Dispersion | D 5596 | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | 45,000 lb | ||
Oxidative Induction Time (OIT) (min. ave.) (5) | 200,000 lb | ||||||||||
(a) | Standard OIT | D 3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | ||
— or — | |||||||||||
(b) High Pressure OIT | D 5885 | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | |||
Oven Aging at 85°C (5), (6) | D 5721 | ||||||||||
(a) Standard OIT (min. ave.) - % retained after 90 days | D 3895 | 55% | 55% | 55% | 55% | 55% | 55% | 55% | per each | ||
— or — | formulation | ||||||||||
(b) High Pressure OIT (min. ave.) - % retained after 90 days | D 5885 | 80% | 80% | 80% | 80% | 80% | 80% | 80% | |||
UV Resistance (7) | D 7238 | ||||||||||
(a) Standard OIT (min. ave.) | D 3895 | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | per each | ||
— or — | formulation | ||||||||||
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) | D 5885 | 50% | 50% | 50% | 50% | 50% | 50% | 50% |
Specification:
general parameter:
Thickness | 0.15-3.0mm & customer ' s requirement |
Width | 1-8m & customer ' s requirement |
Length | 50-200m & customer ' s requirement |
Material | HDPE |
Color | Black,White,Green,Blue & customer ' s requirement |
Surface | Smooth |
Package | Double layers woven bag, and add two strap & customer ' s requirement |
Shipping Marks | support |
Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
Item | Properties | Unit | Thickness | |||||||
1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
2 | Density≧ | g/m3 | 0.94 | |||||||
3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
9 | Stress Crack Resistance | Hrs | 300 | |||||||
10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
High Pressure OIT | ≧ 400 min | |||||||||
13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
Building fundation & curtain
Highway tunnels
Reinforced concrete roofs (without U.V.)
Ballasted roofs
Metro structures
Underground galleries
Hangars
Wet areas
Building dilatation systems
Advantage:
Package:
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
