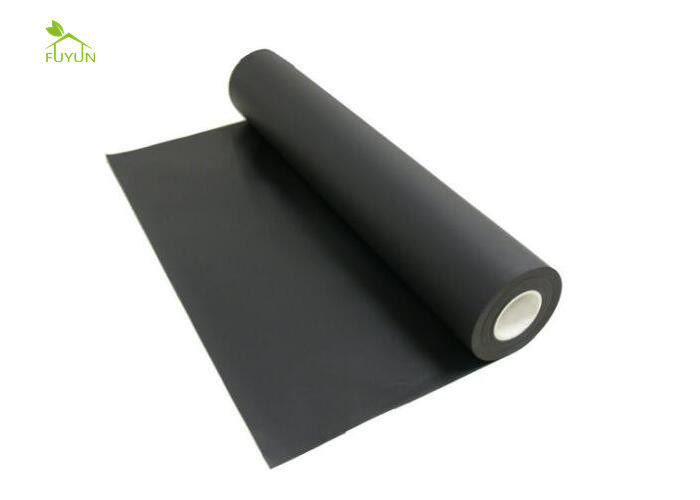

Covering Rockfill Dams HDPE LLDPE Geomembrane Fabric Smooth Antiseepage System
Quick Detail:
Production Description:
Geomembrane is a product made of rubber that is used as a coating material in drinkable water ponds. This coating material gets soft and flexible when heated, however, its internal properties do not change. When cooled, it can return to its original state. The main purpose of geomembrane is to provide impermeability. The provision of impermeability in the field application is again provided with geomembrane.
Geomembrane used in buildings provides smooth and excellent insulation between -30 and +85°C. In general, the area of use is quite large. It is used in building foundations, highway tunnels, concrete roofs, ballasted roofs, subway structures, underground galleries, hangars, wet volumes, and building dilatation systems. PVC membrane should be avoided direct contact with bitumen products due to its chemical structure. If the application is required, geotextile felt should be used as a separator layer.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Application:
Geomembrane is used in environmental, geotechnical, hydraulic and transport industries. In such fields;
Coating material in drinkable water ponds.
Coating material for general water tanks.
Coating material for liquid wastes.
Coating material for radioactive and hazardous liquid waste.
Coating material for saltwater solutions.
Coating material for aqueducts.
Coating material for various wastewater ducts.
Coating material for solid wastelands.
It is used to prevent leakage in filling dams.
Coating for hazardous drain box.
It is used in the provision of impermeability in tunnels.
It is used in the provision of impermeability in rockfill dams.
It is used in the provision of impermeability in masonry dams.
It is used to control impermeability in cofferdams.
It is used as prevention to odors coming from fillings.
It is used as a barrier against steam under buildings.
It is used to control swollen floors.
It is used to control frost-sensitive soil.
It is used in sensitive areas to prevent water leakage.
It is used to hold harmful liquid wastes that may occur under and near highways.
It is used as a coating structure for temporary loads.
It is used as a sealing layer to provide impermeability in asphalt superstructures.
Advantage:
1)High anti-seepage ratio:
HDPE geomembrane has a great anti-seepage effect unmatched by ordinary waterproof materials, and is recommended in some projects with high anti-seepage requirements.It's Permeability property is ≤1.0*10-13g●cm/(cm2●s●pa).
2)Chemical Stability:
It has excellent stability, acid and alkali resistance, salt solution, oil, alcohol, etc., and is mostly used in sewage treatment and landfills.
3)Anti plant root system
HDPE geomembrane has excellent puncture resistance and resists most plant roots. It is a must-choice product for planting roofs.
4)Aging resistance
HDPE geomembrane has excellent anti-aging, anti-ultraviolet, anti-decomposition capabilities. Oven aging at 85℃, standard OIT, 55% retained after 90 days, oven aging at 85℃,high pressure OIT, 80% retained after 90 days.
5)High Mechanic strength
It has good mechanical strength, and is first choice for seepage prevention in water conservancy projects. The tensile strength ,tear resistance, and puncture resistance properties all meet GRI-GM13 standard.
6)Low cost
Compared with other traditional materials, HDPE geomembrane has obvious cost advantages and is the best product for water storage and anti-seepage.
7)Environmental protection formulation
The raw materials used in Yingfan HDPE geomembrane have reached relevant international standards, and are non-toxic and environmentally friendly. Widely used in drinking water ponds, breeding ponds, etc.
8)Rapid construction
Compared with other traditional materials, HDPE geomembrane can be laid in a variety of forms to meet different construction requirements.
Package:
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
