| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SONCAP, ASTM |
| Model Number: | 0.25MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.55-2.75 square meters |
| Packaging Details: | Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons |
| Delivery Time: | 10Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Length: | 50m/roll | Application: | Mining Tailing Pond, Lobster Tank, Fish Pond, Shrimp Pond |
|---|---|---|---|
| Material: | LLDPE, HDPE, LDPE, Polyethylene, EVA, PVC | Function: | Anti Seepage, Temperature Control, Oxygenation, High Bearing Capacity |
| Density: | 0.90~ 0.96 G/cm | Product Name: | FishPond Shirmp Pond Geomembrane Lining Liners Fabric Antiseepage HDPE 0.25mm Thickness |
| Certificate: | ASTM, ISO, GM13 | Origin: | Made In China |
| High Light: | Shrimp Pond Geomembrane Lining,Shrimp Pond Geomembrane Fabric,0.25mm Thickness Geomembrane Liners |
||

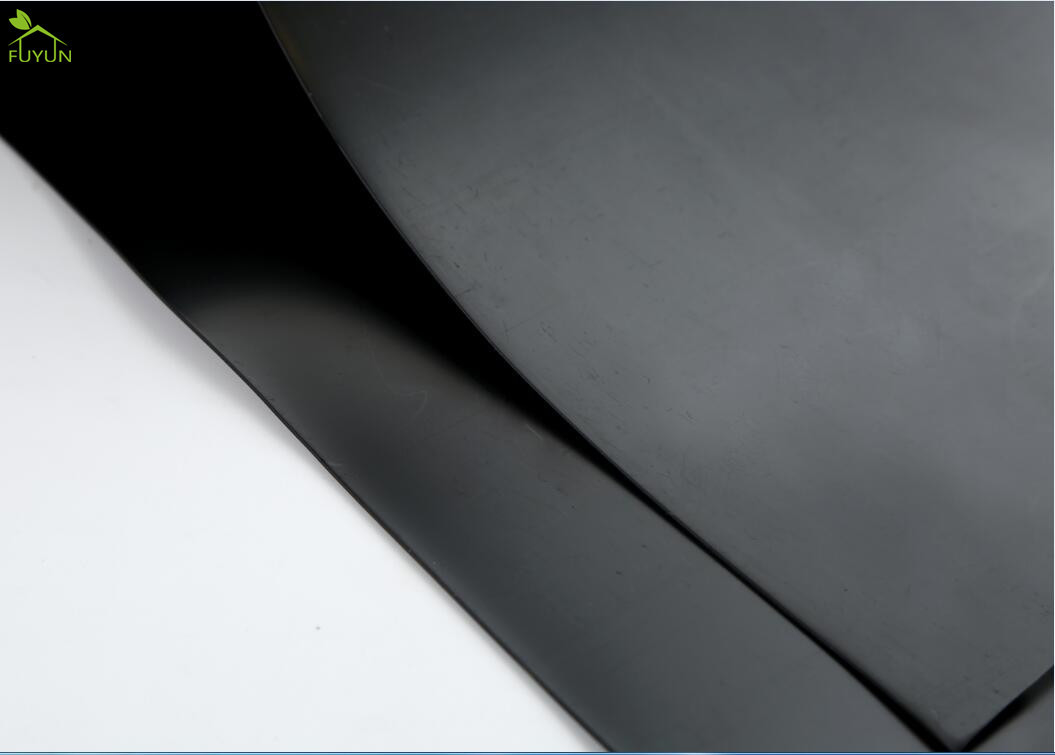

FishPond Shirmp Pond Geomembrane Lining Liners Fabric Antiseepage HDPE 0.25mm Thickness
Quick Detail:
Production Description:
HDPE geomembranes are products that are preferred for projects requiring liners with low permeability ,ultraviolet resistance and exceptional chemical properties, which makes them cost-effective for applications, such as:
Hazardous Waste Landfills
Solid Waste Landfills
Containment for Animal Waste
Pond Liners
Tank Liners
HDPE is an excellent product for large applications that require UV and Ozone resistance, chemical resistance or high-quality installations. Typically used in landfill and mining applications, this product is delivered in large rolls with a width of 4 to 7.5 meters and is heat welded in the field by trained technicians providing a high quality, test certified installation. HDPE offers the most cost effective liner for large projects. HDPE is available in thicknesses ranging from 0.2mm to 3mm
HDPE Liners are a cost effective choice for lining projects that are exposed to sun and rain. It is used in landfills, lagoons, animal waste ponds and mining, and power plant applications.
Table1(a) – High Density Polyethylene (HDPE) Geomembrane -Smooth
| Properties | Test | Test Value | Testing Frequency | ||||||||
| Method | 30 mils | 40 mils | 50 mils | 60 mils | 80 mils | 100 mils | 120 mils | (minimum) | |||
| Thickness (min. ave.) | D5199 | nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Per roll | ||
| · lowest individual of 10 values | -10% | -10% | -10% | -10% | -10% | -10% | -10% | ||||
| Density mg/l (min.) | D 1505/D 792 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 200,000 lb | ||
| Tensile Properties (1) (min. ave.) | D 6693 | 20,000 lb | |||||||||
| · | yield strength | Type IV | 63 lb/in. | 84 lb/in. | 105 lb/in. | 126 lb/in. | 168 lb/in. | 210 lb/in. | 252 lb/in. | ||
| · | break strength | 114 lb/in. | 152 lb/in. | 190 lb/in. | 228 lb/in. | 304 lb/in. | 380 lb/in. | 456 lb/in. | |||
| · | yield elongation | 12% | 12% | 12% | 12% | 12% | 12% | 12% | |||
| · | break elongation | 700% | 700% | 700% | 700% | 700% | 700% | 700% | |||
| Tear Resistance (min. ave.) | D 1004 | 21 lb | 28 lb | 35 lb | 42 lb | 56 lb | 70 lb | 84 lb | 45,000 lb | ||
| Puncture Resistance (min. ave.) | D 4833 | 54 lb | 72 lb | 90 lb | 108 lb | 144 lb | 180 lb | 216 lb | 45,000 lb | ||
| Stress Crack Resistance (2) | D5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | per GRI-GM10 | ||
| (App.) | |||||||||||
| Carbon Black Content (range) | D 4218 (3) | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 20,000 lb | ||
| Carbon Black Dispersion | D 5596 | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | 45,000 lb | ||
| Oxidative Induction Time (OIT) (min. ave.) (5) | 200,000 lb | ||||||||||
| (a) | Standard OIT | D 3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | ||
| — or — | |||||||||||
| (b) High Pressure OIT | D 5885 | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | |||
| Oven Aging at 85°C (5), (6) | D 5721 | ||||||||||
| (a) Standard OIT (min. ave.) - % retained after 90 days | D 3895 | 55% | 55% | 55% | 55% | 55% | 55% | 55% | per each | ||
| — or — | formulation | ||||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 90 days | D 5885 | 80% | 80% | 80% | 80% | 80% | 80% | 80% | |||
| UV Resistance (7) | D 7238 | ||||||||||
| (a) Standard OIT (min. ave.) | D 3895 | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | per each | ||
| — or — | formulation | ||||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) | D 5885 | 50% | 50% | 50% | 50% | 50% | 50% | 50% | |||
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1, Sanitary Landfill, Mining and Leachate Ponds;
2.Concrete, Pressed Steel Tanks and Secondary Containment;
3.Aquaculture Pond Liners;
4.Floating Covers, Covered Lagoons and CDM Biogas Digesters
Advantage:
Package:
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
