HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation

Basic Information
Place of Origin: Hefei, China
Brand Name: Xuqiu
Certification: ISO, GB, BV, SONCAP, ASTM
Model Number: TGM4800
Minimum Order Quantity: 1 set
Price: USD 450000-675000 set
Packaging Details: wood package
Delivery Time: 50Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Length: 22m Application: Making HDPE LDPE LLDPE Geomembrane
Width: 12m Height: 28m
Production Capacity: 1500kg/hour Product Name: Landfills Cover Antiseepage Geomembrane Fabric Oxygenation LLDPE HDPE LDPE 0.5mm Making Machine
Certificate: ASTM, ISO, GM13 Origin: Made In China
High Light:

Landfills Cover Geomembrane Making Machine

,

Oxygenation Geomembrane Making Machine

,

0.5mm Geomembrane Making Machine


Product Description

Landfills Cover Antiseepage Geomembrane Fabric Oxygenation LLDPE HDPE LDPE 0.5mm Making Machine



Quick Detail:

  • application: make HDPE, LDPE, LDPE
  • length: 22m
  • width: 12m
  • height: 28m
  • weight:150 ton

Production Description:



This machine unit is for making geomembrane, it includes 7 parts:  Single screw plastic extruder (three sets), Die Head Part, Cooling system, Traction device, Herringbone Plate Device, Geomembrane coiler, and Electrical configuration.



The screw used in the main engine is the high plasticized and large extrusion screw specially designed by our company. The main engine reducer is equipped with involute hard tooth face wheel box according to high reliability. It has low noise, high transmission efficiency, stable operation and durability. Plate Hydraulic Screen Change for Filter Device.



a. Basic structure of die head: three-layer co-extrusion internal composite screw die head

b. Processing technology of die head: All runner surfaces are plated with hard chromium and polished.

c. Die head diameter: 3SM2200mm

d. Die head clearance: 3.0mm

e. Heating mode of die head: cast aluminium heater (with safety cap), vertical arrangement, convenient zoning

f. Module temperature control mode: intelligent dual digital display control

g. Die head feeding car 1 set



The cooling fan is controlled by frequency converter, which can fine adjust the air volume, save energy and reduce consumption, and improve the quality of products. According to customer's needs, internal cooling device can be added.



Internal cooling control system is mainly composed of internal cooling air ring, variable frequency control intake fan, variable frequency control return fan, imported ultrasonic sensor, electrical control system and pipeline accessories. The ultrasonic probe adopts imported high-precision ultrasonic sensor. The sensor has non-linear temperature compensation function, so that the measurement accuracy meets the sampling requirements. The simulation accuracy of intake and outflow fan frequency converter is (+0.3%). Thus, the fan speed can be accurately controlled, and the air flow and pressure in and out can be accurately controlled. The electric control system adopts imported professional industrial PC control system, adopts floating-point arithmetic PID control, input analog filtering, eliminates jitter, and accurately controls the air flow in and out. The resolution is 1/4096 and the cycle is less than 5 ms.



The internal cooling control system is easy to operate and free of system debugging. In the process of production, the parameters of film width are input through the operation panel, so that the film specifications can be easily modified. The control process is automatically completed by program control, and the internal cooling parameters can be set according to the formula of film products.



Table1(a) – High Density Polyethylene (HDPE) Geomembrane -Smooth





  Properties Test       Test Value       Testing Frequency
    Method 30 mils 40 mils 50 mils   60 mils 80 mils 100 mils 120 mils (minimum)
Thickness (min. ave.) D5199 nom. Nom. Nom.   Nom. Nom. Nom. Nom. Per roll
· lowest individual of 10 values   -10% -10% -10%   -10% -10% -10% -10%
Density mg/l (min.) D 1505/D 792 0.940 g/cc 0.940 g/cc 0.940 g/cc   0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 200,000 lb
Tensile Properties (1) (min. ave.) D 6693                 20,000 lb
· yield strength Type IV 63 lb/in. 84 lb/in. 105 lb/in.   126 lb/in. 168 lb/in. 210 lb/in. 252 lb/in.
· break strength   114 lb/in. 152 lb/in. 190 lb/in.   228 lb/in. 304 lb/in. 380 lb/in. 456 lb/in.
· yield elongation   12% 12% 12%   12% 12% 12% 12%
· break elongation   700% 700% 700%   700% 700% 700% 700%
Tear Resistance (min. ave.) D 1004 21 lb 28 lb 35 lb   42 lb 56 lb 70 lb 84 lb 45,000 lb
Puncture Resistance (min. ave.) D 4833 54 lb 72 lb 90 lb   108 lb 144 lb 180 lb 216 lb 45,000 lb
Stress Crack Resistance (2) D5397 300 hr. 300 hr. 300 hr.   300 hr. 300 hr. 300 hr. 300 hr. per GRI-GM10
    (App.)
Carbon Black Content (range) D 4218 (3) 2.0-3.0% 2.0-3.0% 2.0-3.0%   2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 20,000 lb
Carbon Black Dispersion D 5596 note (4) note (4) note (4)   note (4) note (4) note (4) note (4) 45,000 lb
Oxidative Induction Time (OIT) (min. ave.) (5)                   200,000 lb
(a) Standard OIT D 3895 100 min. 100 min. 100 min.   100 min. 100 min. 100 min. 100 min.
  — or —
(b) High Pressure OIT D 5885 400 min. 400 min. 400 min.   400 min. 400 min. 400 min. 400 min.
Oven Aging at 85°C (5), (6) D 5721
(a) Standard OIT (min. ave.) - % retained after 90 days D 3895 55% 55% 55%   55% 55% 55% 55% per each
  — or —                   formulation
(b) High Pressure OIT (min. ave.) - % retained after 90 days D 5885 80% 80% 80%   80% 80% 80% 80%
UV Resistance (7) D 7238
(a) Standard OIT (min. ave.) D 3895 N.R. (8) N.R. (8) N.R. (8)   N.R. (8) N.R. (8) N.R. (8) N.R. (8) per each
  — or —                   formulation
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) D 5885 50% 50% 50%   50% 50% 50% 50%



Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:



1, Aquaculture: factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection, etc.;



HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 0

HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 1

HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 2

HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 3



Advantage:

  • High anti-seepage ratio
  • Chemical stability
  • Anti plant root system
  • Thermal aging resistance
  • High mechanic strength
  • Low cost
  • Environmental protection formulation
  • Rapid construction

Package:



Packaging Details:



HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 4

HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 5

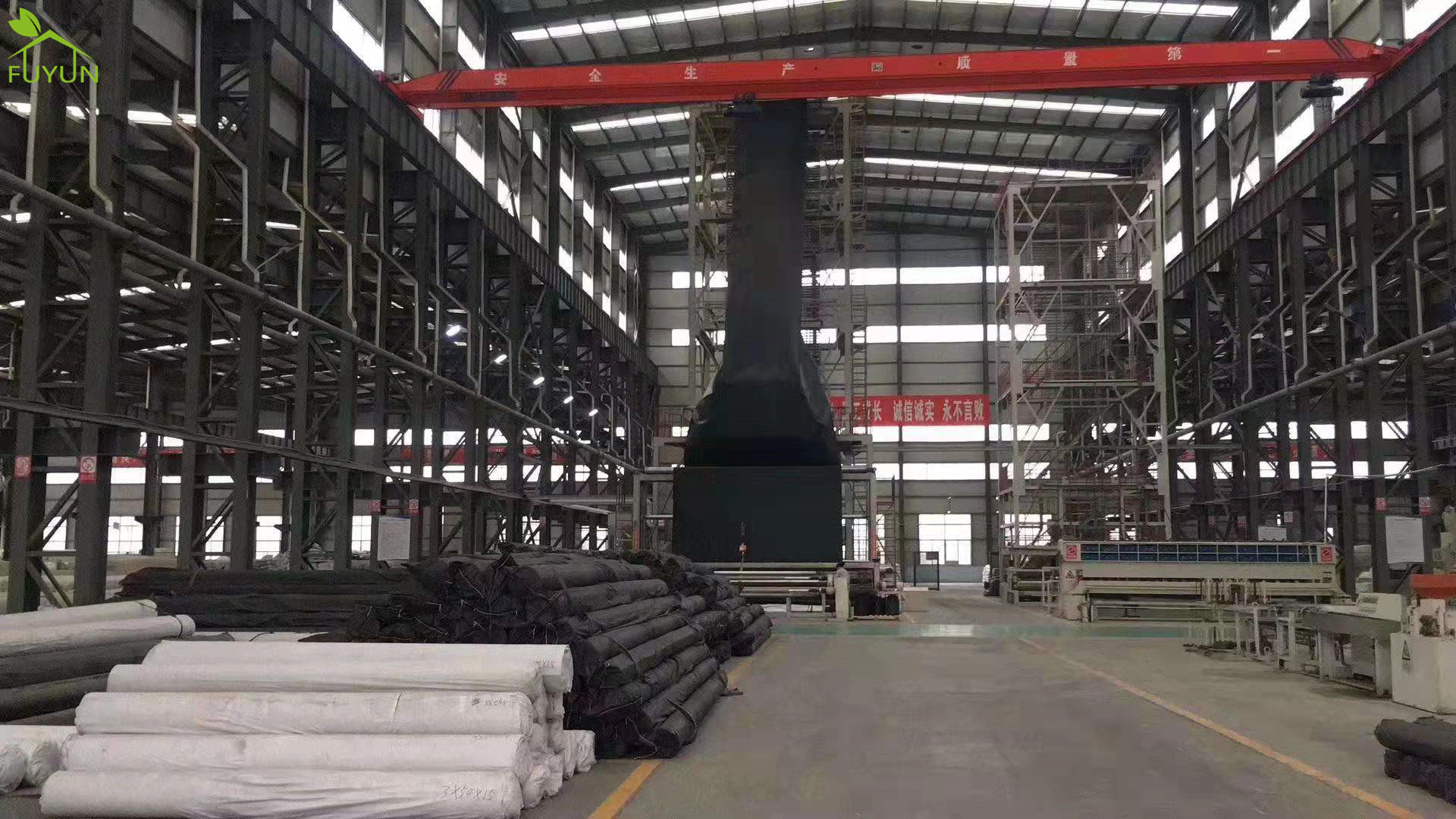

Factory Show:



HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 6





Why Choose us?



HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 7



FAQ:



HDPE LDPE 0.5mm Geomembrane Making Machine Landfills Cover Oxygenation 8
