| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 250 |
| Minimum Order Quantity: | 1850 Square Meters |
| Price: | USD 0.55-0.99 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Salt Industry 250g/M2 Nonwoven Geotextile Fabric Neddle Punched Environment Friendly | Weight: | 250 G/㎡ |
|---|---|---|---|
| Material: | ,polyester Non Woven Fabric | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Leakage, Isolate, Reinforce, Drainage, Separate Soil | Application: | Salty Industry Gravels Paths, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | Advantage: | Anti Wearing, Erosion |
| High Light: | Leakage Nonwoven Geotextile Fabric,Nonwoven Geotextile Fabric 250g/M2,Neddle Punched Nonwoven Geotextile Fabric |
||

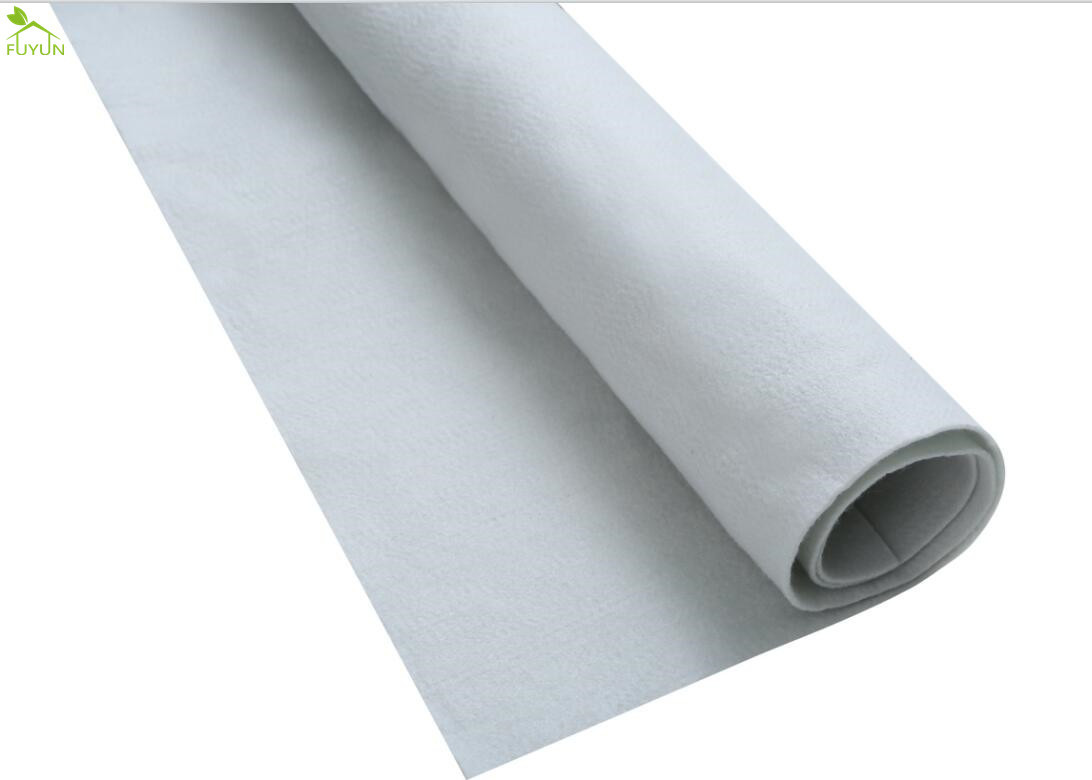

Salt Industry 250g/M2 Nonwoven Geotextile Fabric Neddle Punched Environment Friendly
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 6mm
application: tidal reclamation project, coastal, flood dam
Product Description:
Nonwoven geotextiles are multi-purpose fabrics that are felt-like in appearance. The important functions for this merchandise are filtration and separation. The most frequent nonwoven is a needle-punched product. Staple fibers or continuous filaments are bonded via automatically entangling the fibers with barbed needles. It can save installation time is an economical alternative to other geosynthetics. The raw material offers the most cost-effective range of geotextiles bringing the maximum value to your project, this range of nonwoven geotextiles offers excellent energy absorption characteristics as well as superior filtration performance.
Filtration:
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
Reinforcement:
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
Sealing:
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
Factory Show:
Why Choose US:
FAQ:
