| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 200 |
| Minimum Order Quantity: | 1950 Square Meters |
| Price: | USD 0.65-1.05 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Underground Project Short Filament Nonwoven Geotextile Fabric 200g For Soil Protection | Weight: | 250 G/㎡ |
|---|---|---|---|
| Material: | Non Woven Fabric | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | Soil Protection Nonwoven Geotextile Fabric,Nonwoven Geotextile Fabric 200g,2.0mm Nonwoven Geotextile Fabric |
||

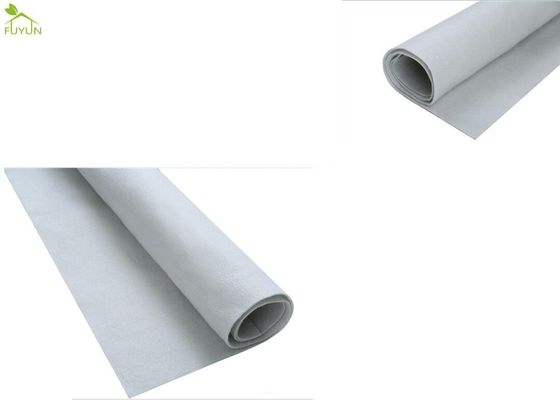

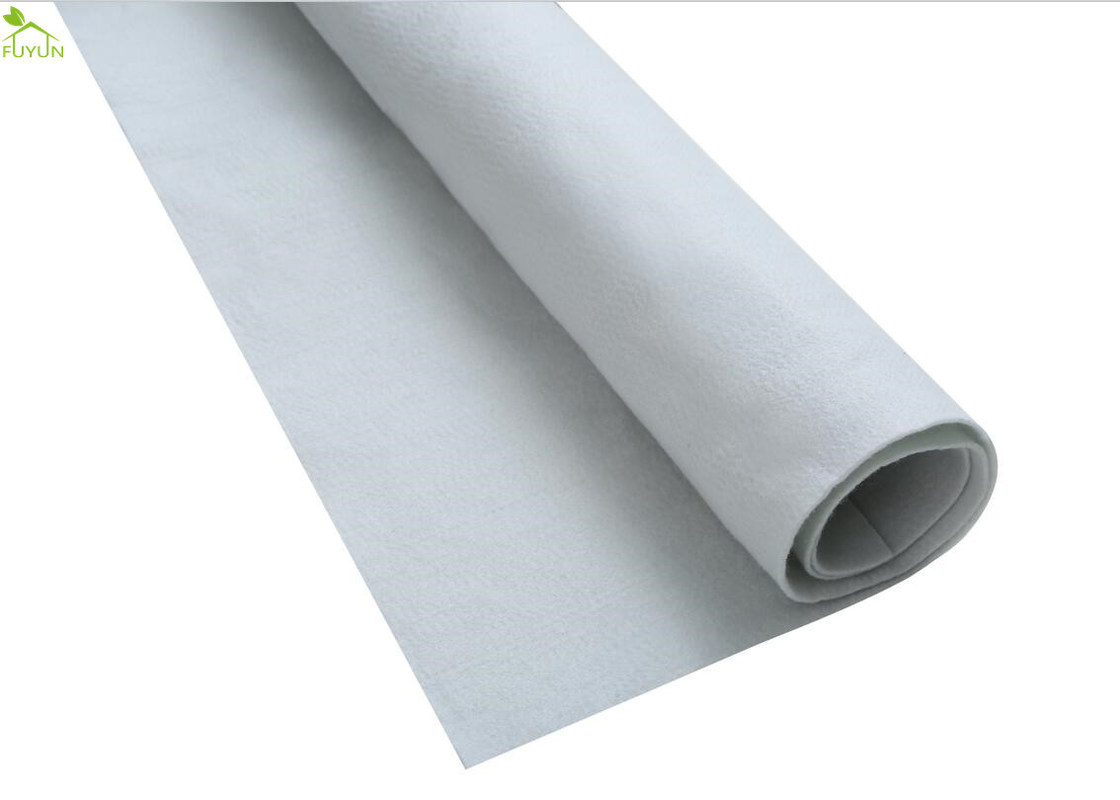

Underground Project Short Filament Nonwoven Geotextile Fabric 200g For Soil Protection
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 2.0mm
application: tidal reclamation project, coastal, flood dam, subsoil
Product Description:
A geotextile is typically defined as any permeable textile material used to increase soil stability, provide erosion control or aid in drainage. More simply put, if it is made of fabric and buried in the ground it is probably a geotextile! Geotextiles have been in use for thousands of years dating back to the Egyptian Pharaohs. These early geotextile applications were basically natural fibers or vegetation mixed directly with soil. Modern geotextiles are usually made from a synthetic polymer such as polypropylene, polyester, polyethylene and polyamides. Geotextiles can be woven, knitted or non-woven. Varying polymers and manufacturing processes result in an array of geotextiles suitable for a variety of civil construction applications.
Geotextile prevents the interception between two adjacent soils.For example, separating fine subsoil soils from lower coarse aggregates preserves the drainage and strength characteristics of geotextile composite materials.
Filtration:
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
Reinforcement:
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
Sealing:
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
