Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: CE, ISO, SGS, BV, GB, ASTM
Model Number: 200
Minimum Order Quantity: 1850 Square Meters
Price: USD 0.55-0.95 Square Meter
Packaging Details: packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m
Delivery Time: 7 Days
Payment Terms: T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal
Supply Ability: 28.5 Tons per Day
Detail Information
Product Name: Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament Environment Friendly Weight: 200 G/㎡
Material: ,polyester Non Woven Fabric Rolling Size: Width: From 1m To 6m, Length: From 60m To 260m
Function: Leakage, Isolate, Reinforce, Drainage, Separate Soil Application: Salty Industry Gravels Paths, Gabion Walls, Water Source Project, Coastal, Flood Dam
Origin: Made In China Advantage: Anti Wearing, Erosion
High Light:

Nonwoven Geotextile Fabric Short Filament

,

200g/M2 Nonwoven Geotextile Fabric

,

Salt Industry Nonwoven Geotextile Fabric


Product Description

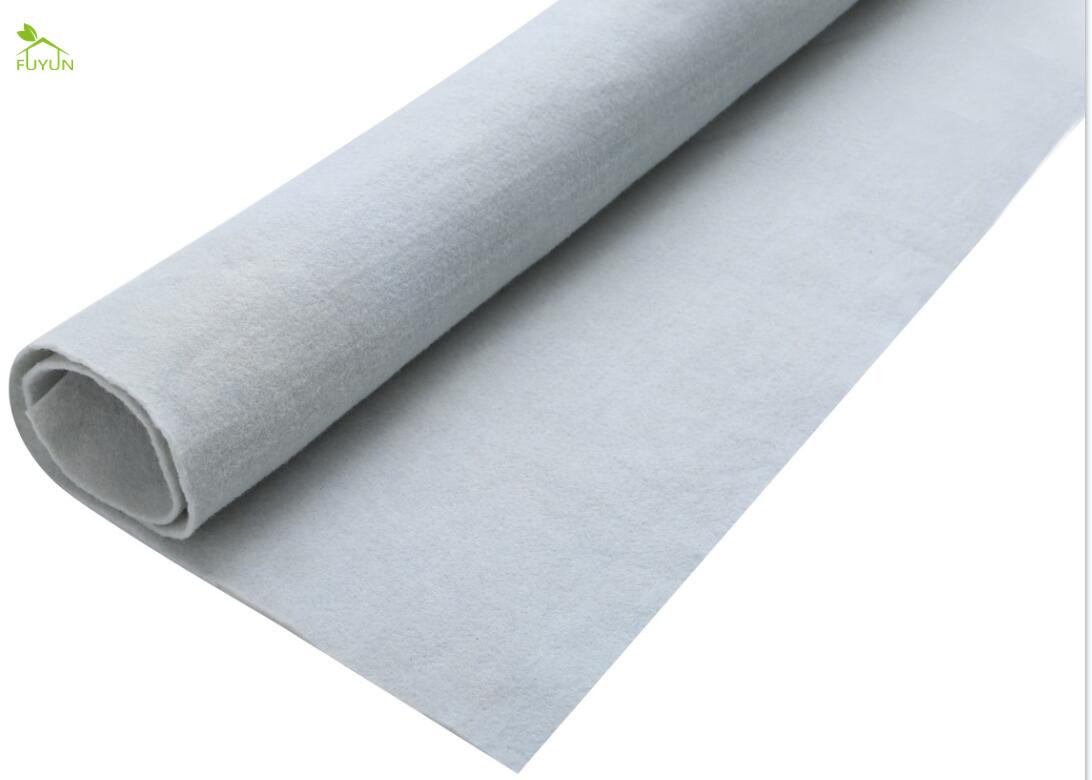

Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament Environment Friendly


Quick Detail:


material: polyester, polypropylene(PET, PP)

function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 6mm
application: tidal reclamation project, coastal, flood dam


Product Description:


Geotextile fabric is a kind of environmentally friendly material with excellent waterproof and anti-seepage performance. It is widely used in various building construction, such as environmental sanitation, water conservancy, municipal engineering, garden, landscape, petrochemical, mining, salt industry, agriculture, aquaculture and many other places.



Geotextile prevents the interception between two adjacent soils.For example, separating fine subsoil soils from lower coarse aggregates preserves the drainage and strength characteristics of geotextile composite materials.



Filtration:

A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.

Perforation and permeability are the most important properties of geotextiles with infiltration action.



Reinforcement:

The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.



Sealing:

A layer of nonwoven geotextile is saturated between existing and new asphalt layers.


Technical Parameters:



No. item type 100 150 200 250 300 350 400 450 500 600 800 note
2 Thickness (mm,≧) 0.9 1.3 1.7 1.9 2.1 2.4 2.7 3 3.3 4.1 5
3 Width Deviation (%) -0.5
4 Breaking Strength (KN/m≧) 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 Horizontal & Vertical
5 Elongation at Break (%) 25-100
6 CBR Bursting Strength (KN) 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
8 Equivalent Aperture O90 (O95) mm 0.07-0.2
9 Vertical Permeability (cm/s) Kx(10-1-10-3) K=1.0*9.9
10 Tear Strength (KN≧ ) 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 Horizontal & Vertical

Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 0


 Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 1
 Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 2

Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 3




Advantage:

  • Nonwoven geotextiles can accommodate irregular deformations
  • Allows rapid drainage
  • Is damage-resistant
  • Can accommodate irregular deformations
  • Lightweight for ease of handling
  • Offers consistency of performance
  • Reduces aggregate wastage

​​​Package:

all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,

3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.


 Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 4


Delivery:

all products will be delivered in time according to the requirement,


Factory Show:

Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 5



Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 6


Why Choose US:

Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 7

FAQ:

Salt Industry 200g/M2 Nonwoven Geotextile Fabric Short Filament 8
