Place of Origin: | Hefei,China |
---|---|
Brand Name: | FUYUN |
Certification: | ISO, GB, CE,BV, EN |
Model Number: | 30-150KN |
Minimum Order Quantity: | 1000 Square Meters |
Price: | USD 0.45-1.0 Square Meter |
Packaging Details: | Woven Bags, 50-100m/roll, Width 1-6m, Customized |
Delivery Time: | 7 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 10000 Square Meters per Day |
Product Name: | Steel Plastic Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Contro | Length: | 50-100m/roll, Customized |
---|---|---|---|
Width: | 1-6m, Customized | Scalation Rate: | Less Than 4% |
Temperature Resistance: | From -100 To 280 ℃ | Package: | Pp Bag, Customized |
Tensile Strength: | 30-150KN/m | Feature: | Temperature Resistance, Anti-static, Light Weight, Long Life |
Certification: | SGS,EN,CE, ISO, GB | Material: | High Molecular Polymer |
High Light: | Erosion Control Geogrid Fabric,150 KN Geogrid Fabric,Erosion Control Fiberglass Geogrid |

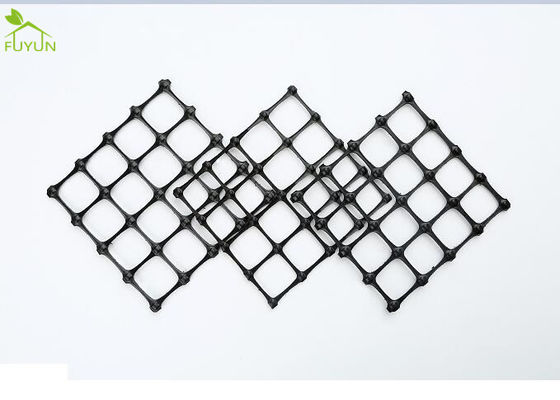

Steel plastic Customized 30-150KN Geogrid Fabric For Retaining Walls Erosion Control
Quick Detail:
material: high molecular polymer
function: reinforce, strengthen road, prevent road cracks
advantage: high temperature resistance, low cold resistance, anti-aging and corrosion resistance
Product Description:
Bi directional geogrid is made of high molecular polymer through extrusion, forming plate, punching process, and then through longitudinal and transverse tension.
The material has great tensile strength in both longitudinal and transverse directions. This kind of structure can also provide a more effective bearing and diffusion of force in the soil, which is suitable for the reinforcement of large area permanent bearing foundation.
It also has high tensile strength and low elongation on both sides of the warp and weft, and has excellent properties such as high temperature resistance, low cold resistance, anti-aging and corrosion resistance.It is widely used in the reinforcement of asphalt pavement, cement pavement and subgrade, railway subgrade, dam slope protection, airport runway, sand control and other projects.
Technical Parameter:
1 | Type | TGDG30-30 | TGDG50-50 | TGDG80-80 | TGDG100-100 | TGDG120-120 | |
2 | Biaxial Ultimate Tensile Strength (KN/m≥) | 30 | 50 | 80 | 100 | 120 | |
3 | Biaxial Ultimate Elongation (%≤) | 3 | 3 | 3 | 3 | 3 | |
4 | Tensile Strength of Elongation at 1% (KN/m≥) | 23 | 36 | 48 | 63 | 81 | |
Application:
It is suitable for the reinforcement of various embankments and road foundations, slope protection, cave wall reinforcement, large airports, car parks, quayside yards and other permanent bearing foundation reinforcement.
1. increase the bearing capacity and extend the service life of the road (foundation).
2. prevent the road (ground) from collapse or cracks, and keep the ground beautiful and neat.
3. Easy to construct, save time and labor, shorten the construction period and reduce maintenance costs.
4. Prevent cracks in culverts.
5. Enhance soil slopes and prevent soil erosion.
6. Reduce the thickness of bedding layer and save cost.
7. Support the stability of slope grass mats to green the environment.
8. Replace metal mesh and used as false roof mesh in underground coal mines.
Advantage:
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Delivery:
Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It can be shipped in 7 days in normal season.
Factory Show:
Supply Ability:
more than 25 tons per day
Why Choose US:
FAQ:
