| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ASTM, ISO, EN, GB, BV |
| Model Number: | TGSG20-20 |
| Minimum Order Quantity: | 2000 Square Meters |
| Price: | USD 0.55-2.35 Square Meter |
| Packaging Details: | Woven Bags, pallet, 50-100m/roll, Width 1-6m, Customized |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 20000 Square Meters per Day |
| Application: | Beach, Retaining Wall, Copper Mining Coal Mining, Dam Slope Protection | Longitudinal Yield Elongation: | Less Than 16% |
|---|---|---|---|
| Temperature Resistance: | From -100 To 270 ℃ | Package: | Woven Bag, Customized |
| Tensile Strength: | 15-150KN/m | Feature: | Temperature Resistance, Anti-static, Light Weight, Long Life |
| Material: | High Molecular Polymer, Fiberglass | Product Name: | Pp Biaxial Earthwork Fiberglass Reinforced Geogrid For Sea Coast Beach Drainage |
| High Light: | Earthwork Pp Biaxial Geogrid,Fiberglass Reinforced Geogrid,Lightweight Fiberglass Geogrid |
||

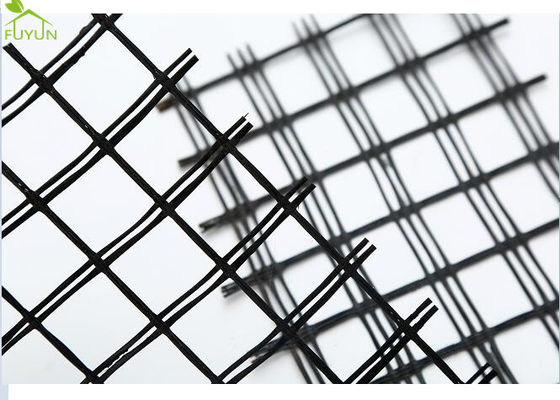

RPp Biaxial Earthwork Fiberglass Reinforced Geogrid For Sea Coast Beach Drainage
Quick Detail:
material: high molecular polymer
function: reinforce, strengthen road, prevent road cracks, drainage
advantage: high temperature resistance, low cold resistance, anti-aging and corrosion resistance
application: copper mining coal mining, dam slope protection, beach
Product Description:
Geogrid is a high performance soil reinforcement product. Geogrid is made with polyester yarns that have a high molecular weight and extraordinary tensile strength. These yarns are then knitted into a dimensionally stable network of apertures to form the geometric grid shape which offers tensile reinforcement to the soil in both the vertical and horizontal directions.Geogrid is coated with a black saturation coating to provide further chemical and mechanical benefits that preserve its durability in any environment.
Technical Parameter:
| item | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Mass per unit area(g/m) | 300+/-30 | 330+/-30 | 400+/-40 | 500+/-50 | 550+/-50 | 550+/-50 |
| width(m) | 2.5 3.0 4.0 5.0 6.0 | |||||
| Longitudinal tensile yield(KN/m≧) | 15 | 20 | 30 | 40 | 45 | 50 |
| Transverse tensile yield(KN/m≧) | 15 | 20 | 30 | 40 | 45 | 50 |
| Longitudinal yield elongation(%≦) | 16 | |||||
| Transverse yield elongation(%≦) | 13 | |||||
| Tensile rate at longitudinal elongation of 2%(KN/m≧) | 5 | 8 | 11 | 13 | 16 | 19 |
| Tensile rate at transverse elongation of 2%(KN/m≧) | 7 | 10 | 13 | 15 | 20 | 24 |
| Tensile rate at longitudinal elongation of 5%(KN/m≧) | 8 | 10 | 15 | 16 | 25 | 27 |
| Tensile rate at transverse elongation of 2%(KN/m≧) | 10 | 13 | 15 | 20 | 22 | 23 |
Application:
(1) Reinforcement of roads, railways and airport roads
(2) Maintenance, reconstruction and widening of old road surface (asphalt road or cement concrete road)
(3) Reduces construction cost, extends service life of roads and prevents deflection cracks.
(4)It is applied in old asphalt cement pavement to reinforce the asphalt surface, and prevent diseases
(5)It is applied in cement pavement to reconstruct composite road surface, and restrain plate shrink to cause reflection crack
(6)It is applied in reconstruction project of road to prevent cracks caused by connection of old and new roads and differential settlement
(7)It is applied in reinforcement of soft earth bed, which is benefit for soft earth to absorb water and fix, restrain settlement effectively, and reinforce the strength of roadbed
(8)The semi-rigid base of new-built road is easy to produce shrinkage crack, fiberglass geogrid can reinforce the crack of the road surface caused by crack reflection.
Advantage:
•High Tear Strength
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting. Geogrid roll is packaging with nude package or woven bags, or Customers' request. Standard roll size: Width 3.95m * Length 50m for loading container.
Delivery:
Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It can be shipped in 7 days in normal season.
Factory Show:
Supply Ability:
more than 25 tons per day
