| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SASO, SONCAP |
| Model Number: | 2.0MM |
| Minimum Order Quantity: | 1000 square meters |
| Price: | USD 3.5-5.5 square meters |
| Packaging Details: | packed in roll with woven bags |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 3000 square meters per Day |
| Thickness: | 2.0mm | Width: | 6m |
|---|---|---|---|
| Length: | 50m/roll | Application: | Petroleum Platform, Landfill, Steep Slope, Chemical Industry, Oil Rig Platform |
| Material: | HDPE,EVA,PVC,polyethylene, LLDPE | Function: | Drainage, Ventilation, Antiseepage, Anti Skid |
| Weight: | 150gsm | Product Name: | Anti Skid Non Slip 2.0mm Thickness Geomembrane Lining For Petroleum Sea Platform |
| High Light: | Geomembrane Fabric Non Skid,2.0mm Thickness Geomembrane Lining,Non Slip Geomembrane Lining |
||
Anti Skid Non Slip 2.0mm Thickness Geomembrane Lining For Petroleum Sea Platform
Quick Detail:
Production Description:
Membrane surface by a special model of the column points pressure roller rolling together, column-point distribution, appearance, improved friction coefficient, And both sides of the membrane surface can be different materials, different colors hot melt into one, In engineering applications according to geological conditions, product engineering requirements set positive and negative. Basis of the production process the products retain excellent mechanical properties and the original resin itself has good elongation and chemical stability, based on a certain percentage of the function by adding additives by melt extrusion, rolling, drawing, etc. reasonable control processing technology enhances the product more tensile, abrasion resistance, puncture resistance.

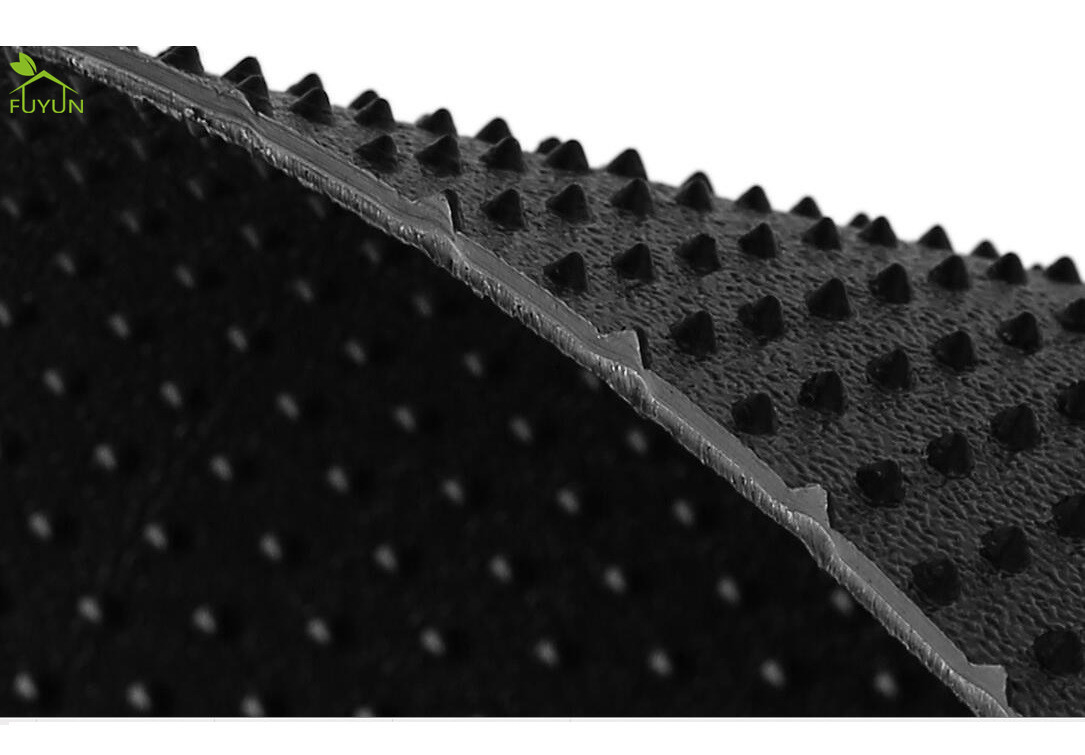

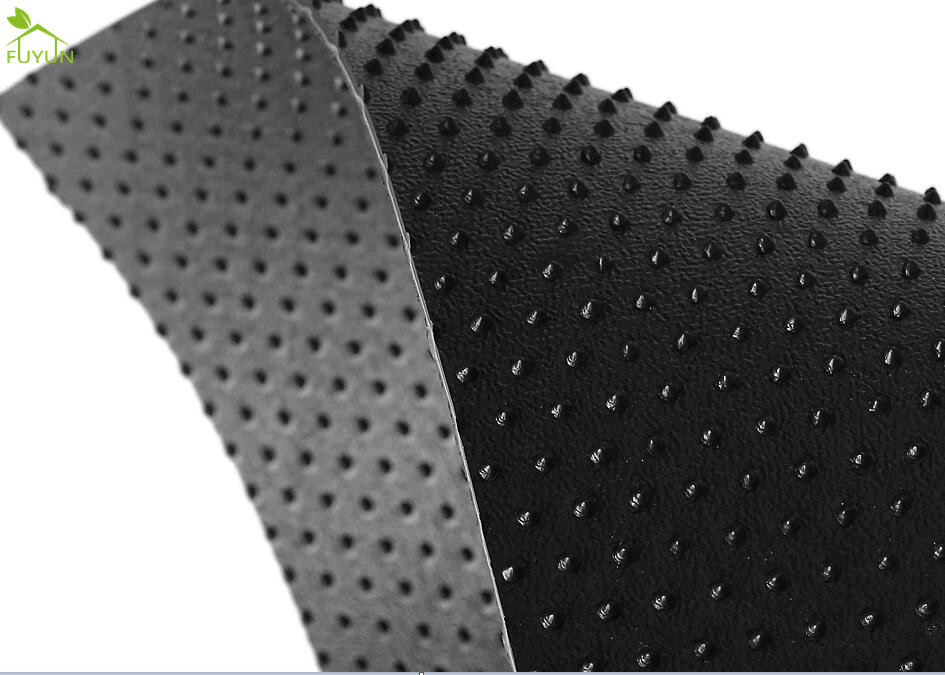

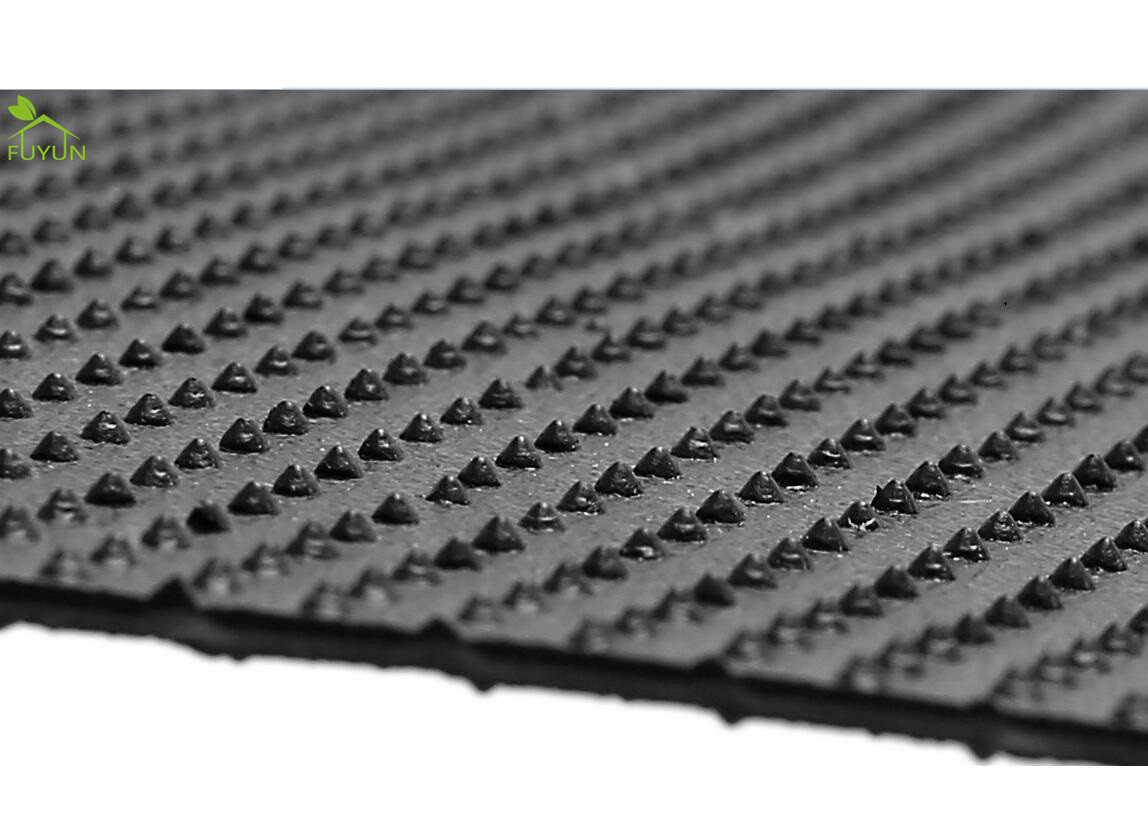

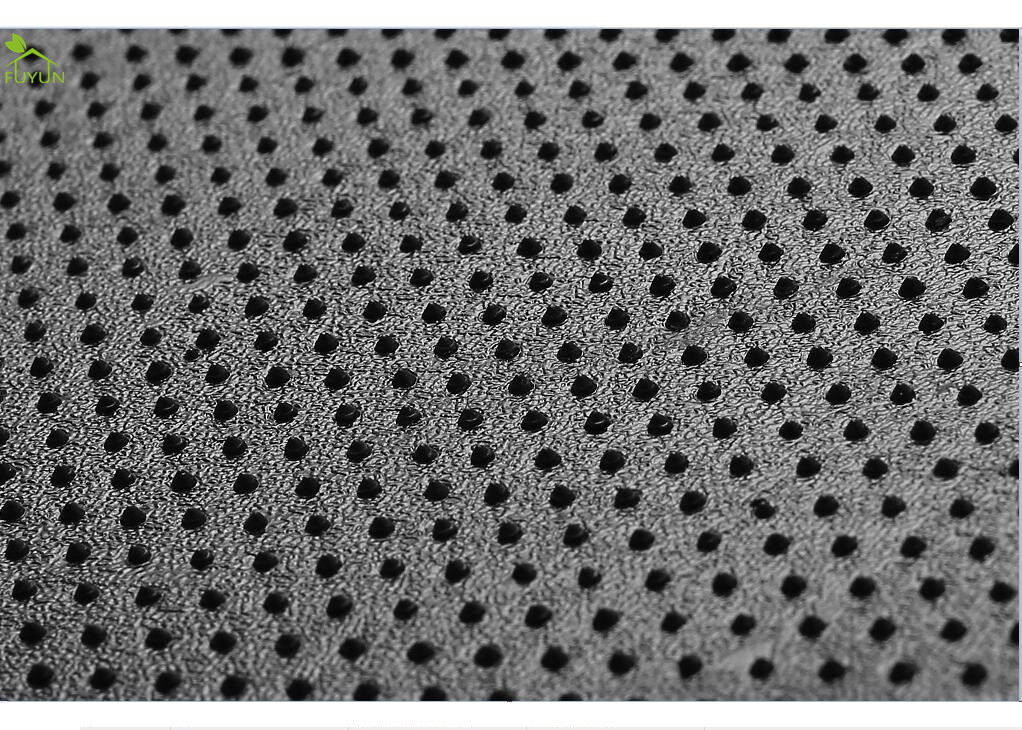

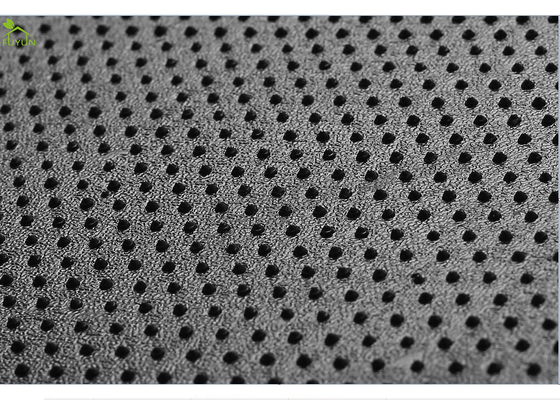

Pillar point geomembrane: A pillar point geomembrane is a geomembrane with uniform raised points on one or both sides. The textured points of the pillar point geomembrane are evenly distributed and beautiful. Column-point geomembrane can also be used in slope anti-seepage projects to achieve anti-seepage, anti-skid, and anti-fouling effects.
Because of the large friction coefficient and good anti-seepage performance of column points geomembrane, textured geomembranes, composite geotextiles, and non-woven fabrics are widely used in landfills, tailings pond bottoms, conditioning treatment pools, dam water conservancy, evaporation ponds, waste landfills, biogas digesters, and other anti-seepage projects.
Specification:
| Item | Properties | Index |
| 1 | Substrate Thickness (mm) | 0.5-2.5 |
| 2 | Height of Supporting Point (mm) | 0.6-0.75 |
| 3 | Tensile Strength (horiz & vet)Mpa | ≧25 |
| 4 | Elongation at Break (horiz & vet) % | ≧550 |
| 5 | Angle Tear Strength (horiz & vet) N/mm | ≧110 |
| 6 | Resistance to Environmental Stress Cracking F20*h | ≧1500 |
| 7 | Carbon Black Content (range) % | 2-3 |
| 8 | Impact Embrittlement at -70℃ | yes |
| 9 | Oxidation Induction Time at 200℃ | 20min |
Application:
1. River Embankment, lake dam,tailing,sawage, reservior, cana,storage ect.
2. Antiseepage of undergroup, basement, tunnel.
3. Antiseepage of subgrade and graund work in salty soil.
4.The antiseepage in plane direction of embankment and dam, the antlseepage intranverse direction of groudwork. canstruction cofferdam, scrap yard.
5. Breeding farm of fresh water and sea water
6. Embankment of road, highway and railway,water proof layer of swelling clay and collapsed loess
7. Water proof of roof top.
Advantage:
Mechanical properties of Geomembrane
To measure the strength of polymeric sheet materials, a variety of mechanical tests have been established. Many have been adopted for use in geomembrane evaluation. They are index versus performance tests, and they reflect both quality control and design.
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
