| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SASO, SONCAP |
| Model Number: | 3.0MM |
| Minimum Order Quantity: | 1000 square meters |
| Price: | USD 3.5-6.5 square meters |
| Packaging Details: | packed in roll with woven bags |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 3000 square meters per Day |
| Thickness: | 3.0mm | Width: | 6m |
|---|---|---|---|
| Length: | 50m/roll | Application: | Landfill, Steep Slope, Chemical Industry, Oil Rig Platform |
| Material: | HDPE,EVA,PVC,polyethylene, LLDPE | Function: | Drainage, Ventilation, Antiseepage, Anti Skid |
| Weight: | 150gsm | Product Name: | Anti Skid 3.0mm Thickness Geomembrane Lining For Oil Storage Tanks |
| High Light: | 3.0mm Thickness Geomembrane Lining,Geomembrane Lining Anti Skid,Oil Storage Tanks Geomembrane Fabric |
||

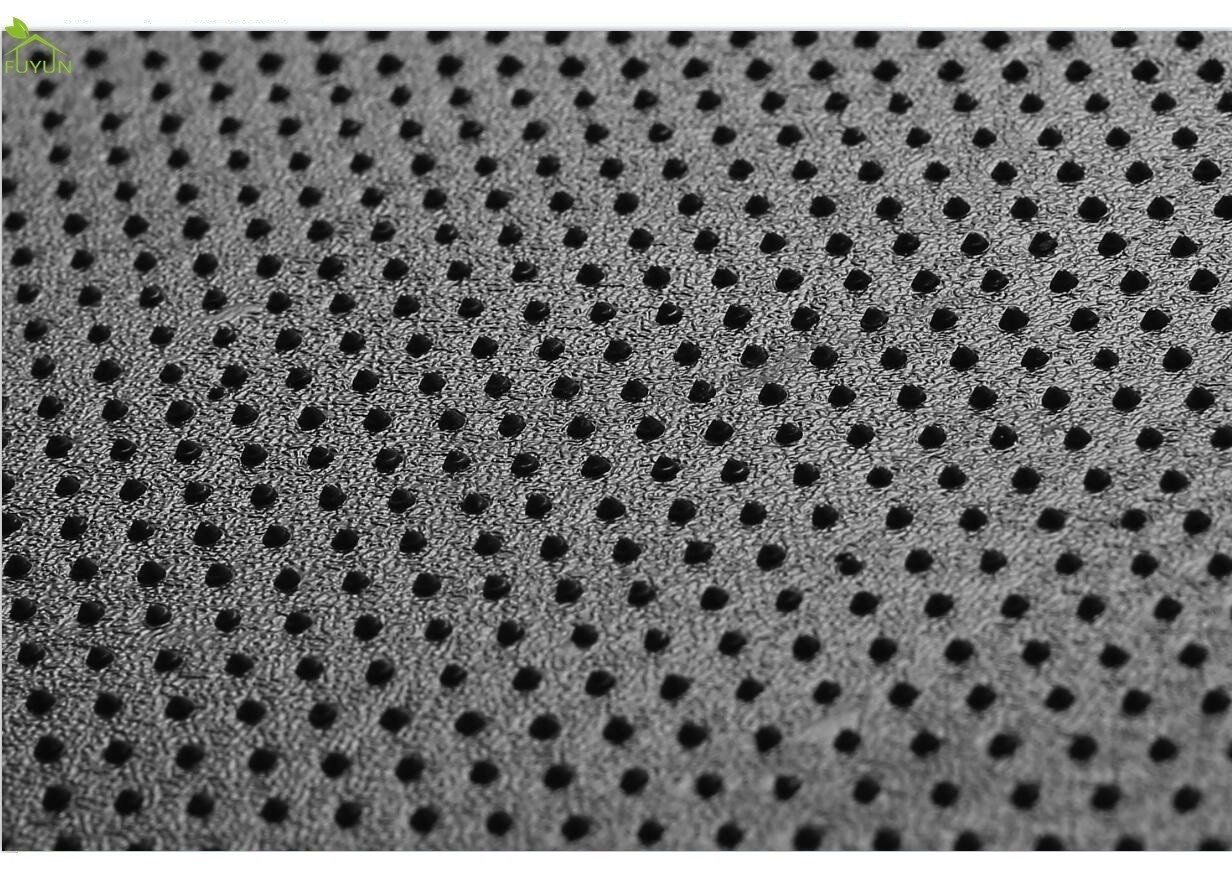

Anti Skid Non Slip 3.0mm Thickness Geomembrane Lining For Oil Storage Tanks
Quick Detail:
Production Description:
Membrane surface by a special model of the column points pressure roller rolling together, column-point distribution, appearance, improved friction coefficient, And both sides of the membrane surface can be different materials, different colors hot melt into one, In engineering applications according to geological conditions, product engineering requirements set positive and negative. Basis of the production process the products retain excellent mechanical properties and the original resin itself has good elongation and chemical stability, based on a certain percentage of the function by adding additives by melt extrusion, rolling, drawing, etc. reasonable control processing technology enhances the product more tensile, abrasion resistance, puncture resistance, The ratio of functional additives added integration features make the product resistant to acid corrosion, microbiological and chemical composition of the product to further improve the mechanical properties of the ordinary process of production than similar non-slip matte geomembrane nearly three times higher.
Specification:
| Item | Properties | Index |
| 1 | Substrate Thickness (mm) | 0.5-2.5 |
| 2 | Height of Supporting Point (mm) | 0.6-0.75 |
| 3 | Tensile Strength (horiz & vet)Mpa | ≧25 |
| 4 | Elongation at Break (horiz & vet) % | ≧550 |
| 5 | Angle Tear Strength (horiz & vet) N/mm | ≧110 |
| 6 | Resistance to Environmental Stress Cracking F20*h | ≧1500 |
| 7 | Carbon Black Content (range) % | 2-3 |
| 8 | Impact Embrittlement at -70℃ | yes |
| 9 | Oxidation Induction Time at 200℃ | 20min |
Application:
1. River Embankment, lake dam,tailing,sawage, reservior, cana,storage ect.
2. Antiseepage of undergroup, basement, tunnel.
3. Antiseepage of subgrade and graund work in salty soil.
4. The antiseepage in plane direction of embankment and dam, the antlseepage intranverse direction of groudwork. canstruction cofferdam, scrap yard.
5. Breeding farm of fresh water and sea water
6. Embankment of road, highway and railway,water proof layer of swelling clay and collapsed loess
7. Water proof of roof top.
Advantage:
Mechanical properties of Geomembrane
To measure the strength of polymeric sheet materials, a variety of mechanical tests have been established. Many have been adopted for use in geomembrane evaluation. They are index versus performance tests, and they reflect both quality control and design.
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Factory Show:
Why Choose us?
FAQ:
